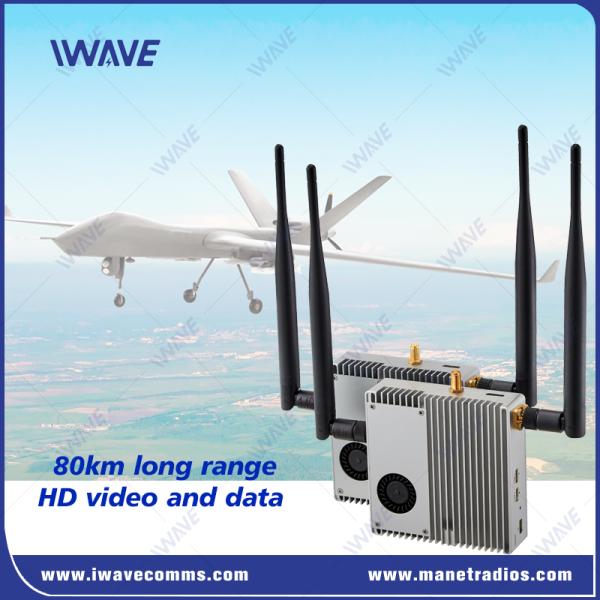

800Mhz And 1.4Ghz Long Range Video And Control Data Transmitter For UAV
800Mhz And 1.4Ghz Long Range Video And Control Data Transmitter For UAV
800Mhz And 1.4Ghz Long Range Video And Control Data Transmitter For UAV
800Mhz And 1.4Ghz Long Range Video And Control Data Transmitter For UAV
Specifications
Brand Name :
IWAVE
Model Number :
FMS-8480
Place of Origin :
CHINA
MOQ :
1SET
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
1SET
Delivery Time :
14-21DAYS
Packaging Details :
Standard exporting package
Frequency :
800Mhz/1.4Ghz
Video Input :
HDMI/SDI/IP
Latency :
50ms/40ms
modulation :
QPSK
Security :
AES128
Transmit Range :
80KM
Operating Temperature :
-40°C ~ 85°C
Bandwidth :
2/4/8MHz
Description

800Mhz And 1.4Ghz Long Range Video And Control Data Transmitter For UAV

The FMS-8480 drone video downlink system provides a complete aerial video transmission solution, enabling real-time surveillance to support law enforcement, emergency response, and critical infrastructure monitoring.

This system features a fully integrated setup of downlink transmitters, receivers, and antennas, ensuring stable high-definition video streaming from UAV, helicopters, and other aircraft.

Additionally, the FMS-8480 supports full-duplex serial control data, allowing ground-based pilots to simultaneously manage flight operations and gimbal positioning.


Frequency Option

  • 800Mhz
  • 1.4Ghz
  • FMS-8480 drone long range video transmitter uses the 806 to 826Mhz and 1428-1448Mhz frequency range to avoid interfering with aircraft control systems, which are usually 2.4 GHz

Key Features

  • Ultra-lightweight onboard unit: Just 250g (8.8 oz)

  • Multi-interface support:

    • Video input: HDMI, SDI, Ethernet

    • Control channel: Serial data (MAVLINK-compatible)

  • Latency: End to end 50ms for 1080P30 video
  • End to end 40ms for 720P60 video
  • Up to 80km range (LoS )
  • 1*LAN Port: TCPIP/UDP
  • 2* Serial Ports: Bi-directional Data Transmission
  • 2* Antennas: Dual Tx antenna and Dual Rx antenna


Application:

  • FMS-8480 is a fully integrated, long range microwave transmitter, based on aircraft industry standards for ruggedness, size, and weight. Highly efficient H.264/ FPGA Encoding.
  • FMS-8480 components include transmitter, receiver and antennas. It supports IP Camera, hdmi camera and SDI camera to access and control the flight and gimbal via TTL(3.3V) at same time for 80km. As shown in the following diagram:


800Mhz And 1.4Ghz Long Range Video And Control Data Transmitter For UAV


Specification

Frequency

800Mhz: 806~826MHz

1.4Ghz: 1428~1448MHz

AntI-interference

Automatical Frequency Hopping

Bandwidth

8Mhz

RF Power

4Watts

Range

80km Air to ground

Data Rate

6Mbps (shared by video, Ethernet and serial data)

The best video stream: 2.5Mbps

Baud Rate

115200

Rx Sensitivity

-104dbm

Wireless Fault Tolerance Algorithm

Wireless baseband FEC forward error correction/video codec super error correction

Latency

Total Latency for encoding + transmitting + decoding

720P/60 <50 ms

720P/30 <40 ms

1080P/60 <80ms

1080P/30 <50ms

Link Rebuild Time

<1s

Modulation

Uplink QPSK/Downlink QPSK

Video Compression Format

H.264

Video Color Space

4:2:0 (Option 4:2:2)

Encryption

AES128

Start Time

15s

Power

DC-12V (7～18V)

Interface

Interfaces on Tx and Rx are same

  • 1*Video input/Output: Mini HDMI
  • 1*Video input/Output: SMA(SDI)
  • 1*Power Input Interface
  • 2*Antenna Interface: SMA
  • 2*Serial (TTL3.3V)
  • 1*Ethernet(100Mbps)

Indicators
  • Power
  • Wireless Link Status Indicator

Power Consumption
  • Tx: 28W(Max)
  • Rx: 18W

Temperature
  • Working: -40 ~+ 85℃
  • Storage: -55 ~+100℃

Dimension

Tx/Rx: 93*93*25.8mm(not include SMA & Power plug)

Weight

Tx/Rx: 250g

Metal Case Design

CNC Craft

Double Aluminum Alloy Shell

Conductive Anodizing Craft
