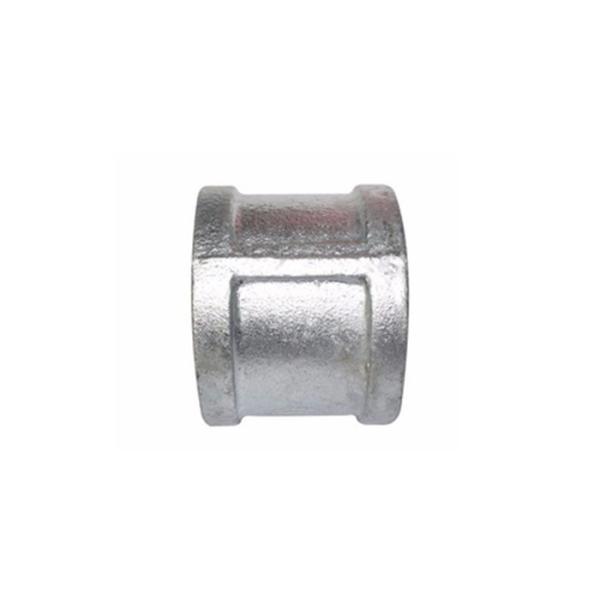

3/8 Inch NPT Fire Fighting Pipe Fittings , Spigot Socket Fittings Ansi Standard
3/8 Inch NPT Fire Fighting Pipe Fittings , Spigot Socket Fittings Ansi Standard
3/8 Inch NPT Fire Fighting Pipe Fittings , Spigot Socket Fittings Ansi Standard
3/8 Inch NPT Fire Fighting Pipe Fittings , Spigot Socket Fittings Ansi Standard
3/8 Inch NPT Fire Fighting Pipe Fittings , Spigot Socket Fittings Ansi Standard
3/8 Inch NPT Fire Fighting Pipe Fittings , Spigot Socket Fittings Ansi Standard
Specifications
Brand Name :
kanaifu
Model Number :
malleable iron fitting NPT female socket
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Color :
Galvanized & black
Meterial :
Malleable iron
Technics :
Casting
Size :
3/8 inch
Standard :
ANSI,BS,DIN
Head Code :
Square
Surface treatment :
Hot Galvanized
Type :
3/8 inch malleable iron fitting NPT female socket
Description

Malleable Iron Fitting NPT Male Female Socket With Ansi Standard

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4
mm 6 8 10 15 20 25 32
Dim.
(mm)		 A 24.2 26.9 29.5 34.0 38.6 42.4 49.0
Size Inch 11/2 2 21/2 3 4 5 6
mm 40 50 65 80 100 125 150
Dim.
(mm)		 A 54.6 64.3 73.2 80.8 93.7 95 105

Some detail information about malleable iron fitting NPT female socket

Outlet size of malleable iron fitting NPT female socket is from 1/8”~6”.

Good toughness and long using life.

There is no any sand hole on surface .

Avg thickness zinc coating is more superior comparing with ASME, EN, and BS, DIN and so on .

The equipments from DISA Denmark, DJ AMF Japan, SINTOKOGIO Japan widely used in product line, ensures the stability of product quality.

In iron, the basic building blocks are the individual atoms of Fe. The grains are called crystals and they are made up of atoms. All of the atoms are uniformly arranged in layers. If lines are drawn connecting the centres of the atoms, a three-dimensional array of little cubes stacked together to fill space is generated. At room temperature, the cubes have an atom at each of the eight corners and one atom right in the middle of the cube. This crystal structure is called a body-centered cubic (bcc) structure, and the geometric arrangement of atoms is often called a bcc lattice. The crystal lattice can be envisioned as three sets of intersecting planes of atoms, with each plane set parallel to one face of the cube. Iron with a bcc structure is called ferrite.

Graphical represented of data of malleable iron fitting NPT female socket

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

3/8 Inch NPT Fire Fighting Pipe Fittings , Spigot Socket Fittings Ansi Standard
