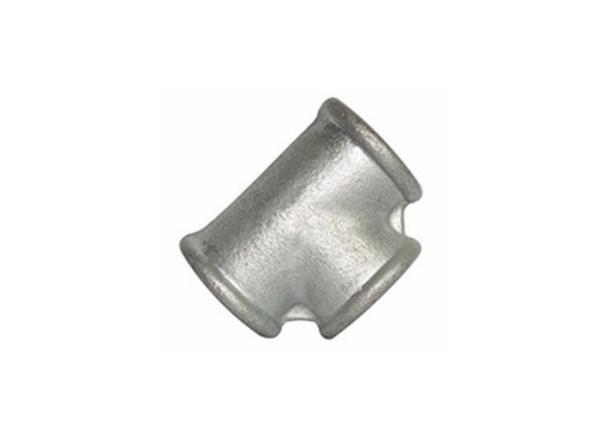

Galvanized Black Banded Malleable Iron Threaded Pipe Fittings of 130r Tees Reducing
Galvanized Black Banded Malleable Iron Threaded Pipe Fittings of 130r Tees Reducing
Galvanized Black Banded Malleable Iron Threaded Pipe Fittings of 130r Tees Reducing
Galvanized Black Banded Malleable Iron Threaded Pipe Fittings of 130r Tees Reducing
Galvanized Black Banded Malleable Iron Threaded Pipe Fittings of 130r Tees Reducing
Galvanized Black Banded Malleable Iron Threaded Pipe Fittings of 130r Tees Reducing
Specifications
Brand Name :
leyon
Model Number :
Tees Banded
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Specification :
Elbow, socket, Tee, Union, Bushing, Plug
Item :
Tees Banded
Application :
Steam, air, gas and oil pipes
Technics :
sophisticated metallurgical
Standard :
Casting
Size :
3/8 inch Tees Banded
Dimensions :
10 mm
Description

Tees Banded Malleable Iron Pipe Fittings equal 90 tees with spectrum analyse

Leyon is 30 years old , apply itself to furnish Tees Banded ,in the world in Tees Banded area. Leyon could provide professional aids for outstanding projects amid extra construction condition. After cooperating with world top company on high-end products application.

Graphical represented :

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
mm 6 8 10 15 20 25 32 40
Dim.
(mm)		 A 17.5 20.6 24.1 28.5 33.3 38.1 44.5 49.3
Size Inch 2 21/2 3 4 5 6 8
mm 50 65 80 100 125 150 200
Dim.
(mm)		 A 57.2 68.6 78.2 96.3 114.3 130.3 162

Technical data :

· Material: malleable iron

· Technics: casing

· Type: Tees Banded

· Connection:male&female

· Head Shape: Equal

· Code: Round

· size:1/8"-8"

· Standard: ANSI, BS, DIN

· Packing: wooden cases or as customers' demands

· surfacetreatment:painting galvaized or as customers' demands

1.What's processing controls for Tees Banded:

Malleable iron pipe fitting tee is made with most sophisticated metallurgical and processing controls available

2.Spectrum analyse :

We using spectrum analyse to check the cast iron sample ‘s quality

3. Tees Banded's strict annealing process:

The improving of material physical properties rely on strict annealing process

4.The range :

Outlet range of Tees Banded is from 1/8”~8”

Interpolation table of Tees Banded
Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details

 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

A&Q

A. Why reducing ?

Q.Air tightness test applied on every tee, to ensure there is no leakage

A.How control ?

Q.Strictly control the size of the thread, to ensure accuracy

Galvanized Black Banded Malleable Iron Threaded Pipe Fittings of 130r Tees Reducing
