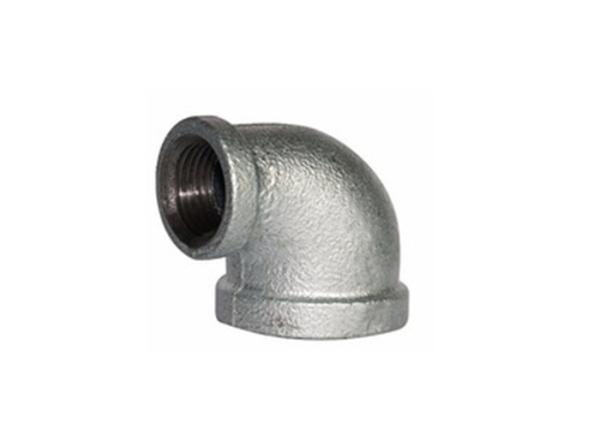

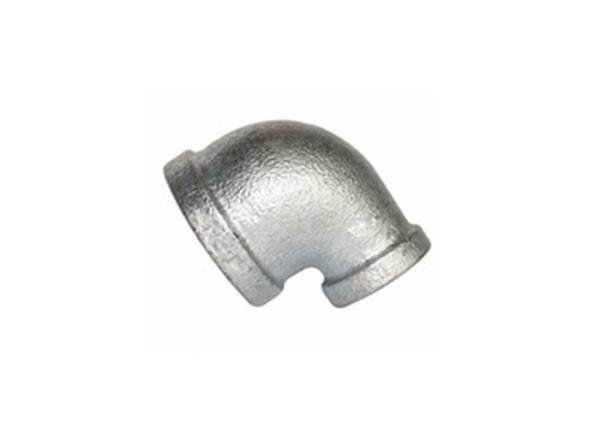

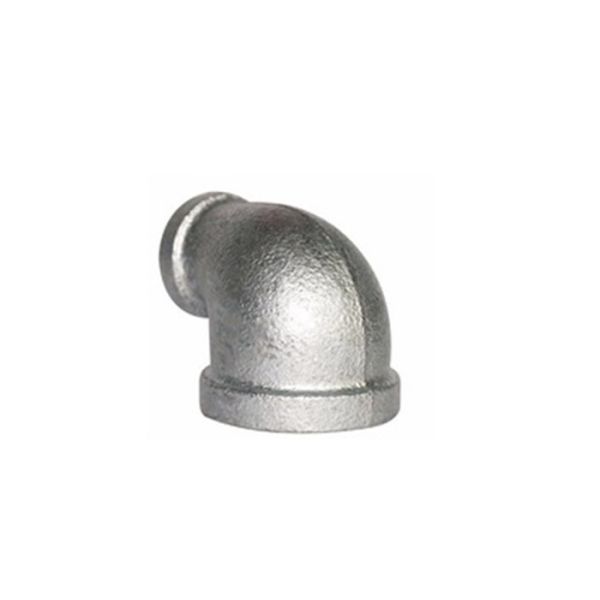

Strong Malleable Iron Elbow , Male Female Threaded Elbow FM UL Certificated
Strong Malleable Iron Elbow , Male Female Threaded Elbow FM UL Certificated
Strong Malleable Iron Elbow , Male Female Threaded Elbow FM UL Certificated
Strong Malleable Iron Elbow , Male Female Threaded Elbow FM UL Certificated
Strong Malleable Iron Elbow , Male Female Threaded Elbow FM UL Certificated
Strong Malleable Iron Elbow , Male Female Threaded Elbow FM UL Certificated
Specifications
Brand Name :
leyon
Model Number :
OEM 90 Degree Elbow Galvanized Fitting
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Color :
Galvanized & black
Technics :
Casting
Standard :
ANSI,BS,DIN
Dimension :
36mm
Head Code :
Square
Type :
90 Degree Elbow Galvanized Fitting
Description

Attached table of 90 Degree Elbow Galvanized Fitting

Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
mm 10X8 15X8 15X10 20X10 20X15
Dim.
(mm)		 A 23 26 26 28 30
B 23 26 26 28 31
Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
mm 25X15 25X20 32X15 32X20 32x25
Dim.
(mm)		 A 32 35 34 36 40
B 34 36 38 41 42

Male Female 90 Degree Elbow Galvanized Malleable Iron Pipe Fitting

we use spectrometer from Oxford Instruments to check the material's quality

As the quality of raw material is the source of product quality, we use dense, strength, unpunched steel offcut to produce our products.

Thread and angle are inspected by professional angle gauge, to ensure accuracy.

Outlet size of pipe fitting is from 1/8”to 8” .

State of the art equipments with automatic production line, making high-quality products efficiently.

The spectrometer of Oxford Instruments we bought for analyzing the quality of malleable iron samples.

Reference list of 90 Degree Elbow Galvanized Fitting

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details

 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

Where do you use the malleable cast iron pipe fittings ?

we use malleable cast iron pipe fittings in lots of place as following :

  • Fire pipe installation
  • Gas pipeline installation
  • Central air conditioning pipeline installation
  • Other machinery and equipment installation
