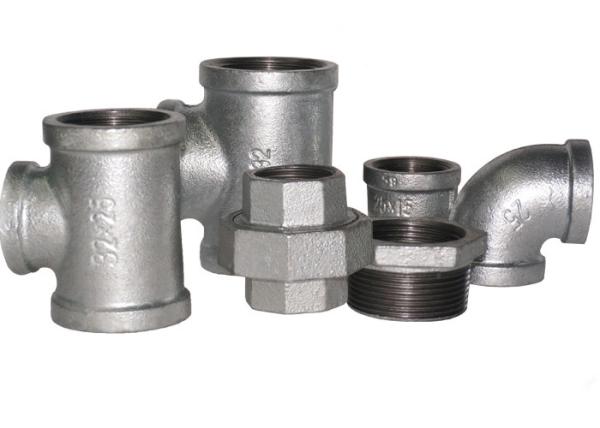

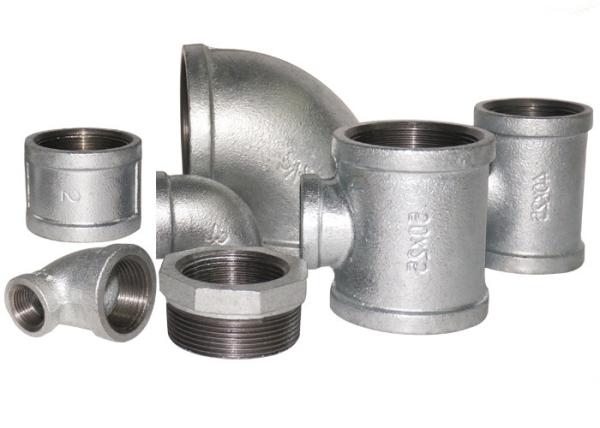

Hot Dipped Galvanized Pipe Fitting Banded NPT Threads 1/2 Malleable Iron Tee
Hot Dipped Galvanized Pipe Fitting Banded NPT Threads 1/2 Malleable Iron Tee
Hot Dipped Galvanized Pipe Fitting Banded NPT Threads 1/2 Malleable Iron Tee
Hot Dipped Galvanized Pipe Fitting Banded NPT Threads 1/2 Malleable Iron Tee
Hot Dipped Galvanized Pipe Fitting Banded NPT Threads 1/2 Malleable Iron Tee
Hot Dipped Galvanized Pipe Fitting Banded NPT Threads 1/2 Malleable Iron Tee
Specifications
Brand Name :
leyon
Model Number :
malleable iron pipe fittings09
Certification :
FM, UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
D/A, D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
9000tons/year
Delivery Time :
25-35days
Packaging Details :
carton
product name :
pipe fittings
name :
malleable iron tee
item :
malleable elbow
Application :
Suitable for water ,steam ,air ,gas,oil etc
size :
1/8"-6"
thread :
NPT
Description

DIN standard malleable iron pipe fittings malleable iron union malleable elbow

Details for malleable elbow

1. excellent raw materials
2. leakage test one by one
3. precise angles
4. good antirust property
5. strong package

6. malleable iron pipe fitting elbow is made with most sophisticated

metallurgical and processing controls available.

7. cast iron samples are continuously analyzed by

using spectroscopy to conform the material quality

8. Variety of chemical analysis is controlled strictly up to standard.

9.We use a close-grained, high strength, non-porous iron to produce the final casting.

Because of quality iron is the start point of producing superior-quality pipe fitting.

10.Accurate threads are processed that comply with the precise standards,

such as ASME, EU, BS, DIN, etc.

The threads have an accurate structure,

so the thread length and straightness to allow them to easily engage threaded pipe.

11. The pipe fittings have outlets ranging from 1/8” through 6”

12. Good toughness with long working life.

13. smooth surface without any sand hole


Characteristics of malleable elbow

Material Malleable iron
Standard Thread: ISO 7/1
Dimension: ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded wihtout ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

Hot Dipped Galvanized Pipe Fitting Banded NPT Threads 1/2

Product tags

malleable iron pipe connection

,

banded malleable iron pipe fittings

,

malleable iron pipe fitting
