Unmatched Safety:
- Self-locking and auto-recognition rotors prevent risks from improperinstallation or misuse.
- A triple-layered, reinforced chamber protects against operational haazards
- Fixed-angle rotors feature a leak-containment design to secure spilled samples and avoid cross contamination.
- A standard HEPA filter ensures all exhaust air is purified of aelrosols

Diverse Rotor Options:
- Versatile Rotors: Horizontal, fixed-angle, and continuous-flow rotors for diverse applications.
- Carbon Fiber Innovation: Lightweight, fatigue-resistant, and durable. Achieves 17,000 × g with 6x1000mL loads.
- High-Strength Titanium: Supports 8x50mL (100,000 × g) and 6x50mL (110,000 × g) configurations.
Intelligent Control System
- Features both routine centrifugation and ACE integral modes, witth ACE technology ensuring consistent results across runs
- Includes a built-in rotor calculator for quick conversion of speed and thime between different rotors
- Operates via a durable 7-inch touchscreen that supports gloveduse, offering intuitive operation with high clarity in a fully button-free interface
- Supports GMP/GLP compliance with a built-in audit trail and seamless USB export of complete centrifugation data records

Effortless Convenience

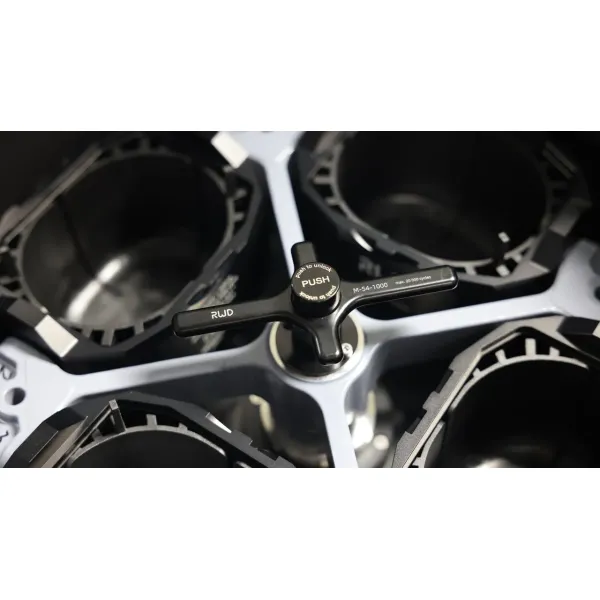

- Tool-free, push-button rotor locking enables secure installationand changes within 3 seconds.
- Three door-opening options, including innovative hands-free foot sensor operation.
- An adaptive vacuum system can engage either pre-centrifugation or after reaching set speed.
- Multi-layer sound insulation ensures quiet operation (<59 dBA)for a peaceful lab environment.

Applications
MX30R delivers efficient, reliable, and user-friendly centrifugation solutions for scientific research and bioprocessing.
- Biological Research & Pharmaceutical Development: From large-volume culture harvesting to high-speed, small-volume protein/antibody purification for complete R&D workflows
- Cell Biology, Molecular Biology & Proteomics: Precipitation and separation of proteins, exosomes, nucleic acids (DNA/RNA), and subcellular organelles; density gradient centrifugation
- Virology & Nanotechnology: High-speed pelleting of viruses, viral particles, and nanoparticles using rotors reaching 31,000 rpm.
- Production Bioprocessing: Scale-up from research to production for harvest and clarification using large-capacity rotors.
- Diagnostics & Clinical Biochemistry: Clinical blood separation with rotors compatible with blood collection tube adapters.
Specifications
| Item |
Specification |
| Model |

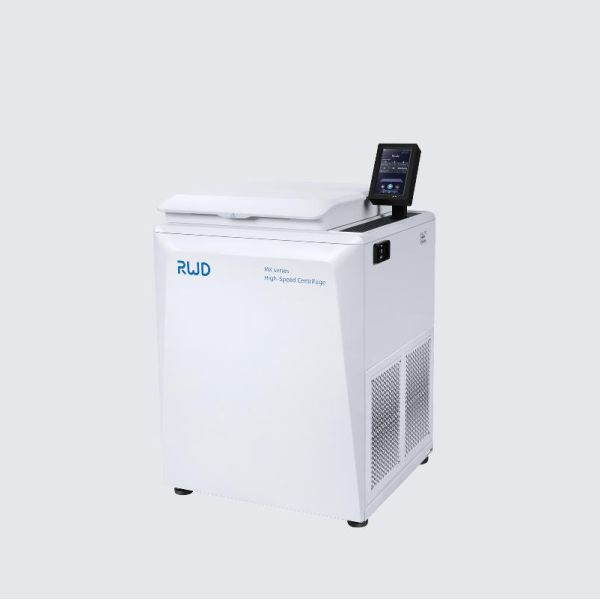

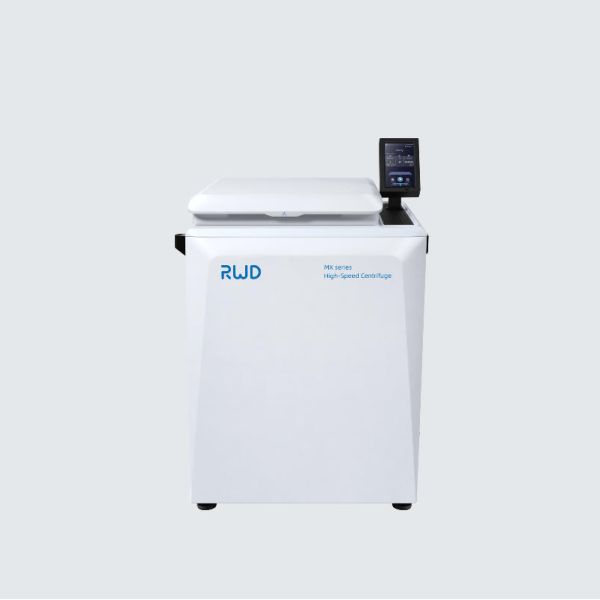

MX30R High-Speed Refrigerated Centrifuge |
| Max. RCF (×g) |
110,000×g (MX-F6-50Ti) |
| Max. Speed (rpm) |
31,000 rpm |
| Max. Capacity |
6×1000mL (MX-F6-1000CF) |
| Rotor Recognition |
Instant automatic identification |
| Rotor Locking |
Self-locking |
| Vacuum System |
Intelligent vacuum extraction |
| Display |
7-inch full-color touch screen, 800×480px resolution |
| Temperature Range |
-20°C to +40°C |
| Temperature Accuracy |
±2°C |
| Acceleration/Deceleration |
12 acceleration / 13 deceleration rate selections |
| Speed Control Accuracy |
±25 rpm |
| Program Storage |
1000 run programs |
| Noise Level |
<59dB(A) |
| Dimensions (W×D×H) |
950mm×680mm×670mm |
| Weight (without rotor) |
300kg |
Order Information
| Name |
Model |
Capacity (mL) |
Max Speed (rpm) |
| High-Speed Refrigerated Centrifuge |
MX30R |
6×1000 |
31,000 |
| MX-S4-1000 Swing-out Rotor |
MX-S4-1000-P |
4×1000 |
5,500 |

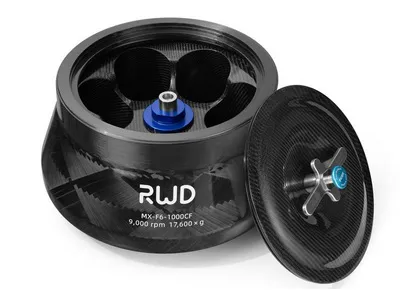

| MX-F6-1000CF Carbon Fiber Rotor |
MX-F6-1000CF |
6×1000 |
9,000 |
| MX-F6-50Ti Titanium Alloy Rotor |
MX-F6-50Ti |
6×50 |
31,000 |
| MX-F8-50Ti Titanium Alloy Rotor |
MX-F8-50Ti |
8×50 |
30,000 |
| MX-F8-50 Aluminum Alloy Rotor |
MX-F8-50 |
8×50 |
27,000 |
| MX-F6-500CF Carbon Fiber Rotor |
MX-F6-500CF |
6×500 |
12,000 |
| MX-F6-100CF Carbon Fiber Rotor |
MX-F6-100CF |
6×100 |
23,500 |
| MX-F12-50CF Carbon Fiber Rotor |
MX-F12-50CF |
12×50 |
20,000 |
| MX-F48-2CF Carbon Fiber Rotor |
MX-F48-2CF |
48×2 |
23,000 |
| MX-CF20 Continuous Flow Rotor |
MX-CF20 |
1350 |
20,000 |
