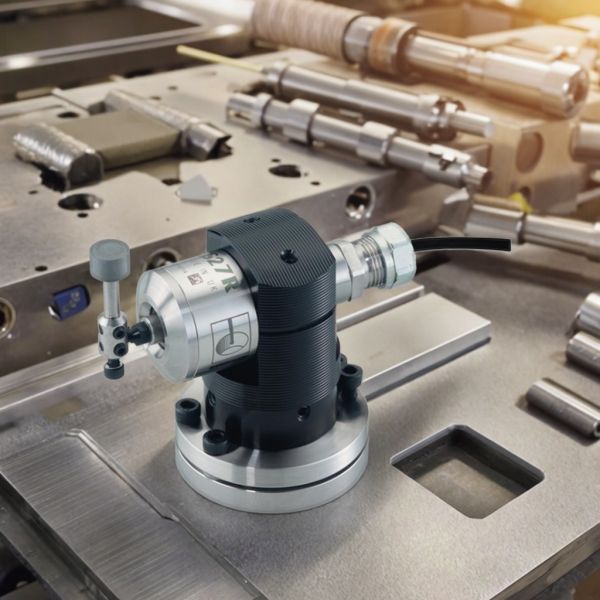

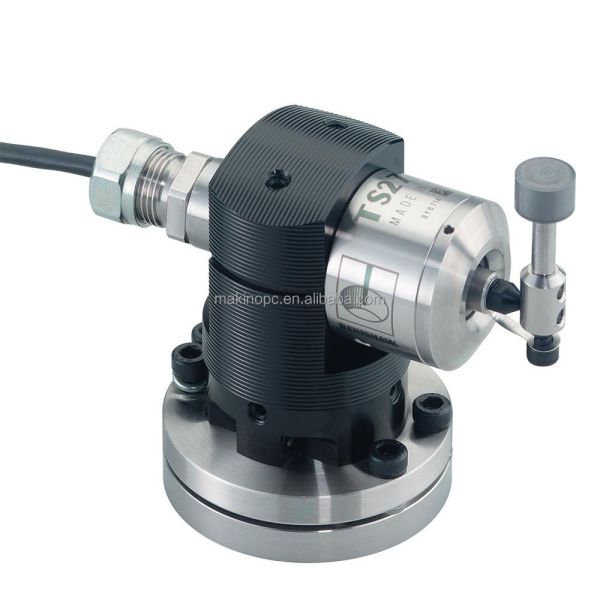

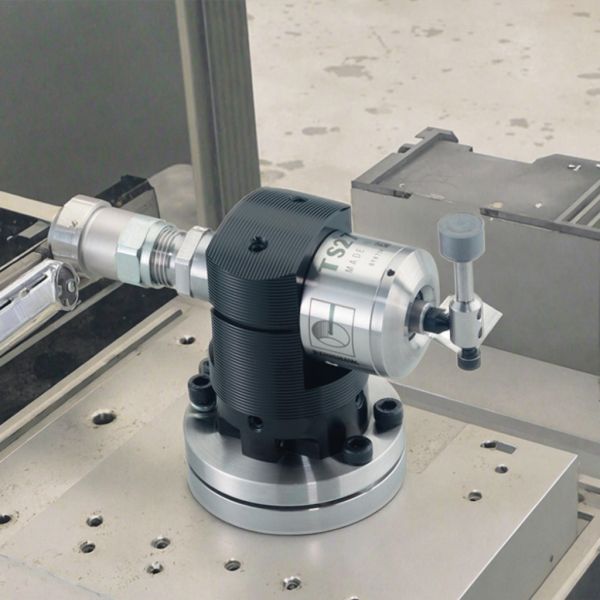

Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Specifications
Transmission Mode :
Hardwire connection transmission
Price :
$1,225-1,239 / piece
Place of Origin :
Guangdong, China
Output Mode :
normally open
weight (kg) :
2
machinery test report :
Not Available
warranty :
1 Year
Repeatability :
0.001mm (condition: operating speed 50-200mm/min)
Contact strength :
XY plane 0.4N-0.8N, Z direction 5.8N (depending on sensing direction)
video outgoing-inspection :
Provided
Measuring direction :
±X,±Y, +Z
Contact part material :
Super hard alloy
Stroke :
XY plane 12.5°, 2-way 6.35mm
Contact life :
>10 million times
MOQ :
1 piece
Contact Diameter :
14-20mm
Surface treatment :
Grinding 4S mirror
Brand Name :
Renishaw
Machine Type :
Milling Machine, turning machine, lathe machine
Description

Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers

Renishaw TS27R Contact Tool Setting Probe - RBE. Compact 3D touch-trigger tool setter with hard-wired signal transmission used for broken tool detection and rapid measurement of tool length and diameter on a wide range of tools.
Products Description

Brief Introduction

The TS27R is a tool setter for vertical machining centers that enables the user to set both tool length and diameter of rotating tools, and to carry out broken tool detection.
Product Paramenters
Product Name
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter
Product Model
MS27R
Output Mode
normally open
Transmission Mode
Hardwire connection transmission
Contact Diameter
14-20mm
Measuring direction
±X,±Y, +Z
Contact part material
Super hard alloy
Surface treatment
Grinding 4S mirror
Repeatability
0.001mm (condition: operating speed 50-200mm/min)
Contact life
>10 million times
Contact strength
XY plane 0.4N-0.8N, Z direction 5.8N (depending on sensing direction)
Protection structure
IP68
Stroke
XY plane 12.5°, 2-way 6.35mm
Pre-travel
None
Contact rating
DC24V~20mA(MAX) Recommended value 10mA Resistance load
Power supply
12-30VDC
Cable specification
Standard 5m (6.0mm diameter, 4 core shielded cable)
Protection Tube
2m
Precautions
Be sure to use it within the rated power range. (12-30VDC) Mounting base requires grounding protection or shielding.
Details Images
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Company Profile
Founded in 2014, Shenzhen Makinopc Precision Control Electromechanical Co., Ltd. is a high-tech enterprise focusing on the production, design, research and development and sales of CNC machine tool accessories. Our main products include probes, tool setters, electronic handwheels, wave switches, sensors, oilers and related products. Meanwhile, we provide macro program system, installation, online technical support and one-stop solution for automation machine tool equipment accessories. The factory is located in Shenzhen, Guangdong, China, a short distance from Baoan International Airport and sea port, covering an area of 3000 square metres. There are 50 production staff, 10 technicians, three production lines, 6 test equipment and 2 warehouses. Due to fast production and delivery, we can meet different production and order demands. Urgent orders are processed with priority. Customer satisfaction is guaranteed. For more than ten years, based on stable and reliable quality, our brand Makinopc products are widely used in various brands of CNC machine systems and PLC devices, including fanuc, , mitsubishi, fagor, heidenhain, syntec, hanuc, gsk, knd, lokshun, delta, etc. The product applications include all kinds of CNC machining centres, engraving machines, milling machines, drilling machines, EDM machines, milling machines, lathes and so on. "Customer first, honesty first" is our business philosophy. So far, our products have been exported to Europe, America, the Middle East, Southeast Asia and other countries and regions, and won a lot of praise and recognition. Welcome to visit our factory and discuss the details for win-win co-operation.
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Renishaw TS27R Wired 3D Touch-Trigger Tool Setter for Machining Centers
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
