Specifications
Props Breakage Detection :
0.2mm
MOQ :
1 piece
Transmission Type :
Hardwired connection for transmission
Supply Voltage :
11Vdc to 30Vde
Weight :
750g (including 10m cable)
Supply Current :
65mA at 12Vdc; 42mA at 24Vdc
Brand Name :
Renishaw
Price :
$1,698-1,798 / piece
Product Name :
Renishaw single-sided laser tool setting probe
weight (kg) :
1.5
machinery test report :
Not Available
Place of Origin :
Guangdong, China
Size :
H*W*D(83*38*73mm)
Detection Distance :
TRS2 adjustable between 300mm and 2m, factory set at 350mm
Installation :
Supplied with mounting bracket with M6 (2) slotted holes
Machine Type :
Milling Machine, lathe machine, CNC Machining Center
Product Model :
TRS2S-350
video outgoing-inspection :
Provided
warranty :
1 Year
Description
Products Description

Brief Introduction

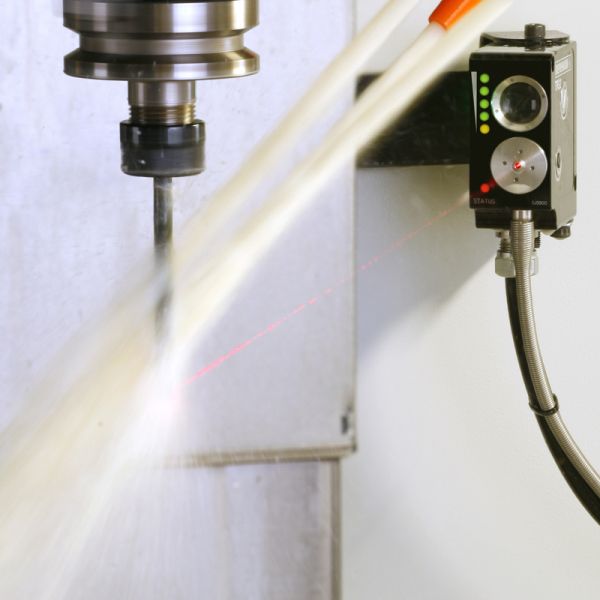

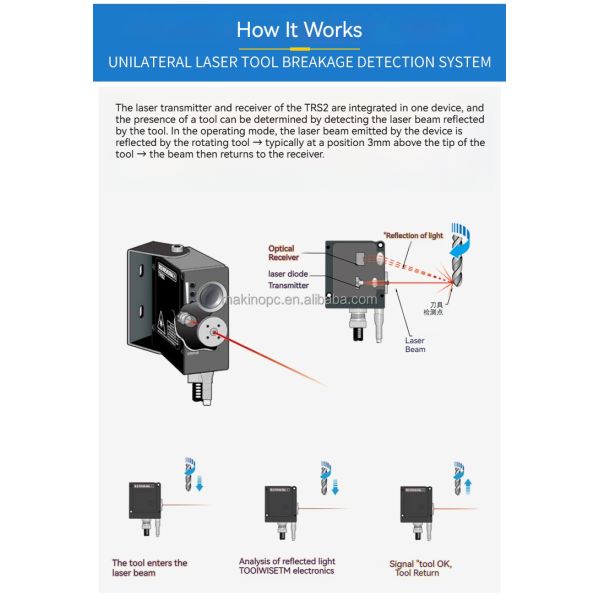

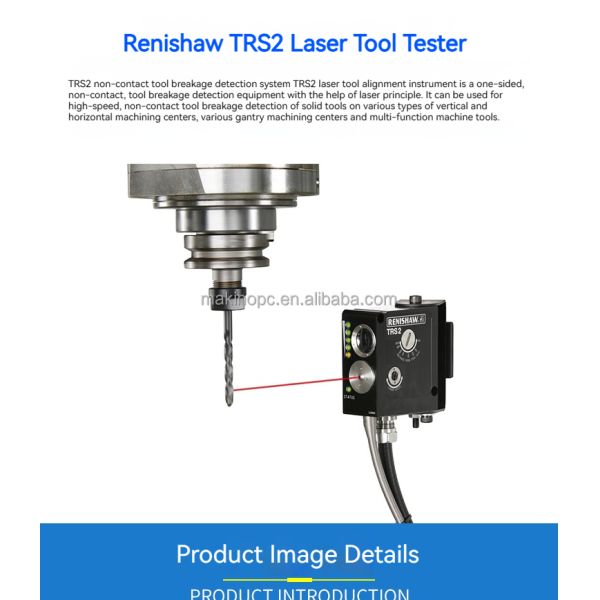

The Renishaw TRS2 laser tool setter (non-contact broken tool detection system) is a single-sided, non-contact, laser-based broken tool detection system. It provides high-speed, non-contact broken tool detection on solid tools on a wide range of vertical and horizontal machining centers, gantry machining centers and multifunctional machines. With the TRS2, reductions in scrap rates can be easily achieved and process control efficiencies can be easily achieved and the efficiency of process control can be dramatically improved.
Product Paramenters
Product Name
Renishaw single-sided laser tool setting probe
Product Model
TRS2S-350

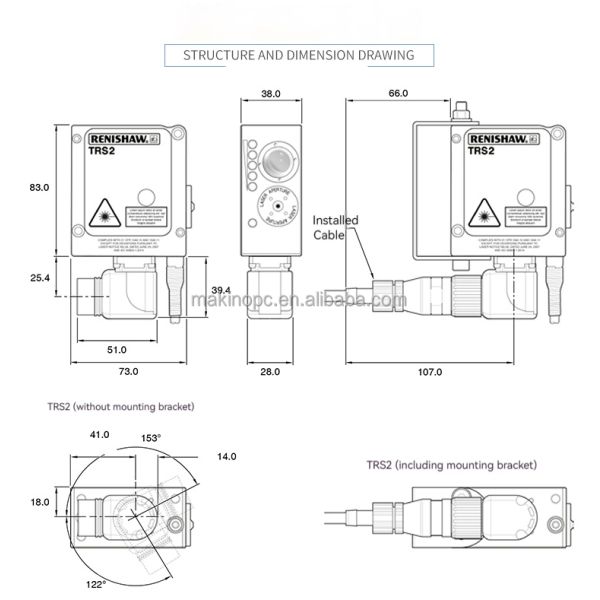

Size
H*W*D(83*38*73mm)
Weight
750g (including 10m cable)
Transmission Type
Hardwired connection for transmission
Compatible Interface
N/A (integrated interface)
Props Breakage Detection
0.2mm
Detection Distance
TRS2 adjustable between 300mm and 2m, factory set at 350mm
Supply Voltage
11Vdc to 30Vde
Supply Current
65mA at 12Vdc; 42mA at 24Vdc
Output Signal
Status Outputs; Volt free solid state relay outputs, configurable normally open or normally closed
Input and output cloth
Power supply/output protected by resettable fuses
Cable specification
10m, 4.85mm center, 5 cores insulated shielded cable, 18*0.1mm per core

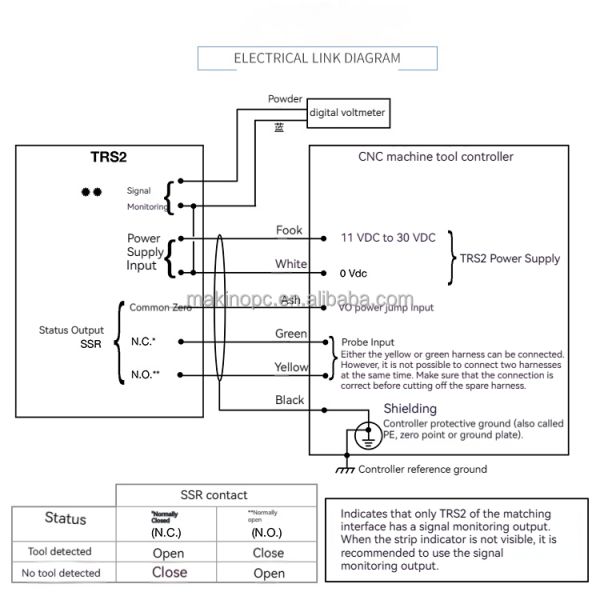

Electrical Connection
Outlet from bottom of unit
Air Source
Medium 4mm air hose
Laser Type
Class 2 laser products
Laser Light Velocity Straightening
Unit is supplied with adjustable mounting bracket

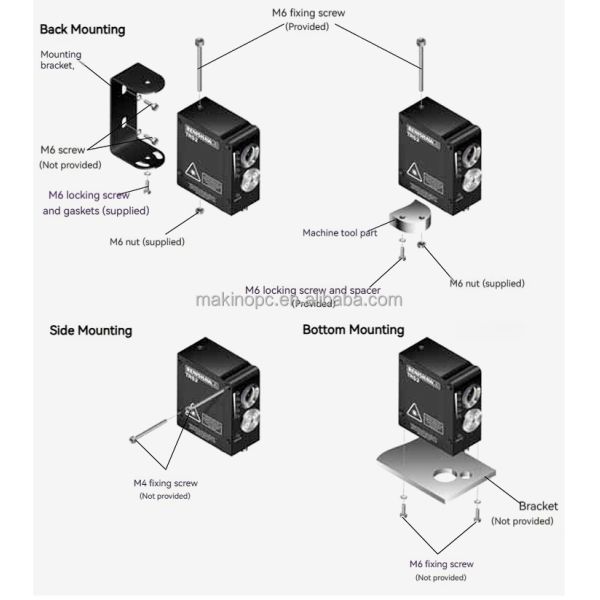

Installation
Supplied with mounting bracket with M6 (2) slotted holes
Protection class
IP68
Net Weight
782.4g
Gross Weight
1342g
Main Applications
For high-speed, non-contact tool breakage detection of solid tools on a wide range of vertical and horizontal machining centers, a
wide range of gantry machining centers, and multi-purpose machines.
