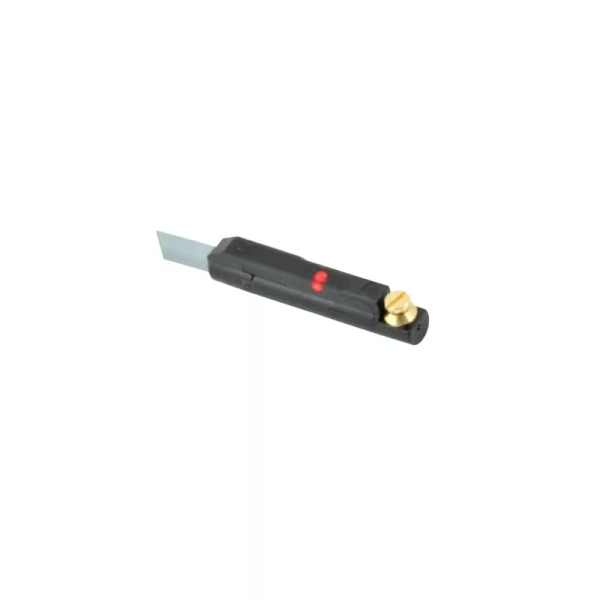

ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
Specifications
Price :
$12.30-14.30
warranty :
1 Year
Magnetic sensitivity :
4.5~6mT
Current consumption :
15mA MAX
Output mode :
NPN normally open (ON at proximity)
Insulation resistance :
DC250V
Magnetic detection direction :
Downward
Protection level :
IP67
Place of Origin :
Guangdong, China
Machine Type :
Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine
Output current :
12mA MAX
Withstanding Voltage :
AC1000V
Brand Name :
Makinopc
weight (kg) :
0.5
Supply Voltage :
DC5~24V
MOQ :
1
Response time :
5μ sec
Description
Products Description

CNC machine tool cylinder sensor magnetic switch inductor proximity Japan original imported ZPSC008R


Key Features

Cylinder sensors are mainly used to control and regulate the engine combustion process, which can improve the fuel efficiency and operational stability of the internal combustion engine. In automobiles, the main role of the cylinder sensor is to detect the pressure change inside the cylinder, control the ignition timing and oil volume, etc., to ensure the normal operation of the internal combustion engine. In the industrial field, cylinder sensors are mainly used to detect the internal state of the system and to control and adjust the system.
Product Paramenters
Supply Voltage
DC5～24V
Detection Poles
ZPSC008R-S: S pole

ZPSC008R-N: N pole
Magnetic sensitivity
4.5～6mT
Magnetic detection direction
Downward

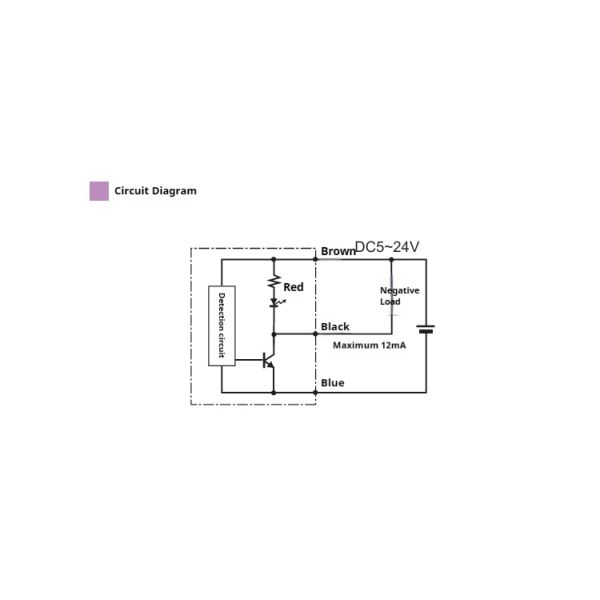

Output mode
NPN normally open (ON when close)
Output current
12mA MAX
Current consumption
15mA MAX
Response time
5μ sec
Withstanding Voltage
AC1000V

(1 minute, between the whole charging part and the case)
Insulation resistance
DC250V

(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature
-20℃～+85℃ (no condensation)
Humidity
20～95%RH
Wire Specification
φ2.8×1m

S pole: Gray

N-pole: Black
Shell Material
Glass fiber reinforced resin: Black
Installation
Attached screw Tightening torque 0.06N-m
Indicator light
Red color
Protection level
IP67
※Output conversion and current increase can be realized by wire attachment.
Details Images
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
Company Profile
Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
ZPSC008R Cylinder Proximity Sensor Magnetic Detection Transducer Downward SN Pole DC 5-24v 12mA Output
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
