RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
Specifications
Place of Origin :
Guangdong, China
Signal output :
Normally open/closed
Machine Type :
Punching Machine, Milling Machine, Drilling Machine, turning machine
weight (kg) :
1.5
video outgoing-inspection :
Provided
Brand Name :
Makinopc
Contact strength :
1.5N (Installation status must be vertical)
MOQ :
1 piece
Contact Diameter :
100mm
Stroke :
5mm
Price :
$120-129 / piece
machinery test report :
Not Available
Repeatability :
0.001mm (condition: operating speed 50-200mm/min)
Contact rating :
DC24V-20mA(MAX)(Recommended value 10mA) Resistance Load
Contact life :
3 million times
Product Name :
Large Size Automatic Tool Setter
warranty :
1 Year
Product Model :
RH-100
Surface treatment :
Grinding 4S mirror
Description
Products Description

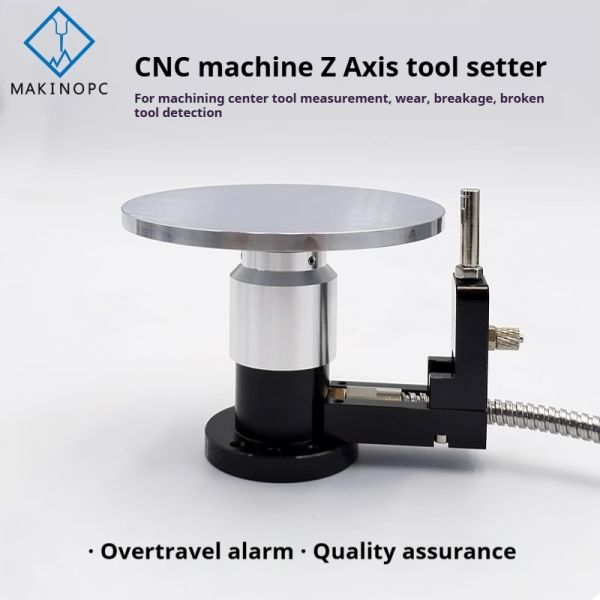

Makinopc RH-100 High Precision 100 mm Contact Diameter CNC Tool Setter Z Axis Pre-Setter for Large Scale Machining Centers

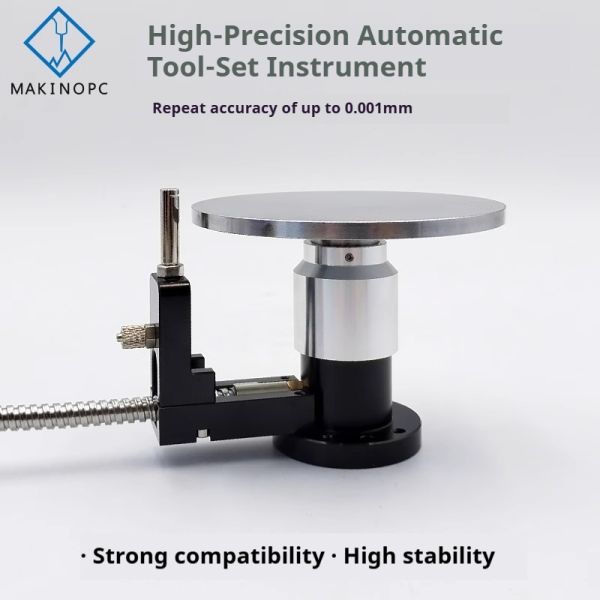

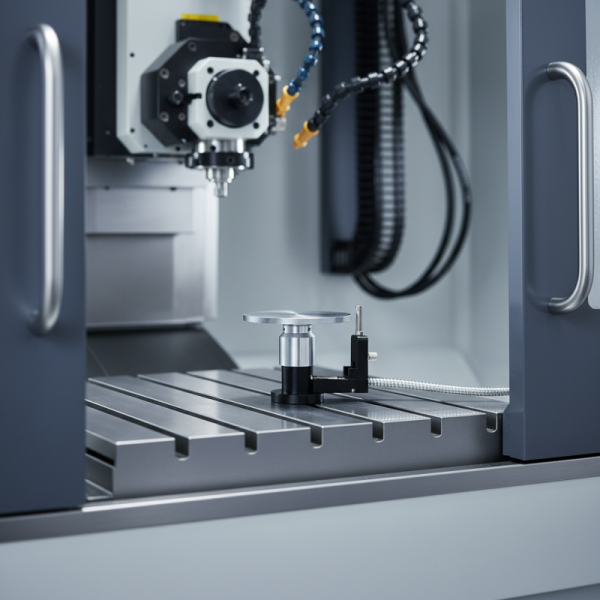

Makinopc RH-100 series tool setter, with a diameter of 100mm and a repeatability of 0.001mm, is mainly used for tool measurement, wear and breakage detection on CNC machining centers, engraving and milling machines, highlighting machines, and carving machines. Alarm signal will occur when exceeding the stroke, which can prevent breakage accidents.
Product Paramenters
Product Name
Automatic Tool Setter
Product Model
RH-100
Diameter
Ф 100mm
Main body material
Aluminum alloy material
Contact part material
Super hard alloy material
Surface treatment
Grinding 4S mirror surface
Output Mode
Normally open/closed
Pre-stroke
No
Stroke
5mm
Repeatability
0.001mm (Condition: Operating speed 50-200mm/min)
Contact life
3 million times
Protection structure
IP67*100% waterproof and oilproof sealing performance
Contact force
1.5N(Installation status must be vertical)
Contact rating
DC24V-20mA(MAX)(Recommended value 10mA) Resistance Load
Cables
Standard 5m oil, 6-core Ф4.8, tensile strength 30N, bending radius R7
Cable material
PVC
Protection tube
8mm 304 stainless steel 1.5 meters long
Indicator light
Normally closed LED light is on when working

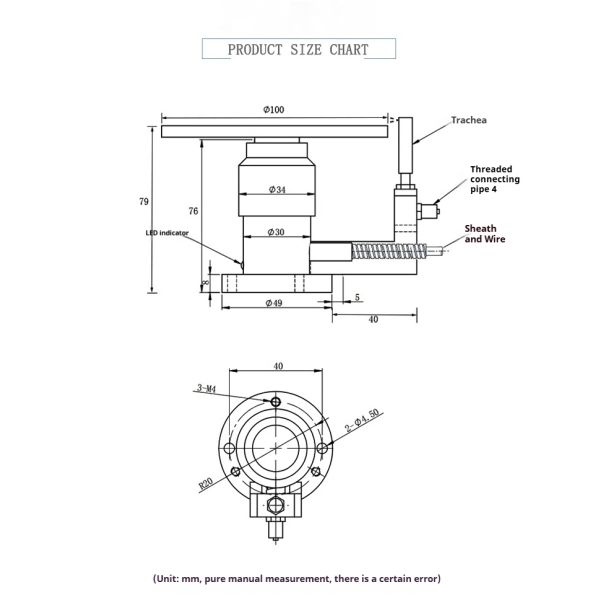

Mounting hole distance
40mm
Over-travel alarm signal
Output Mode:NC Normally Closed (about 2.5mm from the detection signal)
Contact voltage: DC24V-20mA(MAX)(Recommended value 10mA) Resistive load
Details Images
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
Company Profile
Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
RH-100 High Precision 100 mm Diameter CNC Tool Setter Z Axis Presetter for Large CNC Machining Centers
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
