T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
Specifications
Brand Name :
Makinopc
Product Name :
Precision Automatic Tool Setting Instrument
Price :
$155-159 / piece
Contact strength :
2.5N(Mounting condition:Vertical)
Contact rating :
DC24V~20mA(MAX) Recommended Value 10mA Resistance Load
machinery test report :
Not Available
MOQ :
1 piece
Place of Origin :
Guangdong, China
weight (kg) :
1.5
Signal output :
Normally open/closed
video outgoing-inspection :
Provided
Surface treatment :
Grinding 4S mirror
warranty :
1 Year
Stroke :
12mm
Machine Type :
Milling Machine, turning machine, planning machine, Punching Machine, Grinding Machine, Drilling Machine
Contact life :
3 million times
Product Model :
T24E-60
Counterbore Diameter :
60mm
Repeatability :
0.001mm (condition: operating speed 50-200mm/min)
Description
Products Description

Brief Introduction

This CNC tool setter Z Axis Presetter T24E-60 is a square base, to the tool surface of 40mm, 60mm, mainly for CNC machining centers engraving and milling machine tool measurement, wear and tear, fracture detection; beyond the stroke will occur when the alarm signal, can prevent breakage accidents. Applicable to China, Japan, Taiwan, South Korea and other machining centers engraving machine and a variety of numerical control CNC control machinery.
Product Paramenters
Product Name
Precision Automatic Tool Setter / CNC Tool Setting Instrument
Product Model
T24E-60
Signal output
Normally open/closed
Counterbore Diameter
60mm
Material
Tungsten steel
Surface treatment
Grinding 4S mirror
Repeatability
0.001mm (condition: operating speed 50-200mm/min)
Contact life
3 million times
Contact strength
2.5N(Mounting condition:Vertical)
Pre-travel
No
Stroke
12mm
Contact rating
DC24V~20mA(MAX) Recommended Value 10mA Resistance Load
Cable Specification
Standard 5m (customizable)6 core 4.8 tensile strength 30N,minimum bending radius R7
Cable Sheath
Standard 1.5m (can be customized) minimum bending radius R25
LED Lights
Normally closed, open at work
Waterproof Rating
IP68*100% waterproof, oilproof sealing performance
Net Weight
Middle 40:1002g;Middle 60:1147.0g
Gross Weight
Medium 40:1081g;Medium 60:1282.4g

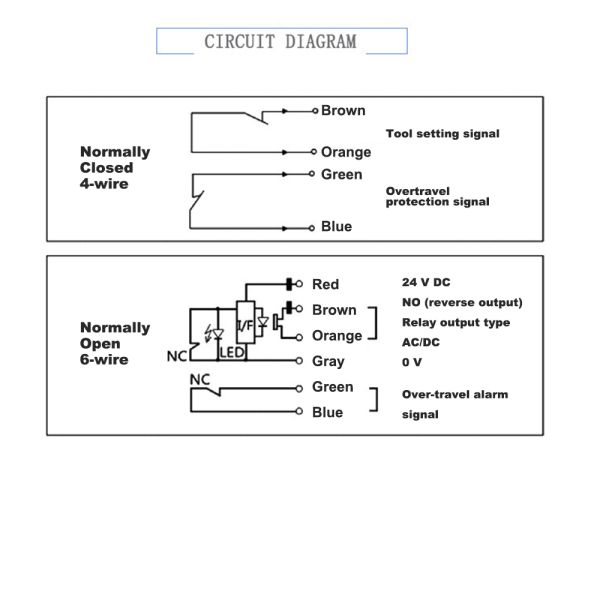

Overtravel Alarm Signal
Output Mode:NC/Normally Closed(Emergency stop when signal is disconnected/Normally Open can be ordered)
Contact Voltage:DC24V/20mA resistive load
(Load and current limitation are required in special cases)
Details Images
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
Company Profile
Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
T24E-60 CNC Z Axis Zero Tool Setter 60mm Diameter Tool Setting Sensor Presetter for Milling Machine Lathe Machining Centers
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
