Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Specifications
Brand Name :
OEM/ODM
Marketing Type :
Ordinary Product
Showroom Location :
None
Price :
$90.30-93.88 / piece
video outgoing-inspection :
Provided
machinery test report :
Not Available
Condition :
New
MOQ :
1 piece
Place of Origin :
Guangdong, China
weight (kg) :
1.2
Core Components :
SUS303, Indicator light
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining, CNC machining center
warranty :
1 Year
Description
Products Description

Key Features

Makinopc specializes in providing high precision force transducers with high accuracy, stable performance, strong resistance to lateral force, support for customization, widely used in various types of testing machines, test equipment, industrial field force measurement system. Spoke type, column type, torque transducer.
Product Paramenters
Supply Voltage
DC5~24V
Stroke
3±0.5mm (360°direction)
Operating force
H: 1.5N
J: 0.5N
Work point position [PT]
1.5±0.5mm
Repeat positioning accuracy
0.02mm

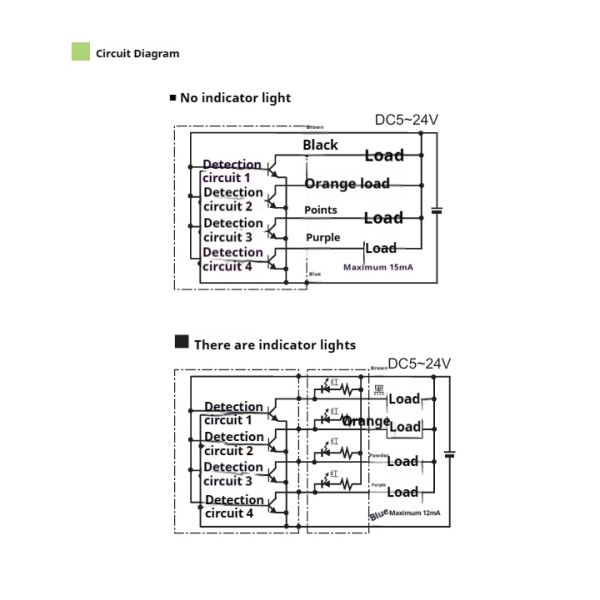

Output method
NPN normally open (ON for proximity)
Output current
ZTSX4 : 15mA MAX
ZTSX4-LED: 12mA MAX
Current consumption
ZTSX4: 12mA MAX
ZTSX4-LED: 15mA MAX
Operating Frequency
60 times/min or less
Withstanding Voltage
AC1000V
(1 minute, between the whole charging part and the case)
Insulation resistance
DC250V
(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature
-20°C~+85°C (no condensation)
Working environment humidity
20~95%RH
Wire specification
Φ3.6×1m Gray
Housing/Shaft Material
Cast zinc alloy
Nut/Ball Material
Black phenolic
Indicator light
ZTSX4
None
ZTSX4-LED
Approx. 100mm from the sensor body
Protection class
IP65
Note: A high-precision sensor is a high-precision sensor that can realistically reproduce the nature of an object because of the high degree of proximity between the measurement observation result, the calculated value, or the estimated value and the true value (or the value that is considered to be the true value).
Details Images
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Company Profile
Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, HANUC, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Makinopc 360 Degree Directional Contact Sensors 0.02mm Automatic CNC Measuring Controller Probes with IP65 protection ZTSX4
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
