Specifications
Supply Voltage :
DC5~24V
Response time :
16μ sec
Price :
$12.30-17.50 / piece
Brand Name :
Makinopc
Machine Type :
Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine
Output current :
15mA MAX
Indicator light :
Red color
MOQ :
1 piece
Current consumption :
4mA MAX
weight (kg) :
0.5
Magnetic detection direction :
Forward
Shell material :
Glass fiber reinforced resin: black
Place of Origin :
Guangdong, China
warranty :
1 Year
Detection Poles :
ZPS015H-S: S pole; ZPS015H-N: N pole
Magnetic sensitivity :
3~4mT
Protection class :
IP67 (can be used in cutting fluid and oil splash workplace)
Description
Products Description

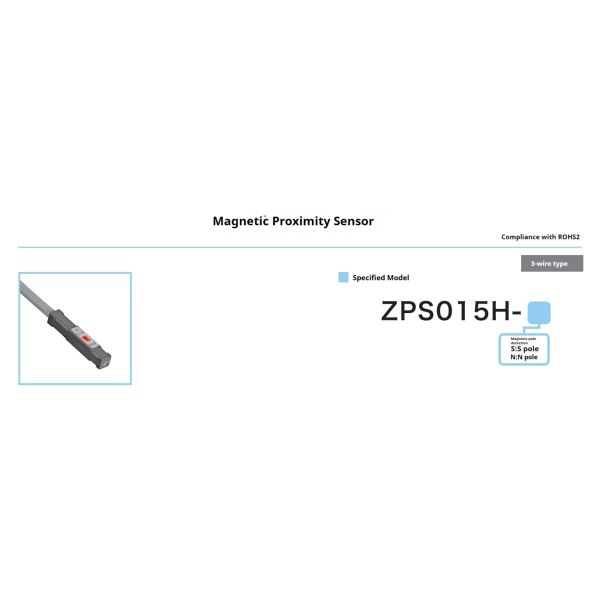

Makinopc High Accuracy Square Magnetic Reed Switch Sensors Proximity Sensor ZPS015H Reed Switch

Key Features

●Magnetic proximity sensors are sensors that operate ON and OFF according to changes in the strength of the magnetic field. ●The operating principle is the Hall principle, which detects the magnetic field according to its polarity, and the standard detection pole is the S pole. ●Because of the short response time (5μsec or less), it can also be used for tachometers and speedometers. ●Compared with general proximity sensors, it is characterized by high sensitivity, large detection distance, and small size. ●Can perform both home position and over-travel detection of servo mechanisms with only one dual sensor. ●Strong resistance to electromagnetic interference and high reliability.
Product Paramenters
Supply Voltage
DC5～24V
Detection Poles
ZPS015H-S: S pole
ZPS015H-N: N pole
Magnetic sensitivity
3～4mT
Magnetic detection direction
Forward
Output mode
NPN normally open (ON when close)
Output current
15mA MAX
Current consumption
4mA MAX
Response time
16μ sec
Withstanding Voltage
AC1000V
(1 minute, between the whole charging part and the case)
Insulation resistance
DC250V
(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature
-20℃～+85℃ (no condensation)
Humidity
20～95%RH
Wire Specification
φ2.6×1m Gray
S pole: Gray
N-pole: Black
Shell material
Glass fiber reinforced resin: black
Installation

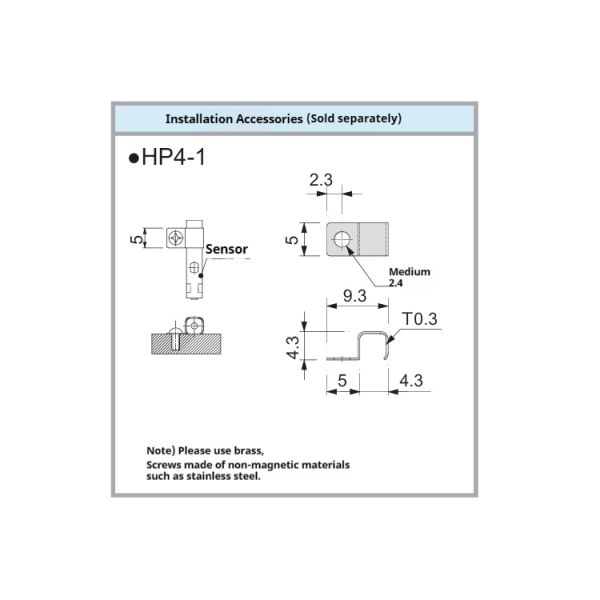

Dedicated mounting accessory
Indicator light
Red color
Protection class
IP67 (can be used at work sites where cutting fluid and oil splashes are used)
※Output conversion and current increase can be realized by wire attachment.
Details Images
Non-contact Magnetic Type Proximity Sensor with NPN Output 3-4mT Magnetic Sensitivity for Automation Equipment Safety Testing
Non-contact Magnetic Type Proximity Sensor with NPN Output 3-4mT Magnetic Sensitivity for Automation Equipment Safety Testing
Non-contact Magnetic Type Proximity Sensor with NPN Output 3-4mT Magnetic Sensitivity for Automation Equipment Safety Testing
※Output conversion and current increase can be realized by wire attachment.
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
