Specifications
Laser type :
Power <1mw, wavelength 680nm
Brand Name :
Makinopc
Lifetime :
>1 million switching cycles
warranty :
1 Year
Machine Type :
Milling Machine, lathe machine, turning machine
Power supply protection :
Recoverable protection, replaceable fuses
MOQ :
1 set
General sub-composite accuracy :
1 um
Output Signal :
Maximum current 50mA, maximum voltage 50V
video outgoing-inspection :
Not Available
Maximum Repeatability :
0.1 μm (depending on system, spacing and installation)
Sealing grade :
IP68 (with or without compressed air)
Applicable Industries :
CNC machining centers, Tool measurement / presetting tools and nozzles
Price :
$2,649-3,330 / set
Contact Diameter :
0.03-160mm
machinery test report :
Not Available
Product Name :
Laser Tool Setter MNC Series
weight (kg) :
2
Place of Origin :
Guangdong, China
Description
Products Description

Key Features

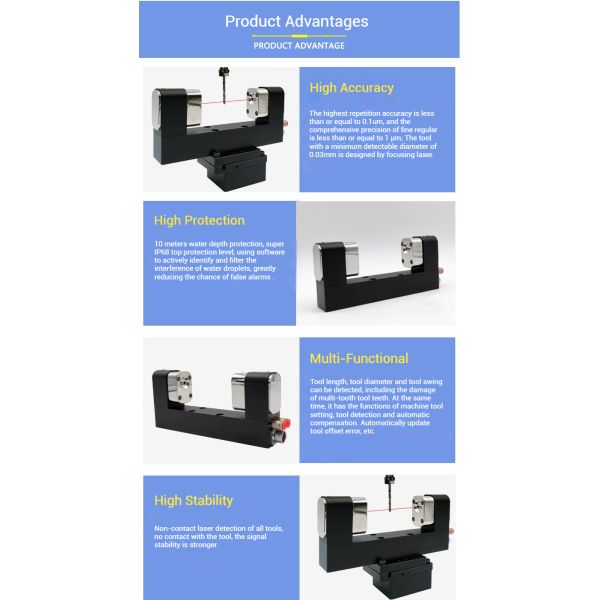

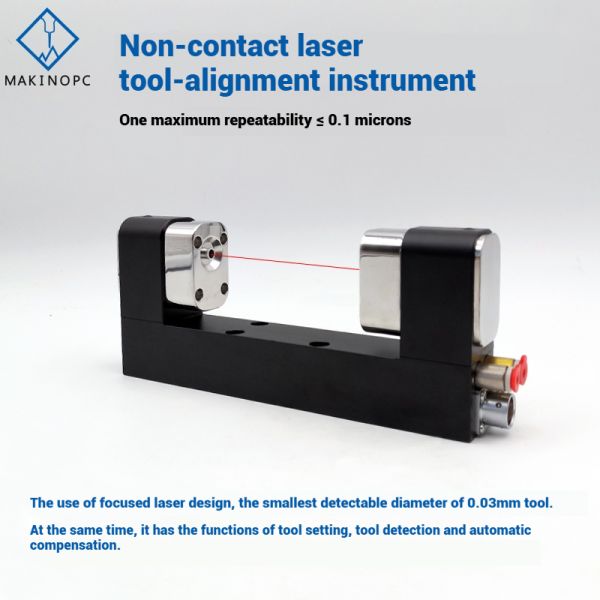

MNC series of non-contact laser tool setting instrument, using focused laser design, the smallest can detect the diameter of 0.03mm tool, at the same time with the machine tool setting, tool detection and automatic compensation function. Tool length, diameter and oscillation can be detected, including damage to the teeth of multi-tooth tools; automatically update the tool offset error, while also monitoring and compensating for thermal deformation of the machine tool spindle; and be able to inspect at very high speeds, reducing inspection time.
Product Paramenters
Product Name
Laser Tool Setter
Product Model
0.03-50MM
MNC86
MNC168
Centralized measurement to the diameter range
10.03-160MM
0.03-80MM
0.03-160MM
Tangential Measurement Diameter Range
0.03-60MM
0.03-110MM
0.03-320MM
Maximum Repeatability
0.1 μm (depending on system, spacing and installation)
General sub-composite accuracy
1 um
Laser type
Power <1mw, wavelength 680nm
Laser beam collimation
Adjustable mounting plate for adjustment
Supply voltage
50mA @ 24VDC
Power supply protection
Recoverable protection, replaceable fuses
Output Signal
Maximum current 50mA, maximum voltage 50V

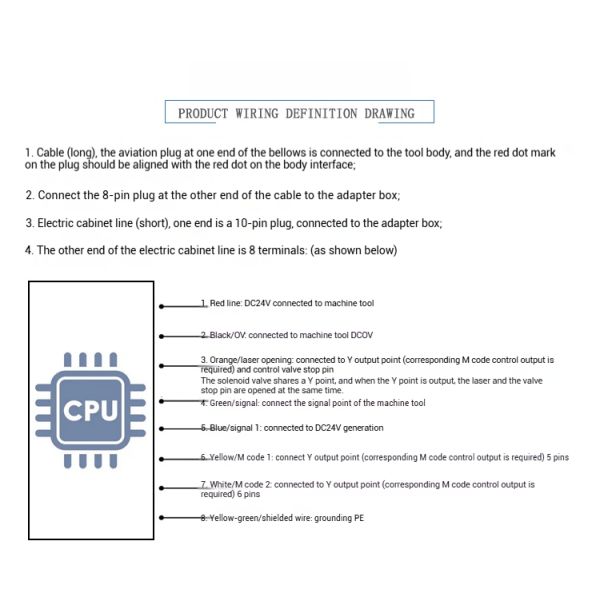

Signal transmission method
5m 8-core shielded twisted pair cable, oil resistant
Air source
4mm air hose
Lifetime
>1 million switching cycles
Sealing grade
IP68 (with or without compressed air)
Body Material
Aviation aluminum
Storage Temperature
-10°C to 70°C
Operating Temperature
5°C to 50°C
Main Applications
For use on a variety of vertical and horizontal machining centers, a variety of gantry machining centers, and multi-purpose
machines for high-speed, non-contact tool breakage detection of solid tools.
Details Images
MNC56 Makinopc Non-contact High Accuracy CNC Laser Tool Setter 0.03-160mm Diameter for Tool Length/Diameter Runout Measurement
MNC56 Makinopc Non-contact High Accuracy CNC Laser Tool Setter 0.03-160mm Diameter for Tool Length/Diameter Runout Measurement
MNC56 Makinopc Non-contact High Accuracy CNC Laser Tool Setter 0.03-160mm Diameter for Tool Length/Diameter Runout Measurement
MNC56 Makinopc Non-contact High Accuracy CNC Laser Tool Setter 0.03-160mm Diameter for Tool Length/Diameter Runout Measurement
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
MNC56 Makinopc Non-contact High Accuracy CNC Laser Tool Setter 0.03-160mm Diameter for Tool Length/Diameter Runout Measurement
Company Profile
Founded in 2014, Shenzhen Muye Precision Control Electromechanical Co., Ltd. is a service-oriented enterprise integrating R&D, design and sales of CNC numerical control machine tools accessories, and the products currently put on the market mainly include CNC numerical control machine tools with automatic tool setting instrument, electronic handwheels, hand-cranked pulse generators, on-line measuring probes, band switches, spindle encoders, system panels, electronic handwheel accessories supporting programs, and the realization of automatic tool setting installation and debugging solutions. Commissioning solutions, etc. Our factory is located in Songgang, Bao'an District, Shenzhen City, covers an area of more than 3,000 square meters, with 20 professional and technical personnel, 15 sets of testing instruments, two production lines. The production capacity reaches 100,000 units per month. We have exclusive patent design and own brand, and have won many quality certificates. The products are widely used in Fanuc, , Mitsubishi, Fagor, Heidenhain, Bao Yuan, New Generation, Guangzhou CNC GSK, open CNC, Kain Emperor KND, Nuoxin, Delta, a variety of PLCs, CNC machining centers, engraving machines, engraving and milling machines, drilling and tapping machines, EDM, milling machines, lathes and so on. The company in line with the "customer first, integrity first" principle with a number of enterprises to establish long-term cooperative relations, warmly welcome friends from all over the world to visit and negotiate business.
MNC56 Makinopc Non-contact High Accuracy CNC Laser Tool Setter 0.03-160mm Diameter for Tool Length/Diameter Runout Measurement
MNC56 Makinopc Non-contact High Accuracy CNC Laser Tool Setter 0.03-160mm Diameter for Tool Length/Diameter Runout Measurement
MNC56 Makinopc Non-contact High Accuracy CNC Laser Tool Setter 0.03-160mm Diameter for Tool Length/Diameter Runout Measurement
Our Advantages
1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.
