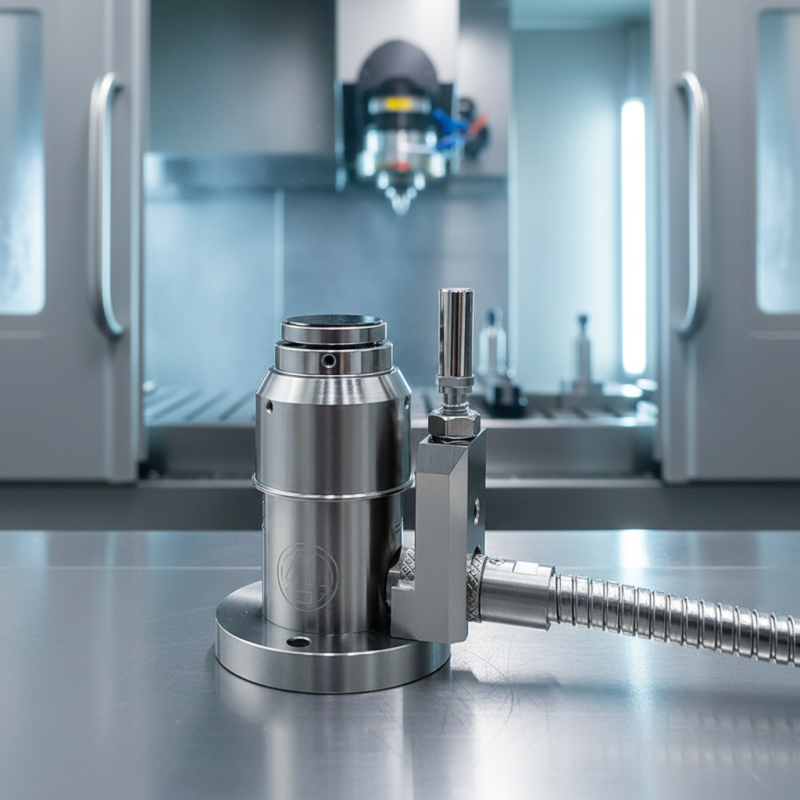

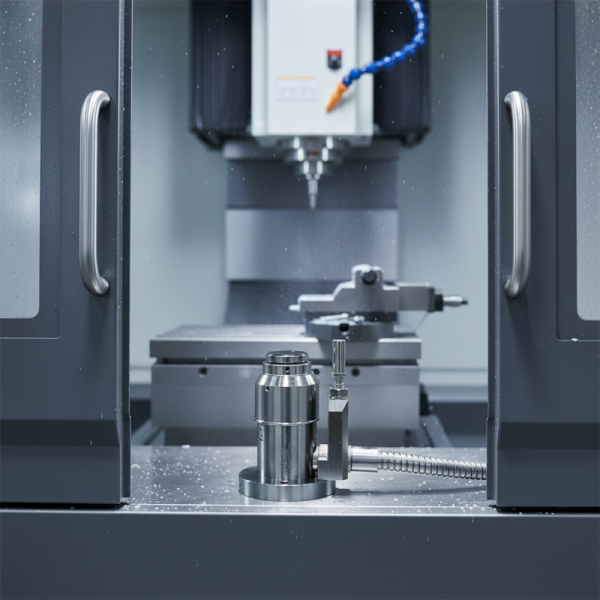

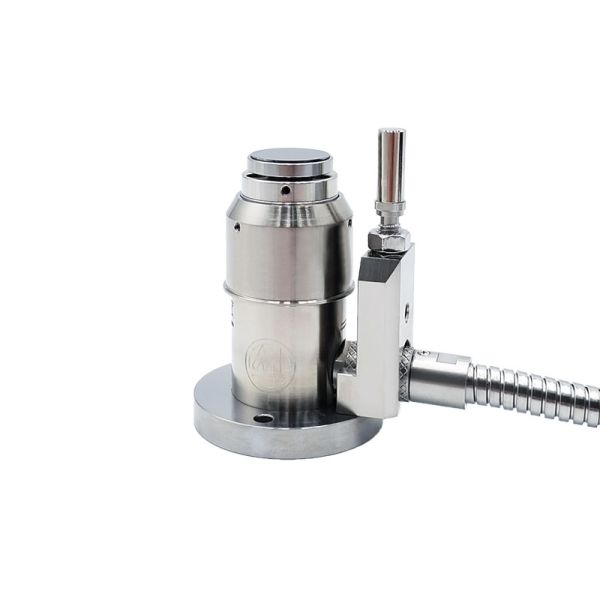

Marposs Tool Setter 3PTLS10312 Contact Diameter 20mm NO/NC Output 0.001mm Z-axis Presetter for CNC Machining Centers
Marposs Tool Setter 3PTLS10312 Contact Diameter 20mm NO/NC Output 0.001mm Z-axis Presetter for CNC Machining Centers
Marposs Tool Setter 3PTLS10312 Contact Diameter 20mm NO/NC Output 0.001mm Z-axis Presetter for CNC Machining Centers
Marposs Tool Setter 3PTLS10312 Contact Diameter 20mm NO/NC Output 0.001mm Z-axis Presetter for CNC Machining Centers
Marposs Tool Setter 3PTLS10312 Contact Diameter 20mm NO/NC Output 0.001mm Z-axis Presetter for CNC Machining Centers
Marposs Tool Setter 3PTLS10312 Contact Diameter 20mm NO/NC Output 0.001mm Z-axis Presetter for CNC Machining Centers
Marposs Tool Setter 3PTLS10312 Contact Diameter 20mm NO/NC Output 0.001mm Z-axis Presetter for CNC Machining Centers
Marposs Tool Setter 3PTLS10312 Contact Diameter 20mm NO/NC Output 0.001mm Z-axis Presetter for CNC Machining Centers
Marposs Tool Setter 3PTLS10312 Contact Diameter 20mm NO/NC Output 0.001mm Z-axis Presetter for CNC Machining Centers
Marposs Tool Setter 3PTLS10312 Contact Diameter 20mm NO/NC Output 0.001mm Z-axis Presetter for CNC Machining Centers
Marposs Tool Setter 3PTLS10312 Contact Diameter 20mm NO/NC Output 0.001mm Z-axis Presetter for CNC Machining Centers
Marposs Tool Setter 3PTLS10312 Contact Diameter 20mm NO/NC Output 0.001mm Z-axis Presetter for CNC Machining Centers
Specifications
Brand Name :
MARPOSS
weight (kg) :
2
Protective Structure :
IP67* 100% waterproof and oil-resistant sealing performance
Place of Origin :
Guangdong, China
warranty :
6 Months
Stroke :
6mm
video outgoing-inspection :
Not Available
Contact force :
1.5 N-2.2 N (Must be installed vertically)
Product Model :
3PTLS10312
Price :
$635-645 / piece
Machine Type :
Z-axis presetter
Product Name :
Marposs Tool Setting Device
MOQ :
1 piece
Contact Diameter :
20mm
Repeatability :
0.001 mm (Conditions: operating speed 50-200 mm/min)
Output Mode :
Normally Open and Normally Closed Combination
Contact life :
3 million times
Contact material :
Tungsten steel
machinery test report :
Not Available
Description
Product descriptions from the supplier

Contact Diameter 20mm: Precise measurement for CNC machining centers.

NO/NC Output: Reliable signal for accurate control.

0.001mm Z-axis Presetter: High-resolution precision for critical setups.

Z-axis Presetter: Essential tool for CNC machining centers.

Marposs Tool Setter 3PTLS10312 Contact Diameter 20mm NO/NC Output 0.001mm Z-axis Presetter for CNC Machining Centers
Marposs Tool Setter 3PTLS10312 Contact Diameter 20mm NO/NC Output 0.001mm Z-axis Presetter for CNC Machining Centers
Marposs Tool Setter 3PTLS10312 Contact Diameter 20mm NO/NC Output 0.001mm Z-axis Presetter for CNC Machining Centers
About this supplier

Shenzhen Muye Precision Control Electromechanical Co., Ltd., established in 2014, specializes in CNC machine tool accessories and components. With 11-50 employees, it offers touch probes, tool setters, and integrated automation solutions for global brands like FANUC and . The company provides rapid delivery and small-batch customization, supported by patented designs and industry certifications.
