MW-CD200C Series CT Injection System
MW-CD200C Series CT Injection System
MW-CD200C Series CT Injection System
MW-CD200C Series CT Injection System
Specifications
Pressure limit :
10 psi～350 psi (69 kPa～2414 kPa), adjustable in 1 psi or 1 kPa steps.
Storage capacity :
More than 1000 sets of injection protocols.
Place of Origin :
China
Injection rate :
(0.1～10.0) mL/s
Delay time :
(0～3600) s
Maximum :
8 injection phases can be configured.
Syringe capacity :
Different models are compatible with syringes of various capacities
Injection volume :
Adjustable from 0.1 mL up to the full syringe capacity with 0.1 mL increment.
Model Number :
MW-CD200C Series
Power requirement :
AC 220 V, 50 Hz, 200 VA
Description
Product Overview

The system is intended for the specific purpose of injecting intravenous contrast media or saline into humans for diagnostic studies in CT applications.

Core Advantages
System Composition

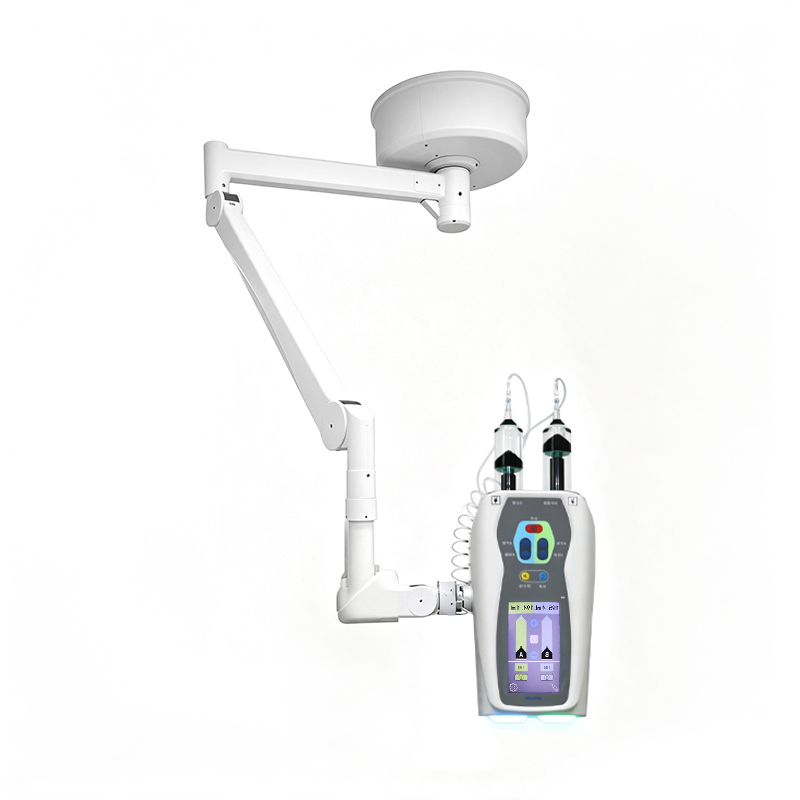

The system adopts a suspended mounting design, featuring a compact and elegant appearance to save scanning-room floor space.

Smart & User-Friendly Operation

12.1-inch capacitive multi-language touchscreen.

Bluetooth / RS485 dual-mode CT connection.

Automated Injector Head Workflow

Dual control via head-mount touchscreen & physical keys.

Auto syringe recognition, auto push-rod drive. IPX2 water-resistant housing with angle-lock safety.

Safety Protection

Purge interlock, real-time pressure monitoring

Global emergency stop, continuous self-diagnosis;

Test-injection extravasation risk screening.

Hospital-System Interoperability

DICOM-enabled, seamless HIS/RIS/PACS integration.

Auto-fetch patient data, auto-generate & upload standardized injection reports.

Optional Functions
  • Hand switch: hand-held remote start-stop control for more independent operation
  • Syringe Warmer: The system supports an optional syringe warmer, with a temperature range of 37 °C ±3 °C.
  • Dual-mode communication: The system supports both Bluetooth wireless and wired connections for flexible selection
  • Mfill Assembly: Enables installation and use of 24-hour long-duration syringe kits.
