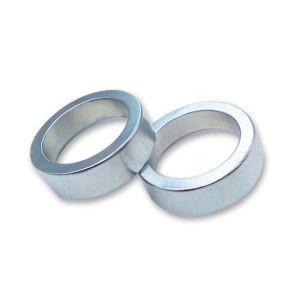

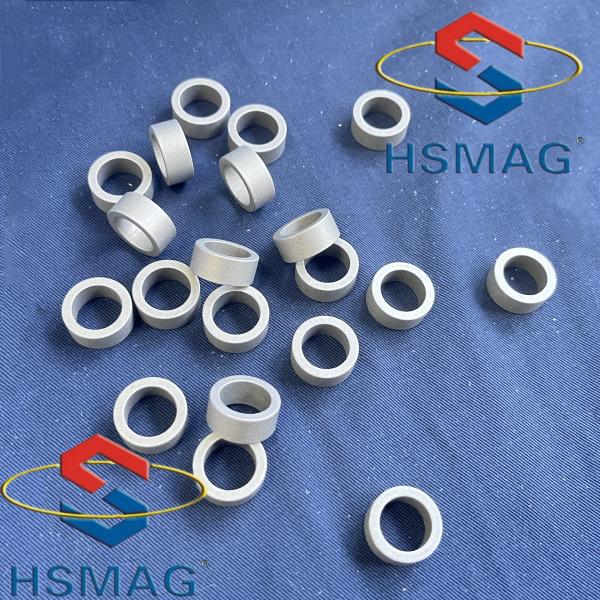

Rare Earth High Strength Sintered SmCo Magnet 6mm Dia Round Anti Erosion
Rare Earth High Strength Sintered SmCo Magnet 6mm Dia Round Anti Erosion
Rare Earth High Strength Sintered SmCo Magnet 6mm Dia Round Anti Erosion
Rare Earth High Strength Sintered SmCo Magnet 6mm Dia Round Anti Erosion
Rare Earth High Strength Sintered SmCo Magnet 6mm Dia Round Anti Erosion
Rare Earth High Strength Sintered SmCo Magnet 6mm Dia Round Anti Erosion
Specifications
Brand Name :
HSMAG
Model Number :
Sm2Co17
Certification :
ISO9001
Place of Origin :
Mianyang, China
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000PCS 15Days
Delivery Time :
30 work days
Packaging Details :
Cartons, sheet metal shielding packaging
Orientation :
Thickness or according to your needs
Composite :
SmCo Magnet,
Max Working Temperature :
350℃
Customization :
Customized logo(Min. Order: 20000 pieces)
Tolerance :
+/-0.1MM, +/-0.1MM +/-0.05MM
More Shipping :
Support Express · Sea freight · Land freight · Air freight
Sample :
Available
Size :
Customized Size
Material :
Samrium and Cobalt
Application :
Motor
Processing :
Bending, Cutting, Decoiling, Moulding, Punching, Welding
Description
Permanent disc, ring, block, cylinder, segment or arc samarium cobalt magnet
The Main Products

SmCo (Samarium Cobalt) permanent magnet

SmCo magnets is widely used in aerospace, electronic instruments, magnetic pumps, high temperature lamps, sensors andother fields. And it has the highest temperature of 350℃, high magnetic properties,excellent temperature characteristic and corrosion resistance. Furthermore it can be produced in different shapes(round, square, ring, tile, bread), different properties

(SmCo5 and Sm2Co17), different sizes(Wafer diameter1≤R≤100mm,Square≤130mm)

Rare Earth High Strength Sintered SmCo Magnet 6mm Dia Round Anti Erosion

Surface Method Thickness Colour
Ni Electroplate 10 Silver Semi-bright
Zn Electroplate 10 Silver Semi-bright
Ni-Cu-Ni Electroplate 10 Silver Semi-bright
Ni+Sn Electroplate

Ni 5

Sn 10

 Silver Semi-bright
Aluminum Chromate Lon-deposition 5 Yellow Semi-bright
Resin Coatings Spray Painting Electrophoresis 20 Black
Products Description

1:5 SmCo Magnet

SmCo1:5 Magnet is also called SmCo5, the highest working can be 250℃.Based on Sm,Co and some other metals. After processing of melting, milling, compression moulding and sintering. To make work blank with different levels of performance.

2:17 SmCo Magnet

SmCo2:17 Magnet is also called Sm2Co17, the highest working can be 350℃.Based on Sm, Co, copper, iron zirconium and some other metals. After processing of melting, milling, compression moulding and sintering. To make work blank with different levels of performance.

Raw Material Ratio Energy Density ReversibleTemp.coefficient
SmCo5 Sm:Co=1:5 25MGOe - 0.05% / ℃
Sm2Co17 Sm:Co=2:17 32 MGOe - 0.03% / ℃.
Product Name
SmCo Magnet
Material
SmCo Magnet (Sm2Co17, SmCo5)
Normal size range
W=3-130mm,H=1.5-100mm,L=1-130mm
Biggest size
According to your needs
Smallest size

According to your needs
Note:
For large bread products, no thin size is allowed, because SmCo's huge brittleness will easily cause breakage during assembly

Rare Earth High Strength Sintered SmCo Magnet 6mm Dia Round Anti ErosionRare Earth High Strength Sintered SmCo Magnet 6mm Dia Round Anti Erosion

Froperties of SmC0 Magnets

Rare Earth High Strength Sintered SmCo Magnet 6mm Dia Round Anti Erosion

Dimensions anf Toleranfces


Rare Earth High Strength Sintered SmCo Magnet 6mm Dia Round Anti Erosion

Company Profile

Mianyang Hengxin Magnetic Materials Co., Ltd. was founded in 1999, specializing in the manufacture and development of sintered samarium cobalt permanent magnet materials and devices; after years of development, it has formed a production capacity of 500 tons of samarium cobalt permanent magnet materials per year, and is the main manufacturer of samarium cobalt permanent magnet materials and devices in China.

Rare Earth High Strength Sintered SmCo Magnet 6mm Dia Round Anti Erosion

Our Certificates

Rare Earth High Strength Sintered SmCo Magnet 6mm Dia Round Anti Erosion

Factory Tour

Rare Earth High Strength Sintered SmCo Magnet 6mm Dia Round Anti Erosion

Packagig Shipping
