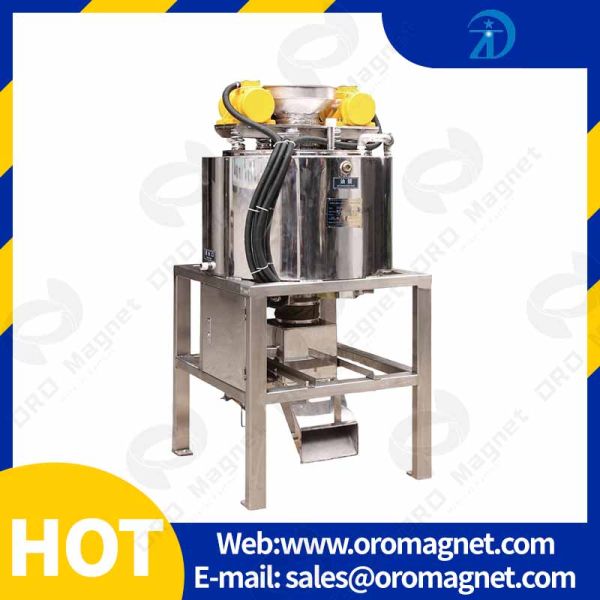

Double Cooling Magnetic Separation Equipment For Wet Process Kaolin Clay Feldspar Quartz Slurry
Double Cooling Magnetic Separation Equipment For Wet Process Kaolin Clay Feldspar Quartz Slurry
Double Cooling Magnetic Separation Equipment For Wet Process Kaolin Clay Feldspar Quartz Slurry
Double Cooling Magnetic Separation Equipment For Wet Process Kaolin Clay Feldspar Quartz Slurry
Specifications
Brand Name :
ZT
Model Number :
WD-3A160
Certification :
ISO9001：2008
Place of Origin :
FOSHAN,GUANGDONG,CHINA
MOQ :
1set
Price :
Negotiable
Delivery Time :
Within 30 days after the advance payment is made
Packaging Details :
Film And Wooden Case
Supply Ability :
50 SETS PER MONTH
Model :
3A160
Magnetic field strength（T） :
2
Inputvoltage（ACV） :
380
Maximum output current（DCA） :
15
Maximum coil power（KW） :
3
Insulation method :
E
Cooling method :
water and oil double cooling
Magnetic lumen diameter（mm） :
160
yield（T） :
0.5-1.5
dimension（mm） :
700*700*1450
Main machine weight （KG） :
450
Usage :
Applicable for 60-300 mesh feedstock of iron elimination
Description

2T 380ACV 15DCA Eletromagnetic Separator for Dried-powder Insulation method E

Product characteristic

Large wrap angle, multi-magnetic-pole

Doesn’t need to come over the gravity and resistance of the raw material.

Nonmagnetic minerals can depart from the magnetic cylinder very well.

With the mechanical vibrating equipment

Operation process

Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator.

After a period ,stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge.

Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.

Application scope

Electromagnetic dried-powder separators:It's can used in Kaolin Beneficiation,Sodium potassium feldspar Beneficiation,Quartz Beneficiation,Polarity powder material Beneficiation,active pharmaceutical ingredient(API)treatment,antibiotics treatment,paper treatment,organic chemical industry and related equipment ,Fine chemicals and related equipment.

Technical parameter

Model

3A220

7A300

11A220

11A430

15A220

20A600

Magnetic field strength(T)

2

3

3

3

5

3

Input voltage(ACV)

220

380

380

380

380

380

Maximum output current(DCA)

7

20

20

20

30

40

Maximum coil power(KW)

3

7

11

11

15

20

Insulation method

E

E

E

E

E

E

Cooling method

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

Magnetic lumen diameter(mm)

220

300

220

430

220

600

yield(T)

1-3

1.5-4

0.5-3

1.5-6

dimension(mm)

860*860*

1540

1320*1320*

2500

1300*1100*

1800

1500*1500*

2500

1350*1100*1850

1500*1500*2000

Main machine weight

(KG)

490

1020

1130

1210

1500

2000

Usage

Applicable for 60-300 mesh feedstock of iron elimination
