30 U" Gold Plating 10G RJ45 Connector 2 x 6 Port With Surge Protection EMI Gasket

1. 10G RJ45 Connector Features

  • Complies with requirements of IEEE 802.3ab standards
  • RJ45 connector with 10G BASE-TX magnetic transformer
  • 10 BASE - T Transmission speed
  • Comply with RoHS requirements
  • 2 x 6 Ports

2. 10G RJ45 Connector Applications

  • Internet of Things (Ethernet)
  • Network interface cards (NIC)
  • Industrial process control
  • Networking and communications
  • Broadcast video
  • Switchers
  • Splitters

3. 10G RJ45 Connector Product Attributes

Package Height (Inches) 1.019
Package Height (mm) 25.88
Package Length (Inches) 1.619
Package Length (mm) 41.12
Package Width (Inches) 3.2
Package Width (mm) 81.28
Contact Mating Area Plating 30u" Gold Plating
Speed 10G BASE-T
Temperature 0 TO 70℃
Storage Temperature -40 to +85 ℃

4. 10G RJ45 Connector Electrical Specification:

Parameter Specification
Brand GLGNET
Operating Temperature 0 to 70 ℃
Turns Ratio 1:1±2%

Open Circuit

Inductance (ocl)

180uH MIN@ 100KHz/100mV with 10mA DC Bias (For Channel 1, 2, 3, 4 )
Insertion Loss (IL)

-3.0dB MAX @ 100 KHZ;

-2.0dB MAX @ 1 - 400 MHZ; ( -1.4dB TYP )

Return Loss (RL)

Z out = 100 OHM

-22dB MIN @ 1MHz – 100MHZ;

-22+20.75xLOG ( F/100 ) dB MIN @ 100MHz - 500MHZ

Crosstalk

Adjacent Channels

-28dB MIN @ 1MHz – 100MHZ

-19dB MIN @ 100MHz - 500MHZ
Common Mode Rejection Ratio (CMRR)

-30dB MIN @ 1MHz – 40MHZ

-28dB MIN @ 40MHz – 100MHZ

-26dB MIN @ 100MHz – 500MHZ
Common Mode to differential mode attenuation

-30dB MIN @ 1MHz – 250MHZ

-22dB MIN @ 250MHz – 500MHZ
HI - POT 2250 VDC @ 60 Seconds (Channel 1, 2 , 3 , 4 )
Protection

IEC 61000-4-5 (L-L 1KV )

IEC 61000-4-5 (L-G 6KV )

5. Customization Services

  • Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
  • Supports to custom different Pin Length;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • With or without POE function;
  • 90 ° or 180 ° Orientation
  • Being with or without LED diode,
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • Printing LOGO

6. GLGNET Advantages

  • 20 years experiences in Magnetic RJ45 Connector
  • 1500 Employees
  • 58 R&D Engineers
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification.
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on

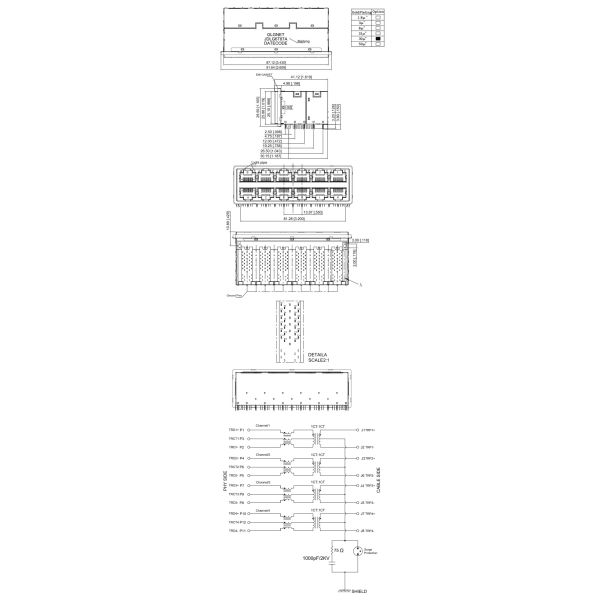

7. 10G RJ45 Connector Mechanical Drawing

30 U
