Integrated Transformer 10G RJ45 Connector 2 x 4 Stacked 10G Base - T

1. GLGNET 10G RJ45 Connector (JDLG4T87B ) Parameters

GLGNET Is a Connector manufacture produce variety of connectors, Mainly include RJ45 Connector and SFP Cage Series, not only supply many kinds of standard Connecors, but also support custom service;

2. For RJ45 Connectors, GLGNET Customization Services as following:

• Supports to custom different structure 1 x n or 2 x n, Tab - up or Tab - Down, Different size, Different Color, With or without Integrated Magnetics or Transformers;
• The Integrated Magnetic / Transformer Speed can be 10 Base - T, 100 Base - T, 1000 Base - T, 2.5G Base - T, 5G Base - T and 10G Base - T
• Supports to custom different Soldering Foot Length;
• LED color can be green, yellow, orange, red and so on;
• Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
• Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
• With or without POE function;
• 90 ° or 180 ° Orientation
• Being with or without LED diode,
• Being with or without EMT TAB ( EMI Spring , EMI Finger );
• Being with or without lightpipes;
• Printing LOGO

3. GLGNET 10G RJ45 Connector (JDLG4T87B ) Structure

• 2 x 4 Stacked Structure
• With Integrated LEDs or Light Pipes, Let know the Connection Status
• LED Light Color can be Green, Yellow or Orange
• With EMI Tabs or EMI Gasket, ensure better EMI Protection
• The RJ45 Connector with Integrated 10G Base - T Magnetics / Transformer
• Through Hole Mounting Type
• Printing Logo or Part number is Available
• The 10G R45 Connector Length is 41.12 mm ( with EMI Gasket Type )
• The 10G RJ45 Connector Width is 63.7 mm ( with EMI Gasket Type )
• The 10G R45 Connector Height is 29.59 mm ( with EMI Gasket Type )
• THe Soldering Foot Length 3.2 mm
• Supports Custom as required

4. GLGNET 10G RJ45 Connector (JDLG4T87B ) Features

• Supports 10G Base - T Transmission Speed
• Complies with requirements of IEEE 802.3u or IEEE 802.3ab standards
• RJ45 connector with 10G Magnetics / Transformers
• Comply with RoHS, REACH, UL requirements
• Broad set of configurations
• -40°C to +85°C or 0°C to +70°C operating temperature range
• Combinations of green, yellow, orange, and red LEDs
• Support Custom

5. GLGNET 10G RJ45 Connector (JDLG4T87B ) Materials

• Housing: Class Filled PA46 UL94V-0 (ROHS)
• Sheliding: 0.2mm thickness With Copper Alloy (RoHS)
• Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface
• Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
• All the Raw materials meet RoHS
• Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 to 85 ℃

6. GLGNET 10G RJ45 Connector (JDLG4T87B ) Electrical Specification:

7. GLGNET 10G RJ45 Connector (JDLG4T87B ) Applications

• Internet of Things (Ethernet)
• Network interface cards (NIC)
• Industrial process control
• Networking and communications
• Broadcast video
• Switchers
• Splitters
• LED TV
• SMart TV
• STB
• HUBs
• PCs
• Router,
• IP cameras, surveillance, and phones
• Access points
• Set-top boxes and video

8. GLGNET Advantages

• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• 20 years experiences in Magnetic RJ45 Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• We have our Own Hardware Mold and Plastic Mold

• Has 3 LS-WEDM Machines

• Has 12 WEDM Machines and 8 CNC Machines

• Has 20 Grinding Machines and 12 Electrical Discharge Machines

• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines

• Has Automatic Assembly Workshops

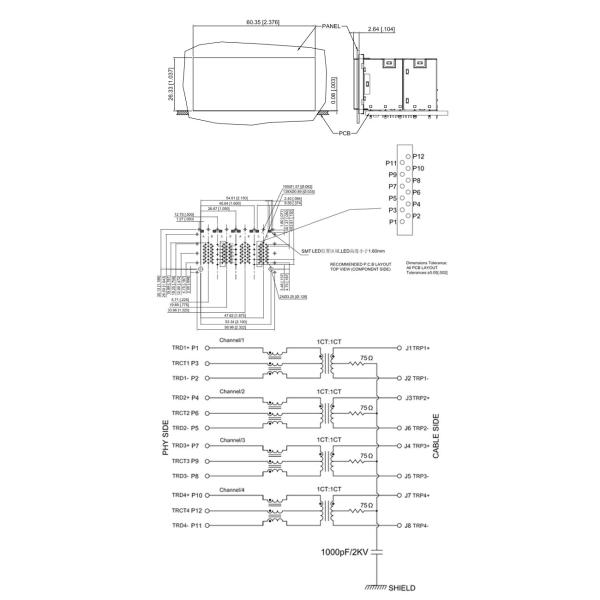

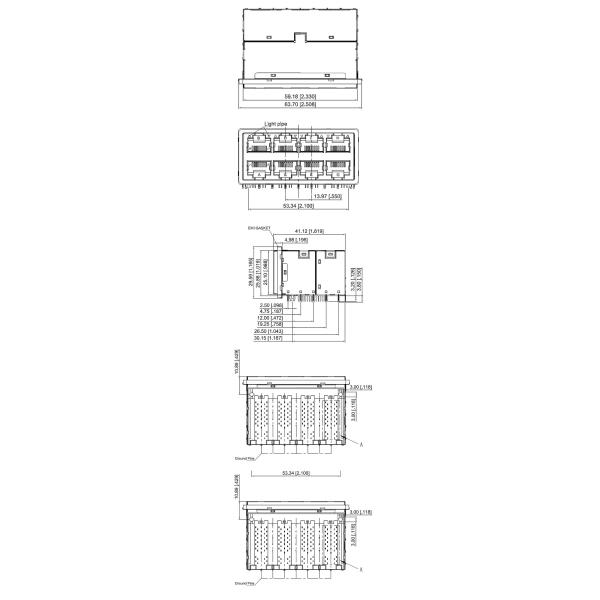

9. GLGNET 10G RJ45 Connector (JDLG4T87B ) Mechanical Drawing ( With EMI Gasket Type )
