Side Enter Stacked Rj45 Ethernet Jack 10G Base T Transformer EMI Gasket
Side Enter Stacked Rj45 Ethernet Jack 10G Base T Transformer EMI Gasket
Side Enter Stacked Rj45 Ethernet Jack 10G Base T Transformer EMI Gasket
Side Enter Stacked Rj45 Ethernet Jack 10G Base T Transformer EMI Gasket
Specifications
Brand Name :
GLGNET
Model Number :
JDLG6T87A -5
Certification :
ISO9001, ISO14001, IECQ QC080000, UL, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20kkports/month
Delivery Time :
10 working days
Packaging Details :
Tray, Tube, Reel, Carton
Product Name :
10G Magnetic RJ45 Connector
Integrated Transformer :
10G Base T Speed
Port Number :
2 x 6 In Stacked Structure
Surge Protection :
Yes, Support
Shielded EMI Gasket :
Yes
Light Pipes :
Yes
Description

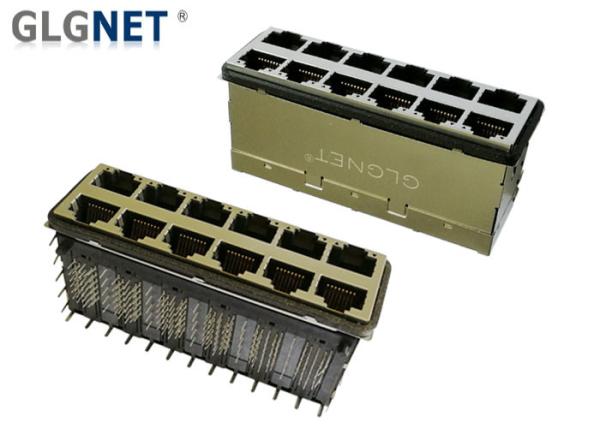

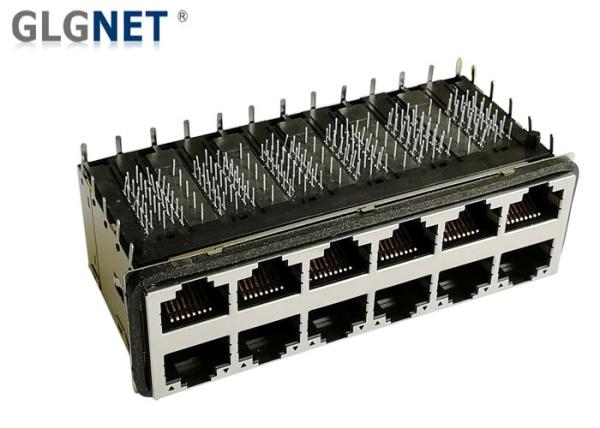

Side Enter Stacked Rj45 Ethernet Jack 10G Base T Transformer EMI Gasket

1. GLGNET 10G RJ45 Connector ( JDLG6T87A) Structure

Description 2 x 6 Stacked 10G RJ45 Connector
Package Height (Inches) 1.019
Package Height (mm) 25.88
Package Length (Inches) 1.619
Package Length (mm) 41.12
Package Width (Inches) 3.2
Package Width (mm) 81.28
Soldering Foot Length (mm) 3.2
Contact Mating Area Plating 30u" Gold Plating
Integrated Magnetic Speed 10G BASE-T
Mounting Type Through Hole
EMI Gasket Yes, ensure better EMI Protection
Light Pipes Yes, easy to know the connection status
Operating Temperature 0 To 70℃
Storage Temperature -40 to +85 ℃
Surge Protection Yes

2. GLGNET 10G RJ45 Connector ( JDLG6T87A) Applications

  • Switchers
  • Splitters
  • STB
  • Router,
  • Internet of Things (Ethernet)
  • Network interface cards (NIC)
  • Industrial process control
  • Networking and communications
  • Broadcast video
  • IP cameras, surveillance, and phones
  • Access points

3. GLGNET 10G RJ45 Connector ( JDLG6T87A) Electrical Specification:

Parameter Specification
Brand GLGNET
Operating Temperature 0 to 70 ℃
Turns Ratio 1:1±2%

Open Circuit

Inductance (ocl)

180uH MIN@ 100KHz/100mV with 10mA DC Bias (For Channel 1, 2, 3, 4 )
Insertion Loss (IL)

-3.0dB MAX @ 100 KHZ;

-2.0dB MAX @ 1 - 400 MHZ; ( -1.4dB TYP )

Return Loss (RL)

Z out = 100 OHM

-22dB MIN @ 1MHz – 100MHZ;

-22+20.75xLOG ( F/100 ) dB MIN @ 100MHz - 500MHZ

Crosstalk

Adjacent Channels

-28dB MIN @ 1MHz – 100MHZ

-19dB MIN @ 100MHz - 500MHZ
Common Mode Rejection Ratio (CMRR)

-30dB MIN @ 1MHz – 40MHZ

-28dB MIN @ 40MHz – 100MHZ

-26dB MIN @ 100MHz – 500MHZ
Common Mode to differential mode attenuation

-30dB MIN @ 1MHz – 250MHZ

-22dB MIN @ 250MHz – 500MHZ
HI - POT 2250 VDC @ 60 Seconds (Channel 1, 2 , 3 , 4 )
Protection

IEC 61000-4-5 (L-L 1KV )

IEC 61000-4-5 (L-G 6KV )

4. GLGNET 10G RJ45 Connector ( JDLG6T87A) Parameters

Part Number JDLG6T87A Brand GLGNET
Place of Origin Guangdong of China Certification IECQ QC080000, UL, RoHS, REACH
Product Type  RJ45 Modular Connector Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch Both Up and Down
Filter With Filter LED Option With or Without as required
LED Color Custom as required Panel Stops Without
Shielded EMI Gasket Yes Applies To  Industrial Ethernet Switches
Performance Speed 10G BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Stacked Number of Positions  8
Jack Configuration 2 X 6 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold plating 30u" Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  THT Solder Board Lock With Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating 

UL 94V-0

5. GLGNET 10G RJ45 Connector ( JDLG6T87A) Materials

  • Housing: Class Filled PA46 UL94V-0 (ROHS)

  • Sheliding: 0.2mm thickness With Copper Alloy (RoHS)

  • Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface

  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F

  • All the Raw materials meet RoHS

  • Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 to 85 ℃

6. GLGNET 10G RJ45 Connector ( JDLG6T87A) Features

  • Complies with requirements of IEEE 802.3u or IEEE 802.3ab standards
  • RJ45 connector with 10G Magnetics / Transformers
  • Supports 10G Base - T Transmission Speed
  • Comply with RoHS, REACH, UL requirements
  • -40°C to +85°C or 0°C to +70°C operating temperature range
  • Broad set of configurations
  • Combinations of green, yellow, orange, and red LEDs
  • Support Customization

7. GLGNET Advantages

  • We support Costom Service;
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • We have our Own Hardware Mold and Plastic Mold

  • Has 3 LS-WEDM Machines

  • Has 12 WEDM Machines and 8 CNC Machines

  • Has 20 Grinding Machines and 12 Electrical Discharge Machines

  • Has 30 Stamping Machines
  • Has 55 Plastic Injection Machines

  • Has Automatic Assembly Workshops

8. GLGNET Customization Services

  • Supports to custom different structure 1 x n or 2 x n, Tab - up or Tab - Down, Different size, Different LED Color, With or without Transformer;
  • The Integrated Magnetic speed can be 10 / 100 / 1000 Base T, 2.5G Base T, 5G Base T or 10G Base T
  • Supports to custom different Pin Length;
  • LED color can be green, yellow, orange, red and so on;
  • Can be with Integrated Light Pipes or outer Light Pipes
  • Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • With or without POE function;
  • 90 ° or 180 ° Orientation
  • Being with or without EMT TAB ( EMI Spring , EMI Finger ) or EMI Gasket
  • Plastic RJ45 Connector or with Metal Shell
  • Printing LOGO

9. GLGNET 10G RJ45 Connector ( JDLG6T87A) Mechanical Drawing

Side Enter Stacked Rj45 Ethernet Jack 10G Base T Transformer EMI Gasket
