GLGNET 2X4 10G RJ45 ICM Connector with Light pipes CAT6 Cable for 5G Network

1. GLGNET 2X4 10G RJ45 Connector (JDWCG4S1038P) Structure

Integrated Transformer With 10G Transformer
Port number 8 ports (2x4)
EMI Spring Without
LED Without
Lightpipes With
10G RJ45 Connectotr Width 59.18mm
10G RJ45 Connectotr Height 25.58mm
10G RJ45 Connectotr Depth 41.12mm
Terminal Length 3.2mm
Shield Leg Length 4.1mm
Mountibg Type DIP
Working temperature -45 to 85 ℃
Custom service support custom as request

2. GLGNET 2X4 10G RJ45 Connector (JDWCG4S1038P) Electrical Specification:

Parameter Specification
Brand GLGNET
Operating Temperature -40 to 85 ℃
Turns Ratio 1:1±2%

Open Circuit

Inductance (ocl)

 120uH MIN@ 100KHz/100mV with 15mA DC Bias (For Channel 1, 2, 3, 4 )
Insertion Loss (IL)

-1.5dB MAX @ 0.1-1MHZ;

-0.5dB MAX @ 1-65MHZ

-0.8dB MAX @ 65-125MHZ

-2.2dB MAX @ 125 - 400 MHZ

-3.5dB MAX @ 400 -500 MHZ

Return Loss (RL)

Z out = 100 OHM

-22dB MIN @ 1MHz – 100MHZ;

-22+20.75xLOG ( F/100 ) dB MIN @ 100MHz - 200MHZ

-12dB MIN @300MHZ

-9.5dB MIN @400MHZ

-7.5dB MIN @500MHZ

Crosstalk

Adjacent Channels

-30dB MIN @ 1MHz – 100MHZ

-23dB MIN @ 100MHz - 500MHZ
Common Mode Rejection Ratio (CMRR)

-30dB MIN @ 1MHz – 100MHZ

-25dB MIN @ 100MHz – 300MHZ

-20dB MIN @ 300MHz – 500MHZ
Common Mode to differential mode attenuation

-35dB MIN @ 1MHz – 100MHZ

-30dB MIN @ 100MHz – 300MHZ

-25dB MIN @ 300MHz – 500MHZ

DC Current/Voltage Range PSE PINS

 1000 mA MAX IMUM@57VDC (CONTINUOUS)
HI - POT 2250 VDC @ 60 Seconds (Channel 1, 2 , 3 , 4 )

3. GLGNET 2X4 10G RJ45 Connector (JDWCG4S1038P) Materials and plating

  • Housing: PA9T Black UL94V-0 (ROHS)
  • Sheliding: 0.2mm thickness With Copper Alloy (RoHS)
  • Contact: Phosphor Bronze, 50-10" Min Nickel plated with selected 30u" Gold At Mating Interface
  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  • This part is recommended for wave reflow soldering process peak soldering temperaturee is 260℃ MAX 10 SECONDS MAX
  • Operating Temperature: -40 ℃ to +85 ℃, Storage Temperature : -40 to 85 ℃

4. GLGNET 2X4 10G RJ45 Connector (JDWCG4S1038P) Parameters

Part Number JDWCG4S1038P Brand GLGNET
Place of Origin Guangdong of China Certification IECQ QC080000, UL, RoHS, REACH
Product Type  2X4 10G ICM Connector Style Female RJ45 Module Jack
Jack Type RJ45 Connector Type  Modular Jack
Filter With Filter LED Option With Lightpipes
LED Color N/A Panel Stops With
Shielded EMI Tabs Without Applies To  Severs, Switch
Performance Speed 10G BASE-TX Grounding Options Yes
Port Configuration  8P8C Number of Positions  8
Jack Configuration 2X4 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold plating 30u" Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  THT Solder Board Lock With Board Lock
Housing Material  PA9T Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating 

UL 94V-0

5. GLGNET 2X4 10G RJ45 Connector (JDWCG4S1038P) Applications

  • Switch
  • HUBs
  • Router
  • Internet Severs
  • Internet Data Center
  • Work station
  • PCB Boards
  • 5G ( 5 Generation) Network
  • 10G Ethernet

GLGNET 2X4 10G RJ45 Connector 8 Ports Light Pipes CAT6 Cable For 5G Network

6. GLGNET Advantages

  • We support Costom Service;
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory
  • We have our Own Hardware Mold and Plastic Mold Center
  • Has 3 LS-WEDM Machines
  • Has 12 WEDM Machines and 8 CNC Machines
  • Has 20 Grinding Machines and 12 Electrical Discharge Machines
  • Has 30 Stamping Machines
  • Has 55 Plastic Injection Machines
  • Has Automatic Assembly Workshops

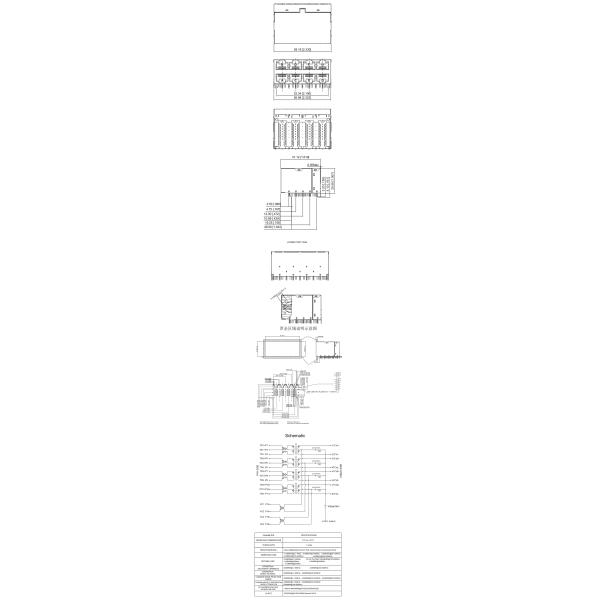

7. GLGNET 2X4 10G RJ45 Connector (JDWCG4S1038P) Mechanical Drawing
