1000 BASE - T RJ45 Single Port Though Hole Vertical / Straight Angle Structure
1000 BASE - T RJ45 Single Port Though Hole Vertical / Straight Angle Structure
1000 BASE - T RJ45 Single Port Though Hole Vertical / Straight Angle Structure
1000 BASE - T RJ45 Single Port Though Hole Vertical / Straight Angle Structure
Specifications
Brand Name :
GLGNET
Model Number :
JHA1S857-GYP - 1
Certification :
ISO 9001, ISO 14001, UL, RoHS, IECQ QC080000,
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20KK ports /month
Delivery Time :
10 work day
Packaging Details :
Tray, Tube, Reel, Carton
Applications :
1000 Base - T
Structure :
Vertical / Straight Angle
LED Color :
Green Yellow
Mount Type :
Though Hole
Contact Finger :
6 U" / 15 U" / 30 U" / 50 U" Gold Plating
Working Temp :
0 to 70 ℃
Description

1000 BASE - T RJ45 Single Port Though Hole Vertical / Straight Angle Structure

1. RJ45 Single Port Features

  • Complies with requirements of IEEE 802.3u IEEE 802.3ab standards
  • RJ45 connector with 10 / 100 / 1000 BASE-TX magnetic, or 2.5G / 5G / 10G Transformer
  • Comply with RoHS requirements
  • Design for 10 / 100 / 1000 / 2.5G / 5G / 10G BASE transmission over UTP-5 / UTP-6 cable
  • Broad set of configurations
  • Supports 10/100Base-T, 1000Base-T, 2.5GBase-T, 5GBase-T or 10G Base - T
  • Compatible with surface-mount with paste-in-hole (PIH) technology
  • -40°C to +85°C or 0°C to +70°C operating temperature range
  • Supports PoE and PoE+ (10/100Base-T)
  • Combinations of green, yellow, orange, and red LEDs

2. RJ45 Single Port ( JHA1S857-GYP ) Attributes:

Brand GLGNET
Part Number JHA1S857-GYP
Application-Lan ETHERNET without POE
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"/50u"
Cores per Port 6
Diodes NO DIODES
LED Option GREEN/YELLOW
Shielding Shielded, EMI Finger
Mounting Type Through Hole
Orientation 180° Angle (Veritcal)
Latch Unavailable
Number of Ports 1X1
PCB FR4
PCB Mount Angle Top ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.665
Package Height (mm) 16.90
Package Length (Inches) 0.630
Package Length (mm) 16
Package Width (Inches) 0.657
Package Width (mm) 16.7
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70 ℃ or -40 to 85 ℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

3. RJ45 Single Port Electrical Specification:

Parameter Specification
Brand GLGNET
Operating Temperature 0℃ to 70 ℃
Turns Ratio 1:1±3%

Open Circuit

Inductance (ocl)

 350uH MIN@ 100KHz/100mV with 8Ma DC Bias
Insertion Loss (IL) -1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

Crosstalk

Adjacent Channels

 -30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR) -30dB MIN @ 1MHz – 100MHZ
HI - POT 2250 VDC @ 60 Seconds

4. RJ45 Single Port LED Specification

Standard LED Wave Length Farward (max) TYP
Green 565 nm 2.4V 2.2V
Yellow 590 nm 2.5V 2.1V

5. RJ45 Single Port RJ45 Single Port Materials

  1. Housing: Class Filled PA46 ( BALCK) UL94V-0 (ROHS)
  2. RJ CONTACT / PLASTIC : Filled PA46 ( BALCK) UL94V-0 (ROHS)
  3. Shield: 0.2mm Thickness With Stainless
  4. Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  5. The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  6. Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 to 85 ℃

6. RJ45 Single Port Applications:

  • Broadcast video
  • Set-top boxes and video
  • Power over Ethernet (PoE)
  • Test and measurement
  • Multifunction printers (MFP)
  • IP cameras, surveillance, and phones
  • Access points
  • Network interface cards (NIC)
  • Industrial process control
  • Networking and communications

7. Why Choose GLGNET?

  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory

8. GLGNET Supports Customization Service

  • Supports to custom different structure, Tab - up or Tab - Down;
  • Supports to custom different Pin Length;
  • Being with or without LED diode,
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -45 ~ 80 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;

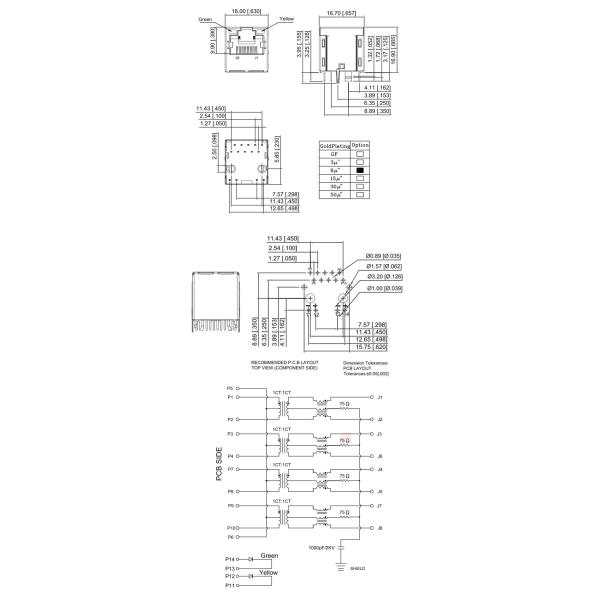

9. RJ45 Single Port Mechnical Drawing

1000 BASE - T RJ45 Single Port Though Hole Vertical / Straight Angle Structure
