1X4 Ports Tab Up POE RJ45 Connector 15U Gold Plating Hubs 8P8C Jack
1X4 Ports Tab Up POE RJ45 Connector 15U Gold Plating Hubs 8P8C Jack
1X4 Ports Tab Up POE RJ45 Connector 15U Gold Plating Hubs 8P8C Jack
1X4 Ports Tab Up POE RJ45 Connector 15U Gold Plating Hubs 8P8C Jack
Specifications
Brand Name :
GLGNET
Model Number :
JGCA4T1004-GY POE
Certification :
ISO9001, ISO1400, IECQ QC080000, UL, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20kkports/month
Delivery Time :
10 working days
Packaging Details :
Tray, Tube, Reel, Carton
POE + :
Yes
Tab :
Up
Port Number :
1 x 4
LED Color :
Green Yellow
Magnetic Speed :
10 / 100 /1000 Base T
EMI Tabs :
Yes
Description

1X4 Ports Tab Up POE RJ45 Connector 15U" Gold Plating Hubs 8P8C Jack

1. POE RJ45 Connector Product ( JGCA4T1004-GY ) Structure:

  • 4 ports 1 X 4 Ganged RJ45 Connector
  • RJ45 Shielding : 0.2mm thickness with Brass,
  • Mount Type : Through hole
  • Latch Up / Tab Up
  • With 1000 Transformer ( Magnetic )
  • With POE + Founction
  • With EMI Finger ( Can be designed without EMI Finger )
  • Without Light Pipe / Light Guide, can be designed as required
  • With Green Yellow LED ( Can be designed as required )
  • Lenght :33.02 mm ( 1.3 inch )
  • Width : 58.24 mm ( 2.293 inch )
  • Height : 13.6mm ( 0.535 inch )
  • Contact Finish : With 15 u" Gold Plating ( also can be with 6u" , 30u" , 50u" Gold Plating )

2. POE RJ45 Connector Materials

  • RJ45 Housing: Class Filled PA46 ( Black ) UL94V-0 (ROHS)
  • RJ45 Contacting: 0.35mm phoshpor Bronze ( C5210 ) Plating over Nickel (ROHS)
  • RJ45 Insert: Class Filled PA46 ( Black ) UL94V-0 (ROHS)
  • RJ45 Solder PIN: 0.35mm Thickness Phos - Bronze ( C2680)
  • RJ45 Sheliding: 0.2mm thickness with Brass
  • Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface;
  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  • The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  • Operating Temperature: 0 to 70 ℃, Storage Temperature : -40 to 85 ℃

3. 1 X 4 ports POE RJ45 Connector ( JGCA4T1004-GY ) Attributes:

Part Number JGCA4T1004-GY Brand GLGNET
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  RJ45 Modular Jack Connector Style RJ45
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch Up
Filter With Filter LED Option Can be with or without LED
LED Color Can Be Green/Yellow/ Orange/ Red etc Panel Stops Without Panel Stops
Shielded Yes Applies To  Ethernet Hubs, Splitters, Switchers
Performance Speed 1000 Base T Grounding Options Panel Ground and PCB Ground
Port Configuration  4 Number of Positions  RJ45 with 8P8C
Jack Configuration 1 x 4 Terminals per Port RJ45 : 8
Shield Material Brass PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole Board Lock Without Board Lock
Housing Material  Rj45 : Glass filled PA46 ( Black ) Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

4. 1 X 4 ports POE RJ45 Connector Applications

Networking equipment

  • Hubs
  • Switches
  • Routers
  • PCs
  • Servers
  • Workstations
  • Motherboards

Equipment utilizing a network port

  • NICs
  • Servers
  • PCs
  • Consumer Devices

5. 1 X 4 ports POE RJ45 Connector Electrical Specification:

Parameter Specification
Brand GLGNET
Operating Temperature 0 to 70 ℃
Turns Ratio 1:1±3%

Open Circuit

Inductance (ocl)

220uH MIN@ 100KHz/100mV with 19mA DC Bias for Channel 1, 2 ,3 , 4

350uH MIN@ 100KHz/100mV with 8mA DC Bias, for Channel 1, 2, 3 ,4
Insertion Loss (IL) -1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

Crosstalk

Adjacent Channels

 -30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR) -30dB MIN @ 1 MHz – 100MHZ
DC Current / VOL Tage Rating PSE Pins

600 mA MAX IMUM @ 57 V DC ( Continuous )

For PSE Channel ( P13 & P14, P15 & P16 )
HI - POT 2250 VDC @ 60 Seconds

6. Customization Services

  • 90 ° or 180 ° Orientation
  • Single Port or Multiple Port, Ganged structure or Stacked Structure;
  • With or without POE function;
  • Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
  • Supports to custom different Pin Length;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • Printing LOGO

7. GLGNET Advantages

  • We have our Own Hardware Mold and Plastic Mold
  • Has 3 LS-WEDM Machines
  • Has 12 WEDM Machines and 8 CNC Machines
  • Has 20 Grinding Machines and 12 Electrical Discharge Machines
  • Has 30 Stamping Machines
  • Has 55 Plastic Injection Machines
  • Has Automatic Assembly Workshops
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory
  • We support Costom Service;
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification

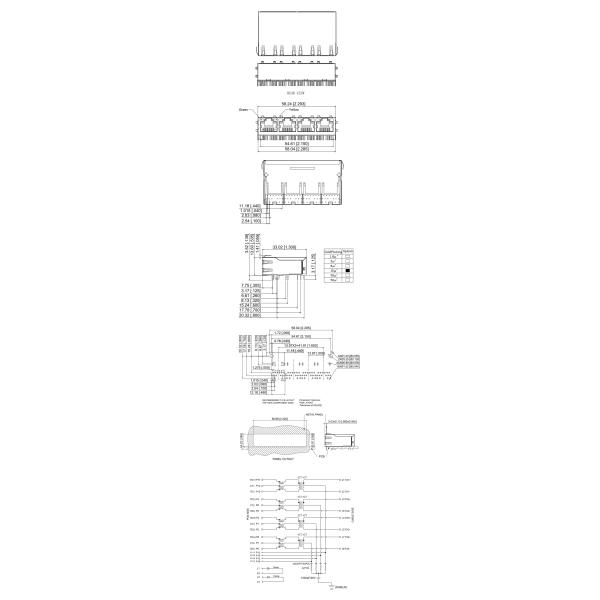

8. 1 X 4 ports POE RJ45 Connector Mechnical Drawing

1X4 Ports Tab Up POE RJ45 Connector 15U
