90 ° Magnetic RJ45 Connector Assembly Tab Down 10 / 100 / 1000 Base - T

GLGNET JPEPA1T89U is RJ45 connector with Magnetic / Transformer,

Can support 10 / 100 / 1000 Base - T , meet IEEE 802.3u Standards;

This RJ45 Modular Jack is with one port,

It can be used for Network Servers, Routers, Set - TV Box, PCs, Switchers, Spliters, and some other adapters;

The RJ45 Ethernet connector can be with POE function,

We can make integrated Transformer to Support 2.5G / 5G even 10G Transmission Speed;

The RJ45 Connector Lenght is 25.2 mm ( 0.992 inch), width is 16.7 mm ( 0.657 inch ) , height is 11.3 mm (0.445 inch );

Tab Down / Latch Down Structure, with EMI fingers, through hole / offset / PIP mount Type;

The RJ45 Jack is without LED, but is can be designed with LED;

The contact Finish can be with 6 u" / 15 u" / 30 u" / 50 u" Gold Plating;

We can custom RJ45 connector according to your requirements;

1. Features

• Broad set of configurations
• Supports 10/100Base-T, 1000Base-T
• Compatible with surface-mount with paste-in-hole (PIH) technology
• -40°C to +85°C or 0°C to +70°C operating temperature range
• Complies with requirements of IEEE 802.3u standards
• RJ45 connector with 10 / 100 /1000 BASE-TX magnetic
• Design for 10 / 100 / 1000 BASE transmission over UTP-5 cable
• Comply with RoHS requirements

2. Materials

• Housing: Class Filled LCP UL94V-0 (ROHS)
• Shielding : 0.2mm thickness with Brass
• Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 6 Microinches Gold At Mating Interface
• Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
• The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
• Operating Temperature: 0 to 70 ℃, Storage Temperature : -40 to 85 ℃

3. Magnetic RJ45 Connector ( JPEPA1T89U ) Attributes:

4. Electrical Specification:

5. Customization Services

• 90 ° or 180 ° Orientation
• Single Port or Multiple Port, Ganged Structure or Stacked Structure;
• With or without POE function;
• Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
• Supports to custom different Pin Length;
• LED color can be green, yellow, orange, red and so on;
• Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
• Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
• Being with or without LED diode,
• Being with or without EMT TAB ( EMI Spring , EMI Finger );
• Being with or without lightpipes;
• Printing LOGO

6. Applications:

Networking equipment

• Hubs
• Switches
• Routers
• PCs
• Servers
• Workstations
• Motherboards

Equipment utilizing a network port

• NICs
• Servers
• PCs
• Consumer Devices

• 20 years experiences in RJ45 Connector with Integrated Transformer
• 1500 Experienced Workers
• 58 R&D Engineers.
• 22000 square meters Factory
• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Ports / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops

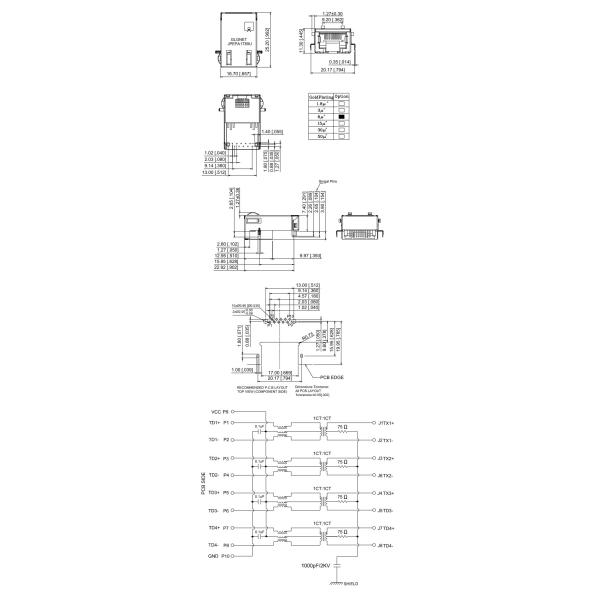

8. Drawing
