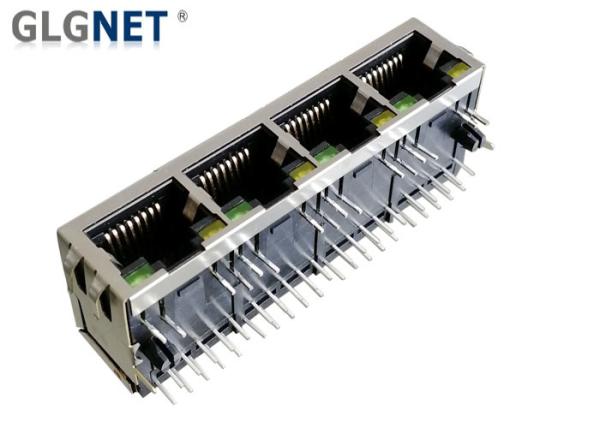

Magnetic RJ45 Connector 1 x 4 ports Ganged RJ45 Modular Jack Tab Down Green Yellow LED

1. GLGNET Magnetic RJ45 Connector ( JLFA4T802-GY ) Structure:

• Mount Type : Through hole
• Latch Down / Tab Down
• 4 Ports / 1 x 4 Ports
• 1 Rows
• Lenght :21.35 mm ( 0.841 inch )
• Width : 41.91mm ( 1.650 inch )
• Height : 13.62 mm (0.536 inch )
• Contact Finish : With 6 u" Gold Plating ( also can be with 15u" , 30u" , 50u" Gold Plating )
• With 10 / 100 / 1000 Base -T Transformer ( Magnetic )
• With EMI Spring ( Can be designed without EMI Finger ),
• With Green Yellow LED
• Without Stand - off

2. Materials

• Housing: Class Filled PA46 UL94V-0 (ROHS)
• Insert: Class Filled PA46 UL94V-0 (ROHS)
• Sheliding: 0.2mm thickness with Brass
• Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 6 Microinches Gold At Mating Interface
• Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
• The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
• Operating Temperature: 0 to 70 ℃, Storage Temperature : -40 to 85 ℃

3. Electrical Specification:

4. Magnetic RJ45 Connector ( JLFA4T802-GY ) Attributes:

5. LED Specification

6. Customization Services

• 90 ° or 180 ° Orientation
• Single Port or Multiple Port, Ganged structure or Stacked Structure;
• With or without POE function;
• Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
• Supports to custom different Pin Length;
• LED color can be green, yellow, orange, red and so on;
• Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
• Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
• Being with or without LED diode,
• Being with or without EMT TAB ( EMI Spring , EMI Finger );
• Being with or without lightpipes;
• Printing LOGO

7. Applications:

• Network Servers
• Internet of Things (Ethernet)
• IP cameras, surveillance, and phones
• Access points
• Network interface cards (NIC)
• Industrial process control
• Networking and communications
• Broadcast video
• Set-top boxes and video
• LED TV
• SMart TV
• STB
• HUBs
• PCs
• Router,
• Splitter
• Switcher

• 20 years experiences in Magnetic RJ45 Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops

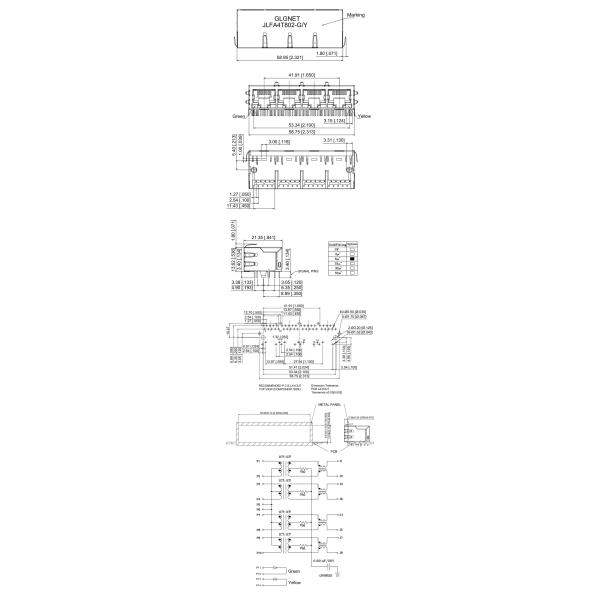

9. Mechnical Drawing
