Right Angle Female USB Type C Connector 16 PIN SMT USB 3.1 Standards

1. GLGNET USB Type-C Female Connector Structure:

• 16 PIN Female Connector

• 90 degrees orientation

• SMT Mounting Type

• USB Type-C Female Connector Outline Length: 6.5 mm

• USB Type-C Female Connector Outline Width : 11.24 mm

• USB Type-C Female Connector Outline Height : 3.16 mm

2. GLGNET USB Type-C Female Connector Features

• Supports MAX 10Gbps Data Transmission Speed
• Supports Max 100 Power Transmission
• Backward-compatible with other USB Connector Types
• Support Hot Plugging
• Thinner size 8.2 mm x 2.5 mm,
• Support Double-sided plug and unplug
• Comply with USB 3.1 Standards

3. GLGNET USB Type-C Female Connector Material and Plating

• HOUSING: LCP+40%GF 94 V0,COLOUR:BL ACK.
• CONTACTS:SPECIAL COPPER
• SHELL :STAINLESS STEEL .
• EMC PAD:STAINLESS STEEL
• CONTACTS: 50u" MIN Ni UNDERPLATED OVER ALL
• Au 15u" MIN PLATED ON THE FUNCTIONAL AREA OF CONTACT100u" MIN MATTE TIN PLATED ON SOLDER AREA
• SHELL/EMC: Ni 50u MIN PLATED OVER ALL.
• THE PEAK TEMPERATURE ON THE BOARD SHALLMAINTAIN 10 SECONDS AT 260 ±5 ℃.

4. GLGNET USB Type-C Female Connector PIN Assignments:

5. GLGNET USB Type-C Female Connector ELECTRICAL PERFORMANCE:

• CURRENT RATING:VBUS PINS 5A,GND PINS 1 .25A,
• OTHER PINS: 0.25A.
• VOLTAGE RATING:5V
• LLCR: VBUS & GND PINS: 40mΩ/PIN MAX.
• OTHER PINS: 40mΩ/PIN MAX.
• LLCR MAX. CHANGE OF ALL PINS: 10mΩ.
• INSUL ATION RESISTANCE: 100mΩ MIN.
• OPERATING TEMPERATURE: 55'C~+85C.

6. GLGNET USB Type-C Female Connector Mechanical Performance

• MATING FORCE: 0.5~2.0 Kgf.
• UNMATING FORCE: 0.8~2.0 Kgf(1~ 1000CYCLES).
• UNMATING FORCE: 0.6~2.0Kgf( 1001 ~ 10000CYCLES).
• DURABILITY: 10000 CYCLES.

7. GLGNET Advantages

• 20 years experiences in Variety Connectors
• GLGNET support custom service as required
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops
• Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;

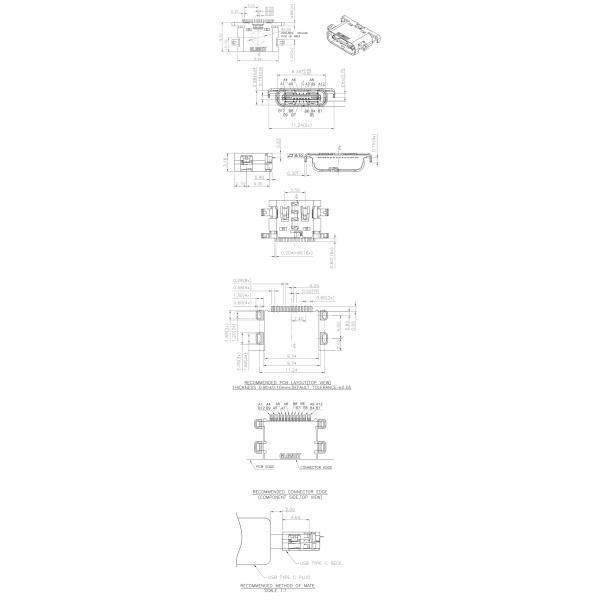

8. Mechnical Drawing
