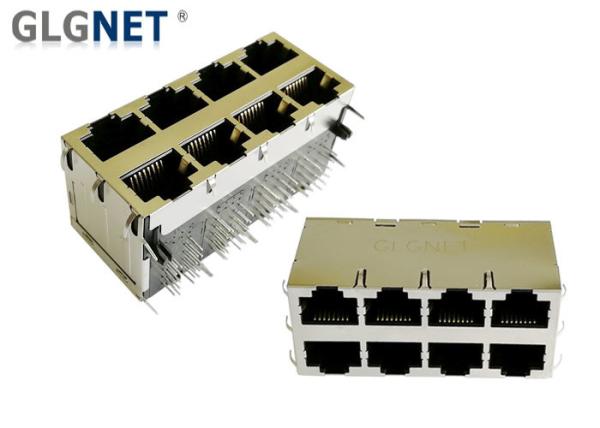

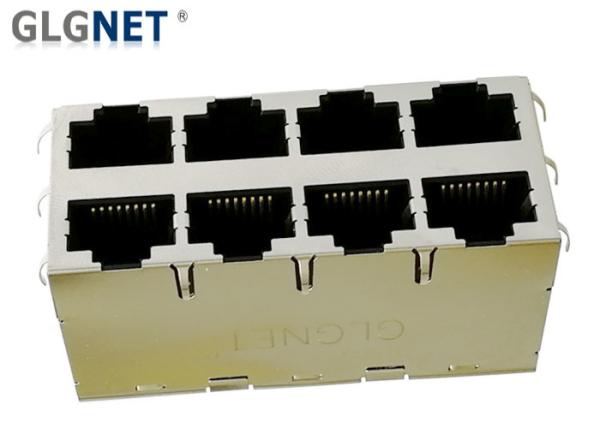

RJ45 Multiple Port Connectors 1000 Base - T Stacked RJ45 Jacks with Transformers

GLGNET 2 x 4 RJ45 Jacks with Integrated Transformer supports a wide range of configurations in 1000 Base-T applications. Complies with requirement of IEEE802.3ab standard. Design for 1000 BASE transmission over UTP-6 cable. Complies with RoHS requirements.

1. Electrical Specification:

Parameter Specification
Brand GLGNET
Operating Temperature 0 to 70 ℃
Turns Ratio 1:1±3%

Open Circuit

Inductance (ocl)

 350uH MIN@ 100KHz/100mV with 8mA DC Bias
Insertion Loss (IL) -1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

Crosstalk

Adjacent Channels

 -30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR) -30dB MIN @ 1MHz – 100MHZ
HI - POT 2250 VDC @ 60 Seconds

2. Magnetic RJ45 Connector (JDMA4T826-GY) Attributes:

Part Number JDMA4T826-GY Brand GLGNET
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch Up / Down
Filter With Filter LED Option Can be with or without LED
LED Color Green/Yellow/ Orange/ Red etc Panel Stops Without Panel Stops
Shielded Yes Applies To  Switcher Splitter
Performance Speed 1000 BASE-T Grounding Options Panel Ground and PCB Ground
Port Configuration  2 x 4 Number of Positions  16
Jack Configuration 2 x 4 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole Board Lock Without Board Lock
Housing Material  PA46 Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

3. Advantages:

  • 20 years experiences in Magnetic RJ45 Connector
  • 1500 Employees
  • 58 R&D Engineers
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification.
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on

4. Applications:

  • Network interface cards (NIC)
  • Industrial process control
  • Networking and communications
  • Broadcast video
  • Storage
  • Set-top boxes and video
  • Power over Ethernet (PoE)
  • Test and measurement
  • Multifunction printers (MFP)
  • Internet of Things (Ethernet)
  • IP cameras, surveillance, and phones
  • Access points

5. Mechanical Drawing:

RJ45 Multiple Port Connectors 1000 Base T

RJ45 Multiple Port Connectors 1000 Base T

RJ45 Multiple Port Connectors 1000 Base T

RJ45 Multiple Port Connectors 1000 Base T
