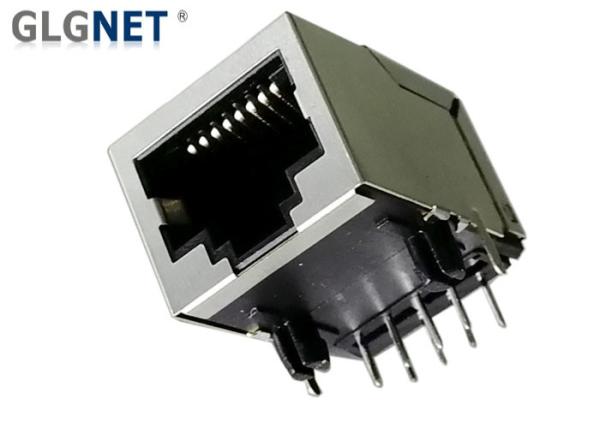

Copper Alloy RJ45 8P8C Modular Connector Jacks With Integrated Transformer


GGLGNET RJ45 Single Port with internal magnetics supports a wide range of configurations in 10/100Base-T applications. Complies with requirement of IEEE802.3u standard. Design for 10/100 BASE transmission over UTP-5 cable. Complies with RoHS requirements.


1. RJ45 Single Port Features

• With or without POE Function
• 90 ° or 180° Orentation
• Complies with requirements of IEEE 802.3u or IEEE 802.3ab standards
• RJ45 connector can be with 10 / 100 / 1000 / 2.5G / 5G / 10G magnetic
• Comply with RoHS, REACH, UL requirements
• Broad set of configurations
• -40°C to +85°C or 0°C to +70°C operating temperature range
• Combinations of green, yellow, orange, and red LEDs

2. RJ45 Single Port Materials

• Housing: Class Filled PA46 UL94V-0 (ROHS)
• Sheliding: 0.2mm thickness With Brass (RoHS)
• Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface
• Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
• All the Raw materials meet RoHS
• Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 to 85 ℃

3. RJ45 Single Port Electrical Specification

Electrical Specification @ 25 Degree

4. RJ45 Single Port Applications:

• Internet of Things (Ethernet)
• IP cameras, surveillance, and phones
• Access points
• Network interface cards (NIC)
• Industrial process control
• Networking and communications
• Broadcast video
• Storage
• Set-top boxes and video
• Power over Ethernet (PoE)
• Test and measurement
• Multifunction printers (MFP)

5. GLGNET Advantages:

• 20 years experiences in Magnetic RJ45 Connector
• 1500 Employees
• 58 R&D Engineers
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification.
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on

6. RJ45 Single Port Schematic:
