Magnetic RJ45 Connector 10 / 100 Base - T RJ45 USB Connector Tab Up USB 2.0

1. GLGNET RJ45 USB Connector with Magnetic ( ULBU1T435 ) Structure:

• RJ45 Connector + USB 2.0 Connector
• Mount Type : Through hole
• Latch Up / Tab Up
• One Port is RJ45, One Port is USB 2.0
• With 10 / 100 Transformer ( Magnetic )
• With EMI Finger ( Can be designed without EMI Finger ),
• Without LED ( Can be designed with LED, LED color can be Green, Yellow, Orange, Red etc;)
• Without Stand - off
• RJ45 Shielding : 0.2mm thickness with Brass,
• USB 2.0 Shielding : 0.2mm thickness Brass
• Lenght :28.5 mm ( 1.122 inch )
• Width : 16.8 mm (0.661 inch )
• Height : 21 mm ( 0.827 inch )
• Contact Finish : With 6 u" Gold Plating ( also can be with 15u" , 30u" , 50u" Gold Plating )

2. Features

• RJ45 Connector Complies with requirements of IEEE 802.3u standards
• USB 2.0 Connector supports 480Mbps Transmission Speed, Compatible with USB 1.1
• Comply with RoHS, REACH, UL requirements
• Broad set of configurations
• -40°C to +85°C or 0°C to +70°C operating temperature range
• RJ45 connector can be with 10 / 100 / 1000 / 2.5G / 5G / 10G Magnetic / Transformer

3. Electrical Specification:

4. GLGNET RJ45 USB Connector with Magnetic ( ULBU1T435 ) Attributes:

5. Materials

• USB 2.0 Housing : PBT ( Black ) UL94V-0 (ROHS)
• RJ45 Housing: Class Filled PA46 ( Black ) UL94V-0 (ROHS)
• USB 2.0 Shielding : Brass
• RJ45 Sheliding: 0.2mm thickness with Brass
• RJ45 Contact: Phosphor Bronze, 6U" AU Plated In Contact Area, 100U" MIN Matte Tin Plated in Solder Area, 50U" MIN Nickel Underplate Overall,
• Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
• The Part is recommended for wave soldering process peak soldering temperature is 265 ℃ MAX. 10 Seconds Max;
• Operating Temperature: 0 to 70 ℃, Storage Temperature : -40 to 85 ℃

6. Customization Services

• 90 ° or 180 ° Orientation
• Single Port or Multiple Port, Ganged structure or Stacked Structure;
• With one USB 2.0 port or 2 USB 2.0 port
• With or without POE function;
• Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
• Supports to custom different Pin Length;
• LED color can be green, yellow, orange, red and so on;
• Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
• Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
• Being with or without LED diode,
• Being with or without EMT TAB ( EMI Spring , EMI Finger );
• Being with or without lightpipes;
• Printing LOGO

7. Applications:

• Internet of Things (Ethernet)
• IP cameras, surveillance, and phones
• Access points
• Network interface cards (NIC)
• Industrial process control
• Networking and communications
• Broadcast video
• Set-top boxes and video
• LED TV
• SMart TV
• STB
• HUBs
• PCs
• Router,
• Splitter
• Switcher

8. GLGNET Advantage

• 20 years experiences in Magnetic RJ45 Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops

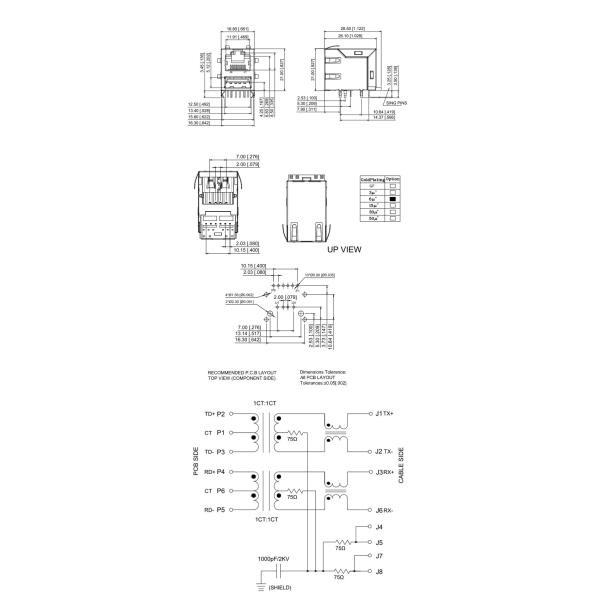

9. Mechnical Drawing
