Magnetic RJ45 Connector 2 x 4 RJ45 Multiple Port Connectors Through Hole Mounting 1000 Base T
Magnetic RJ45 Connector 2 x 4 RJ45 Multiple Port Connectors Through Hole Mounting 1000 Base T
Magnetic RJ45 Connector 2 x 4 RJ45 Multiple Port Connectors Through Hole Mounting 1000 Base T
Magnetic RJ45 Connector 2 x 4 RJ45 Multiple Port Connectors Through Hole Mounting 1000 Base T
Specifications
Brand Name :
GLGNET
Model Number :
JDKA4T807 - 1
Certification :
ISO9001, ISO1400, IECQ QC080000, UL, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20kkports/month
Delivery Time :
10 working days
Packaging Details :
Tray, Tube, Reel, Carton
Turns Ratio (+/- 5%) TX :
1CT:1CT
Turns Ratio (+/- 5%) RX :
1CT:1CT
Insertion Loss (dB Max) 0.3-100MHZ 100BASE :
-1.1
HI-POT :
2250 V DC @ 60 Seconds
Application :
1000 Base T Ethernet
Port Number :
2 x 4
Description

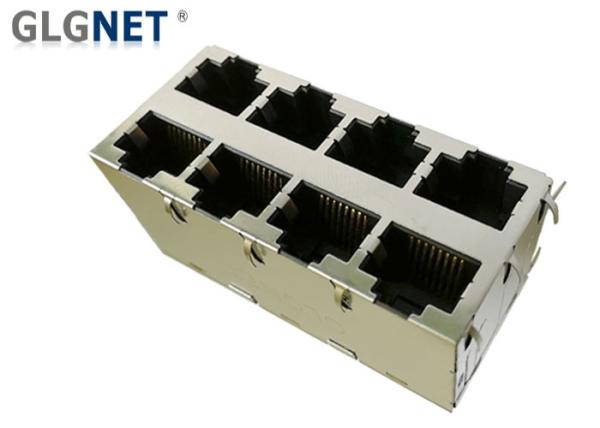

Magnetic RJ45 Connector 2 x 4 RJ45 Multiple Port Connectors Through Hole Mounting 1000 Base T

1. 2 x 4 Magnetic RJ45 Connector Features

Number of Ports 2 x 4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

2. 2 x 4 Magnetic RJ45 Connector Applications

  • Networking equipment
    • Hubs
    • Switches
    • Routers
    • PCs
    • Servers
    • Workstations
    • Motherboards

  • Equipment utilizing a network port
    • NICs
    • Servers
    • PCs
    • Consumer Devices

3. Our Advantages:

  • 20 years experiences in Magnetic RJ45 Connector
  • 1500 Employees
  • 58 R&D Engineers.
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • We have our Own Hardware Mold and Plastic Mold
  • Has 3 LS-WEDM Machines
  • Has 12 WEDM Machines and 8 CNC Machines
  • Has 20 Grinding Machines and 12 Electrical Discharge Machines
  • Has 30 Stamping Machines
  • Has 55 Plastic Injection Machines
  • Has Automatic Assembly Workshops

4. 2 x 4 Magnetic RJ45 Connector ( JDKA4T807 ) Attributes:

Part Number JDKA4T807 Brand GLGNET
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  RJ45 Modular Jack Connector Style RJ45
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch Unavailable
Filter With Filter LED Option Can be with or without LED
LED Color Can Be Green/Yellow/ Orange/ Red etc Panel Stops Without Panel Stops
Shielded Yes Applies To  Ethernet Hubs, Splitters, Switchers
Performance Speed 1000 Base T Grounding Options Panel Ground and PCB Ground
Port Configuration  8 Number of Positions  RJ45 with 8P8C
Jack Configuration 2 x 4 Terminals per Port RJ45 : 8
Shield Material Brass PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole Board Lock Without Board Lock
Housing Material  Rj45 : Glass filled PA46 ( Black ) Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

5. 2 x 4 Magnetic RJ45 Connector Materials

  • Housing: Class Filled PBT UL94V-0 (ROHS)
  • Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 6 Microinches Gold At Mating Interface;
  • Shield: 0.2mm Thickness With Brass
  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  • The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  • Operating Temperature: 0 ℃ to +70 ℃
  • Storage Temperature: -40 ℃ to +85 ℃

6. Customization Services

  • 90 ° or 180 ° Orientation
  • Single Port or Multiple Port, Ganged structure or Stacked Structure;
  • With or without POE function;
  • Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
  • Supports to custom different Pin Length;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • Printing LOGO

7. 2 x 4 Magnetic RJ45 Connector Mechanical Drawing
