High Technology Roots Blower Consolidated For Electroplating Plant Factory
High Technology Roots Blower Consolidated For Electroplating Plant Factory
High Technology Roots Blower Consolidated For Electroplating Plant Factory
High Technology Roots Blower Consolidated For Electroplating Plant Factory
Specifications
Brand Name :
Frezer
Certification :
CE, ISO9001, ISO14001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
3,000 Units/Month
Delivery Time :
5-8 work days
Packaging Details :
Packed in wooden cases
Product Name :
High Technology Roots Blower
Place Of Origin :
China
Package :
Wooden Case
Payment Methods :
T/T, L/C
Factory Production Capacity :
3,000 Units/Month
MOQ :
1 Set
Applications :
Electroplating Plant Factory
Bore :
50A-300A
Description

High Technology Consolidated Roots Blower for Electroplating Plant Factory

Product Introduction

The model number, bore, r.p.m, discharge pressure, air capacity, and required power of the blower are listed in the performance tables.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm2 (101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm2 (101.3kpa) absolute pressure) is generally indicated in Nm3/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m3/min); and

QN: reference air capacity (m3/min).

The discharge air capacity can be converted into the standard air capacity by the following equation.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m3/min;

Pd : discharge pressure, in Kgf/cm2,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

The model number, bore, r.p.m, discharge pressure, air capacity, and required power of the blower are listed in the performance tables.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Pressure Pa Bar Kgf/cm2 atm mmH2O MmHg(Torr)
1
1×105
9.806 65×104
1.013 25×105
9.806 65
1.333 22×102		 1×105
1
9.806 6525×10-1
1.013 25
9.806 6525×10-5
1.333 2225×10-3		 1.019 72×10-5
1.019 72
1
1.033 23
1×10-4
1.359 51×10-3		 9.869 23×10-6
9.869 23×10-1
9.678 41×10-1
1
9.678 41×10-5
1.315 79×10-3		 1.019 72×10-1
1.019 72×104
1×104
1.033 23×104
 1
1.359 51×10		 7.500 62×10-5
7.500 62×102
7.355 59×102
7.600 00×102
7.355 59×10-2
1

Product Specification

High Technology Roots Blower Consolidated For Electroplating Plant Factory

Mark
Type		 Bore A B C D E F G H J
SR-50 50A 570 179 135 895 152 230 540 420 60
SR-65 65A 610 202 145 970 192 230 600 440 80
SR-80 80A 700 225 165 1130 217 280 650 500 75
SR-100 100A 900 265 175 1255 234 280 850 630 110
SR-125 125A 945 294 205 1525 260 355 920 710 105
SR-150 150A 1155 377 225 1745 305 400 1150 950 100
SR-175 200A 1300 457 245 1765 305 520 1330 1030 150
SR-200 200A 1570 550 276 2230 405 591 1600 1300 150
SR-250 250A 1847 596 445 2790 520 760 2200 1800 2300
SR-300 300A 2167 683 470 2805 520 750 2500 2040 230

Mark
Type		 Bore K L M N O P Q R n-Φ1 Weight
SR-50 50A ― ― 260 220 122 20 80 60 4-Φ14 72
SR-65 65A ― ― 300 260 122 20 80 80 4-Φ14 84
SR-80 80A ― ― 370 330 147 20 80 75 4-Φ19 132
SR-100 100A ― ― 400 360 114 20 80 110 4-Φ19 168
SR-125 125A 355 355 430 390 175 20 100 105 6-Φ19 245
SR-150 150A 475 475 500 455 190 22.5 100 165 6-Φ19 408
SR-175 200A 515 515 500 455 310 22.5 100 240 6-Φ19 505
SR-200 200A 650 650 650 605 348 22.5 126 240 6-Φ19 900
SR-250 250A 900 900 950 870 250 40 140 250 6-Φ24 1653
SR-300 300A 1020 1020 950 870 240 40 140 270 6-Φ24 2132

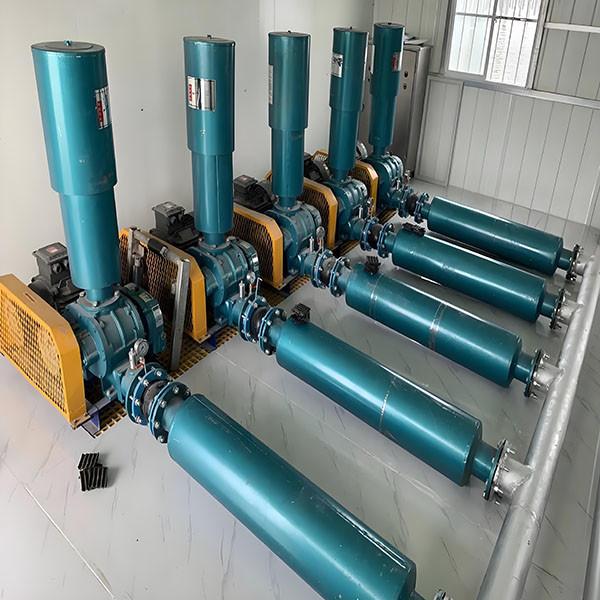

Product Show

High Technology Roots Blower Consolidated For Electroplating Plant Factory

High Technology Roots Blower Consolidated For Electroplating Plant Factory

Manufacturer Introduction

Frezer Technology Co., Ltd. is a modern high-tech enterprise specializing in the design, manufacturing, and sales of air suspension blowers. Founded in 2007 and headquartered in Chongqing—a national hub for technological innovation in western China and a renowned historical and cultural city—the company is one of the few global manufacturers with patented hybrid bearing technology.

Guided by the corporate philosophy of "Inclusivity Welcomes the World," we prioritize talent development. Our professional technical team, skilled workforce, cutting-edge equipment, and stringent management practices drive continuous growth, while our dedicated service ensures customer trust. We are committed to providing global clients with ultimate energy-saving air power equipment and system solutions.

Frezer Technology Co., Ltd. is revolutionizing more than just technology—it has pioneered a new era in the centrifugal compressor industry. Compared to traditional centrifugal blowers, our solutions reduce electricity consumption and energy costs by over 30%. Featuring a 100% oil-free system that eliminates maintenance needs, we significantly lower operational expenses for customers, revolutionizing the centrifugal machinery industry, we deliver cutting-edge energy-saving and eco-friendly blower technology for the future.

High Technology Roots Blower Consolidated For Electroplating Plant FactoryHigh Technology Roots Blower Consolidated For Electroplating Plant Factory

Our Service

Supported by a professional team of engineers and technicians with decades of industry experience, we provide tailor-made Roots blower solutions customized to your specific requirements. Our experts offer end-to-end support, covering design, installation, maintenance, and optimization, to ensure seamless integration with your operations.
We take pride in our reliable technology, employing advanced manufacturing processes and precision testing to ensure excellent performance, durability, and energy efficiency. Each Roots blower is subjected to strict quality inspections to meet international standards, reducing downtime and maximizing productivity.
By combining our professional team, reliable technology, and 24-hour service, we are dedicated to being your long-term partner, providing efficiency, durability, and worry-free operation.

Applications

  • Wastewater Treatment Plant
  • Cement Plant
  • Steel Mill
  • Chemical Powder Handling Plant
  • Flue Gas Desulfurization Plant
  • Electroplating Plant
  • Sandblasting Facility
  • Electronics Manufacturing Plant
  • Food Processing Plant
  • Pharmaceutical Manufacturing Plant
  • Paper Mill
  • Textile Mill
  • Dyeing and Printing Plant
