Integration Pneumatic Conveying Blowers For Cement Plant 50A - 300A Bore
Integration Pneumatic Conveying Blowers For Cement Plant 50A - 300A Bore
Integration Pneumatic Conveying Blowers For Cement Plant 50A - 300A Bore
Integration Pneumatic Conveying Blowers For Cement Plant 50A - 300A Bore
Specifications
Brand Name :
Frezer
Certification :
CE, ISO9001, ISO14001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
3,000 Units/Month
Delivery Time :
5-8 work days
Packaging Details :
Packed in wooden cases
Product Name :
Whole Pneumatic Conveying Blower
Place Of Origin :
China
Payment Methods :
T/T, L/C
Applications :
Aluminum plant
Bore :
50A-300A
Production Time :
Shipment Within 7 Days After Payment Receipt
MOQ :
1 Set
Package :
Wooden Case
Description

Integration Whole High Efficiency Pneumatic Conveying Blower for Cement Plant

Product Introduction

Performance charts list blower specifications: model, bore, RPM, output pressure, air volume, and required power.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm2 (101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm2 (101.3kpa) absolute pressure) is generally indicated in Nm3/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m3/min); and

QN: reference air capacity (m3/min).

One can convert the discharge air capacity to the standard air capacity via the equation below.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m3/min;

Pd : discharge pressure, in Kgf/cm2,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

Refer to the performance table with your computed airflow volume and discharge pressure values to select the appropriate model, bore diameter, rotational speed (RPM), and power rating.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Pressure Pa Bar Kgf/cm2 atm mmH2O MmHg(Torr)
1
1×105
9.806 65×104
1.013 25×105
9.806 65
1.333 22×102		 1×105
1
9.806 6525×10-1
1.013 25
9.806 6525×10-5
1.333 2225×10-3		 1.019 72×10-5
1.019 72
1
1.033 23
1×10-4
1.359 51×10-3		 9.869 23×10-6
9.869 23×10-1
9.678 41×10-1
1
9.678 41×10-5
1.315 79×10-3		 1.019 72×10-1
1.019 72×104
1×104
1.033 23×104
 1
1.359 51×10		 7.500 62×10-5
7.500 62×102
7.355 59×102
7.600 00×102
7.355 59×10-2
1

Product Specification

Integration Pneumatic Conveying Blowers For Cement Plant 50A - 300A Bore

Mark
Type		 Bore A B C D E F G H J
SR-50 50A 570 179 135 895 152 230 540 420 60
SR-65 65A 610 202 145 970 192 230 600 440 80
SR-80 80A 700 225 165 1130 217 280 650 500 75
SR-100 100A 900 265 175 1255 234 280 850 630 110
SR-125 125A 945 294 205 1525 260 355 920 710 105
SR-150 150A 1155 377 225 1745 305 400 1150 950 100
SR-175 200A 1300 457 245 1765 305 520 1330 1030 150
SR-200 200A 1570 550 276 2230 405 591 1600 1300 150
SR-250 250A 1847 596 445 2790 520 760 2200 1800 2300
SR-300 300A 2167 683 470 2805 520 750 2500 2040 230

Mark
Type		 Bore K L M N O P Q R n-Φ1 Weight
SR-50 50A ― ― 260 220 122 20 80 60 4-Φ14 72
SR-65 65A ― ― 300 260 122 20 80 80 4-Φ14 84
SR-80 80A ― ― 370 330 147 20 80 75 4-Φ19 132
SR-100 100A ― ― 400 360 114 20 80 110 4-Φ19 168
SR-125 125A 355 355 430 390 175 20 100 105 6-Φ19 245
SR-150 150A 475 475 500 455 190 22.5 100 165 6-Φ19 408
SR-175 200A 515 515 500 455 310 22.5 100 240 6-Φ19 505
SR-200 200A 650 650 650 605 348 22.5 126 240 6-Φ19 900
SR-250 250A 900 900 950 870 250 40 140 250 6-Φ24 1653
SR-300 300A 1020 1020 950 870 240 40 140 270 6-Φ24 2132

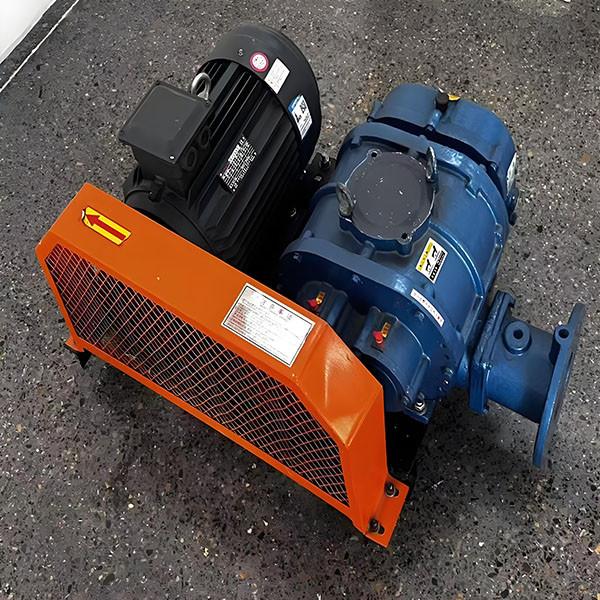

Product Show

Integration Pneumatic Conveying Blowers For Cement Plant 50A - 300A Bore

Integration Pneumatic Conveying Blowers For Cement Plant 50A - 300A Bore

Our Service

With a professional team of engineers and technicians boasting decades of industry expertise, we deliver personalized Roots blower solutions adapted to your unique needs. Our specialists provide full-cycle assistance, from design and installation to maintenance and optimization, ensuring smooth integration with your operations.
We take pride in our reliable technology, employing advanced manufacturing processes and precision testing to ensure excellent performance, durability, and energy efficiency. Each Roots blower is subjected to strict quality inspections to meet international standards, reducing downtime and maximizing productivity.
Recognizing that industrial operations operate around the clock, we provide 24-hour service to address emergencies and technical issues in a timely manner. Our committed support team is always on standby, offering remote diagnostics, on-site repairs, and spare parts to keep your systems running without interruptions.

Applications

  • Wastewater Treatment Plant
  • Cement Plant
  • Steel Mill
  • Chemical Powder Handling Plant
  • Flue Gas Desulfurization Plant
  • Electroplating Plant
  • Sandblasting Facility
  • Electronics Manufacturing Plant
  • Food Processing Plant
  • Pharmaceutical Manufacturing Plant
  • Paper Mill
  • Textile Mill
  • Dyeing and Printing Plant

Transaction Process

  • Get requirements to match products
  • Quotation
  • Receive payment
  • Production
  • Packed in wooden cases
  • Delivery
  • Feedback

Payment Methods

T/T,L/C,West Union,Alibaba Trade Insurance,AliPay
