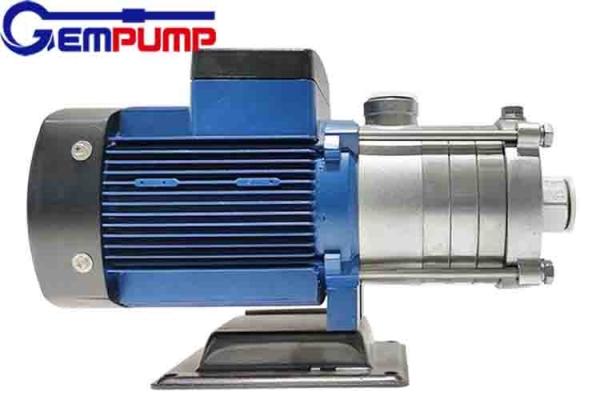

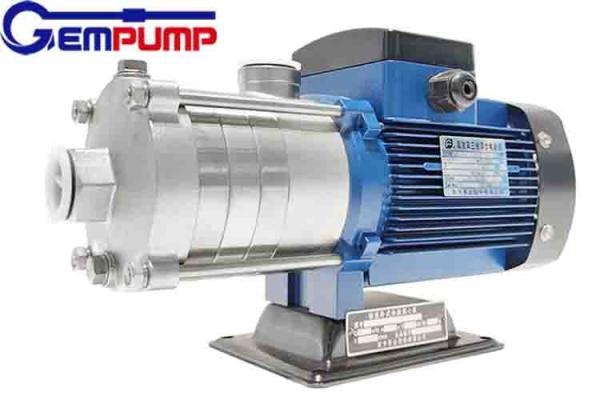

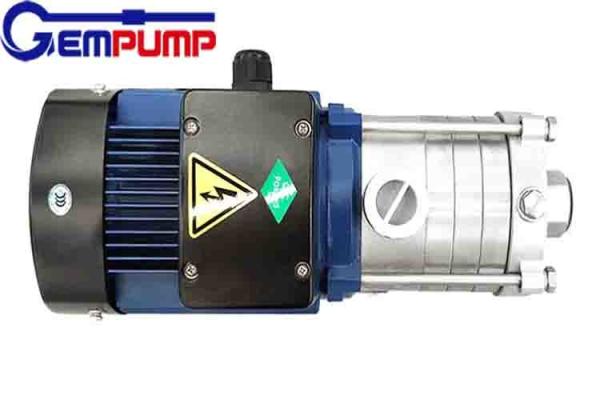

CHLF 8M3/H SS304 Horizontal Multistage Centrifugal Pump Single Phase 60HZ
CHLF 8M3/H SS304 Horizontal Multistage Centrifugal Pump Single Phase 60HZ
CHLF 8M3/H SS304 Horizontal Multistage Centrifugal Pump Single Phase 60HZ
CHLF 8M3/H SS304 Horizontal Multistage Centrifugal Pump Single Phase 60HZ
CHLF 8M3/H SS304 Horizontal Multistage Centrifugal Pump Single Phase 60HZ
CHLF 8M3/H SS304 Horizontal Multistage Centrifugal Pump Single Phase 60HZ
CHLF 8M3/H SS304 Horizontal Multistage Centrifugal Pump Single Phase 60HZ
CHLF 8M3/H SS304 Horizontal Multistage Centrifugal Pump Single Phase 60HZ
Specifications
Brand Name :
Gempump
Model Number :
CDL2-15
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1 set
Price :
1000 USD/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 SET/Month
Delivery Time :
5-8 working days
Packaging Details :
Ply wooden box
Product :
CNP SHLF Stainless Steel Centrifugal Pump
Principle :
Centrifugal
Applications :
Chemical
Power :
Electric Motor
Voltage :
AC220V AC380V AC415V/50HZ
Temperature :
80°C (176°F)
Connection :
Flange
Position :
Horizontal / Vertical
Material :
Stainless steel 304/316
Seal :
Mechanical seal
Description

CNP CHLF(T)8 Stainless Steel Horizontal Multistage Centrifugal Booster Electric Water Pump

Product Description
Product name
China Supply CHLF(T)8 60HZ Stainless Steel Horizontal Multistage Centrifugal Booster Electric Water Pump
Material
Stainless Steel(Except Flow Passage Components)
Packaging
Wooden case or carton box will be provided.

Centrifugal Stainless Steel Water Pump Product Model

CHLF 8M3/H SS304 Horizontal Multistage Centrifugal Pump Single Phase 60HZ

Electric Motor for Light Horizontal Multistage Centriufgal Booster Water Pump
TEFC motor 2-pole
Protection class:IP 55
Insulation class:F
Standard voltage: 50Hz: 1x 220-240V
3x220-240V/380-415V
Standard voltage: 60Hz: 1x 220-240V
3 ×220-240V/380-415V
Single phase motor(max) :2.4kW
Stainless Steel Horizontal Centrifugal Booster Water Pump Operation condition
Liquid temperature: Normal temperature type:-15℃-+70℃
Hot water type:-15℃-+110℃
Ambient temperature:up to+40℃
Max.operation pressure:10bar
Max.inlet pressure is limited by max.Operation pressure
CNP Water Pump Curve Conditions
Following conditions are suitable for the performance curves shown above.
All curves are based on the measured values of 50Hz: constant motor speed 2900r/min
60Hz:constant motor speed 3500r/min；
Curve tolerance in conformity with ISO9906: 2012, 3B.
Measurement is done with 20℃air-free water, kinematic viscosity of lmm-/sec.
The operation of pump shall refer to the performance region described by the thickened curve to prevent overheating due to too small flow rate or overload f motor due to too large flow rate.
Material
NO
Name
Material
ANSI/ASTM
1
Plug
Stainless Steel
AISI 304
2
Bearing
Tungsten Carbide
AISI 304
3
Impeller
Stainless Steel
AISI 304
4
Shaft
Stainless Steel
AISI 304
5
Mechanical Seal
6
Motor End Cover
Aluminum Alloy
7
Base Plate
Steel Plate
AISI 1015
8
Staybolt
Stainless Steel
AISI 304
9
Diffuser
Stainless Steel
AISI 304
10
Support Diffuser
Stainless Steel
AISI 304
11
Impeller Sleeve
Stainless Steel
AISI 304
CHLF
12
Suction
Stainless Steel
AISI 304
13
Discharge
Stainless Steel
AISI 304
CHLF(T)
14
Suction
Cast Iron
ASTM25B
15
Discharge
Cast Iron
ASTM25B

FAQ
Q1: How can I get a price quote?
Answer: Leave us a message with your purchase requirement and we will reply you within one hour on working time.
Q2:May I get a cheaper price?
Answer: A workable discount will be given if there’s a large quantity.
Q3:Is your price included freight?
Answer: Our usual price is based on FOB shanghai.If you request CIF or CNF,please let us know our delivery port,and we will quoted price accordingly.
Q4:Is OEM acceptable?
Answer: Yes, please contact us for design details.we will offer you a reasonable price and make samples for you ASAP.
Q5:What’s your quality guarantee?
Answer: We have our professional quality control workers with inspection machines. Or if you have Chinese agency, you also can ask them to do inspection in our factory before shipment.
Q6:How long is your warranty?
Answer: Our Warranty is ONE year
