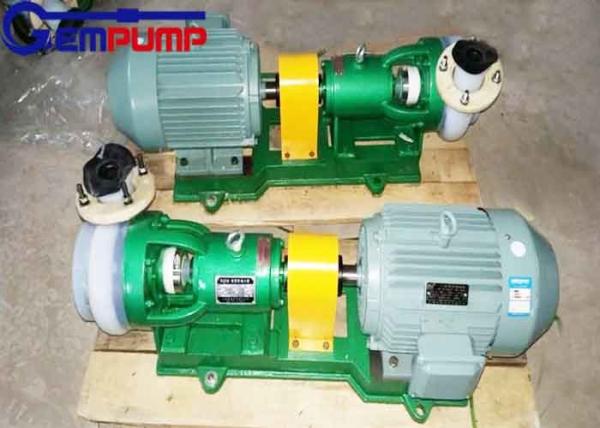

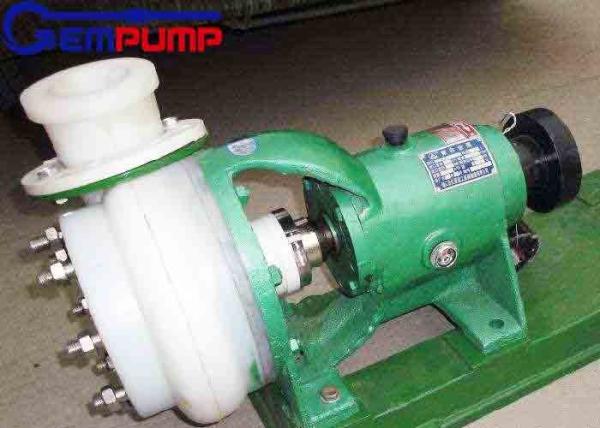

FSB Fluorine Chemical Centrifugal Pump Acid Proof Pump No Leakage
FSB Fluorine Chemical Centrifugal Pump Acid Proof Pump No Leakage
FSB Fluorine Chemical Centrifugal Pump Acid Proof Pump No Leakage
FSB Fluorine Chemical Centrifugal Pump Acid Proof Pump No Leakage
FSB Fluorine Chemical Centrifugal Pump Acid Proof Pump No Leakage
FSB Fluorine Chemical Centrifugal Pump Acid Proof Pump No Leakage
FSB Fluorine Chemical Centrifugal Pump Acid Proof Pump No Leakage
FSB Fluorine Chemical Centrifugal Pump Acid Proof Pump No Leakage
Specifications
Brand Name :
Gempump
Model Number :
40FSB-50L
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1 set
Price :
1000 USD/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 SET/Month
Delivery Time :
5-8 working days
Packaging Details :
Ply wooden box
Product :
Acid Horizontal Centrifugal Pump
Principle :
Centrifugal
Applications :
Chemical
Power :
Electric Motor
Voltage :
AC220V AC380V AC415V/50HZ
Temperature :
80°C (176°F)
Connection :
Flange
Position :
Horizontal
Material :
Fluoroplastic, polyethylene
Seal :
Mechanical seal
Description

FSB No Leakage Fluorine Plastic Centrifugal Chemical Pump Acid Proof Pump

Brief introduction

1. Fluorine plastic centrifugal pump is used to transfer acid, oxidant, corrosive medium.forbid to transport of medium which is easy to crystallize.

2. IT has the advantages of strong corrosion resistance ability, high mechanical strength, non aging, no toxin decomposed.

3. All wet parts are made of fluorine plastic, which could be PVDF or FEP(F46) for meeting different application requirements.

4. The pump is mainly used for transferring clean corrosive chemical liquids and solvents.It is widely used in the fields of chemical industry, petrol, medicine, pesticide, dye, smelting, paper making, plating, and food, etc.

Product details

Working Principle: Centrifugal, full plastic pump head
Main applications: Chemical
Driver: Electric motor
Power Specs: 220V, 240V, 380V, 400V, 415V, 440V, 50/60Hz
Max.permissible fluid temperature: 100°C(212°F)
Type of connection: Flange
Installation position: Horizontal
Casing parts material: PTFE, UHMWPE, F46, F26
Shaft seal type: Mechanical seal
Maximum drive rating: 75KW(100HP)
Maximum caliber: 200mm(8inch)
Maximum discharge-side pressure: 0.8MPa(8bar)
Maximum head: 80m(262.4ft)
Flow rate range: 1.5-400m3/h(6.6-1760US.GPM)

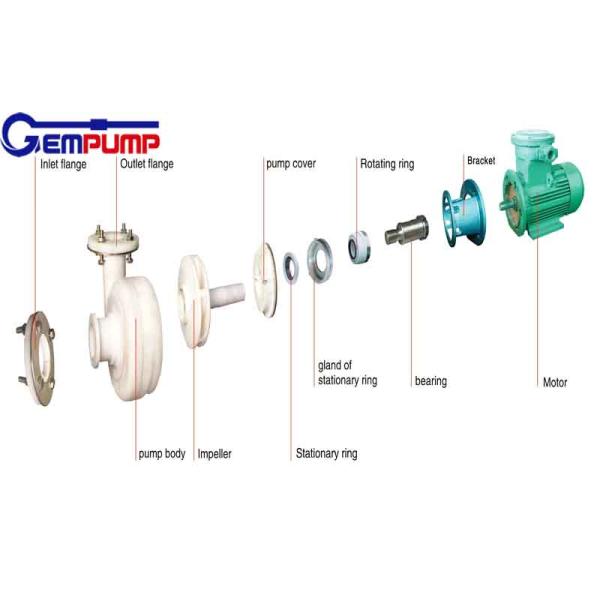

FSB Fluorine Plastic Chemical Pump Assembly Drawing

FSB Fluorine Chemical Centrifugal Pump Acid Proof Pump No Leakage

FAQ

Q: How about delivery time?

A: It is about 3-7 working days .
Q: Could you provide samples?
A: Yes, of course. We will send samples to you against advance deposit, but the price of sample pump and the freight charge is paied by your side.
Q: How about product problem solution?
A: If you can’t solve the problem in your local, please send the product to us, we will repair it, then back to you.

Q: What is your payment term?

A:TT, Western union, etc.
