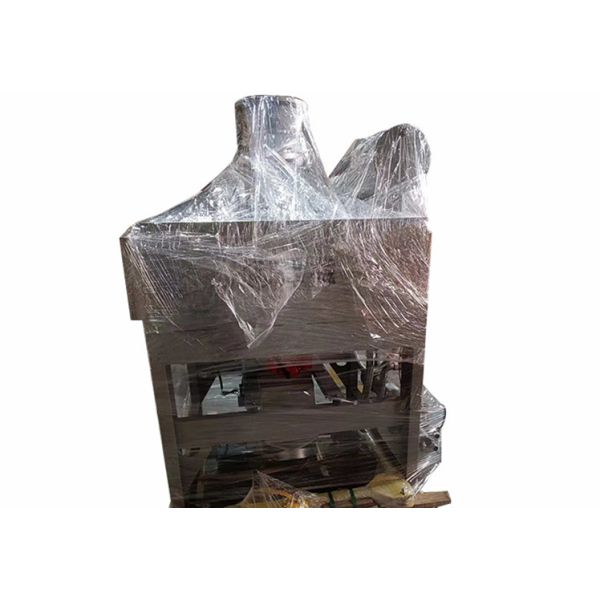

Permanent Magnet Dry Separator with 99% Iron Removal Rate, Low Failure Rate & Adjustable Parameters for Diverse Materials
Permanent Magnet Dry Separator with 99% Iron Removal Rate, Low Failure Rate & Adjustable Parameters for Diverse Materials
Specifications
Place of Origin :
CHINA
Supply Ability :
Strong
Environmental Characteristics :
Physical separation, zero emission, pollution-free
Packaging Details :
Base support + Wooden case
Applicable Material Particle Size :
0-3mm dry powder materials
MOQ :
1
Delivery Time :
2 to 4 weeks
Applicable Industries :
Abrasive tools, refractory materials, non-metallic mineral separation, carbon black, grain, feed, chemical raw materials, quartz sand, ceramic & glass processing
Payment Terms :
T/T or Bank Acceptance Bill
Core Performance Index :
Iron removal rate ≥99%, greatly improve finished purity of dry materials
Capacity Range of CTB Series :
Feeding particle size 0-3mm, single machine capacity 10-280t/h, model range CTB6012 ~ CTB1530
Material Adaptability :
Fits 0-3mm fine dry powder and raw materials with different magnetic strength, adjustable parameters for diverse working conditions
Brand Name :
JC
Price :
250,000
Description
  1. Low-Failure Permanent Magnet Dry Separator | Less Shutdown To Reduce Maintenance Loss & High-Efficiency Impurity Removal For Higher Material Utilization

2. Core Selling Paragraph

This permanent magnet dry powder magnetic separator adopts exclusive magnetic circuit to generate super strong magnetic field, achieving over 99% iron removal rate to greatly boost finished purity of dry powder. It fits dry powder with particle size 0-3mm, sorting parameters adjustable for fine powder and high-magnetism raw materials, widely used in production lines of abrasives, refractory materials, quartz sand, grain and chemical industry. Stable operation with low failure rate cuts economic loss caused by shutdown maintenance, reduces material waste and improves resource utilization to lower overall production cost. It shall be horizontally installed in dry and ventilated space, with standardized maintenance procedures: regular dust cleaning, tension inspection & lubrication for belts and chains, periodic magnetic test for magnet blocks of permanent type, coil insulation & circuit inspection for electromagnetic model. CTB series covers full capacity range 10-280t/h. We manufacture full series magnetic separators including drawer grille magnet, rotary grille magnet, slurry electromagnetic separator, drum separator and eddy current separator, customized complete set export available for overseas customers.

3. Product Specifications





Item Specification
Core Performance Index Iron removal rate ≥99%, greatly improve finished purity of dry materials
Material Adaptability Fits 0-3mm fine dry powder and raw materials with different magnetic strength, adjustable parameters for diverse working conditions
Capacity Range of CTB Series Feeding particle size 0-3mm, single machine capacity 10-280t/h, model range CTB6012 ~ CTB1530
General Technical Parameter Items Drum diameter, drum length, drum surface magnetic induction intensity, processing capacity, motor power, drum rotation speed (differentiated by model)
Installation Requirements Dry & ventilated site, horizontal machine placement, tight joints to prevent material leakage, wiring & commissioning per manual
Daily Maintenance Items 1. Clean internal & external dust and impurities regularly; 2. Check tension of belts & chains and add lubricating oil; 3. Test magnet magnetic force regularly for permanent model, replace magnets if magnetism declines; 4. Inspect coil insulation & electric circuit of electromagnetic model to avoid short circuit
Three Core Product Advantages 1. High-efficiency iron removal rate over 99%; 2. Strong adaptability for precise separation of all kinds of dry powder; 3. Cost reduction: low failure rate lessens shutdown loss and high impurity removal cuts material waste
Applicable Industries Abrasive tools, refractory materials, non-metallic mineral separation, carbon black, grain, feed, chemical raw materials, quartz sand, ceramic & glass processing
Full Product Line Of Our Company Permanent drawer grille magnet, rotary grille magnet, dry powder electromagnetic separator, slurry electromagnetic separator, drum separator, eddy current separator

4. Product Introduction

We are a professional enterprise integrating design, R&D and manufacturing of all kinds of magnetic separation equipment, including permanent grille magnets, rotary iron removers, dry & slurry electromagnetic magnetic separators, drum separators and eddy current separators. This CTB permanent magnet dry powder magnetic separator is a cost-effective core purification & iron removal machine for dry powder production lines.

Its outstanding advantage is ultra-high iron removal performance. The unique magnetic system creates high-density strong adsorption magnetic field to fully capture iron rust and metal scraps inside powder, maintaining steady iron removal rate above 99%. It completely solves common industry defects such as black spots and unqualified finished products caused by iron impurities in quartz sand, ceramic and food raw materials, meeting high-end raw material production standards.

It boasts wide material compatibility, uniformly adapting to all dry powder within 0-3mm particle size. Whether ultra-fine micro powder or coarse raw materials with strong magnetism, precise separation can be realized by adjusting operating parameters and matching corresponding models, which fits multiple raw material production lines with great versatility. In terms of cost control, mature mechanical structure ensures stable operation and low failure rate, sharply cutting capacity loss from shutdown maintenance. Meanwhile, excellent impurity removal reduces loss of qualified raw materials and improves resource utilization rate, lowering comprehensive production cost of factories in long-term operation.

5. FAQ

Q1: What standard does the iron removal performance of permanent magnet dry magnetic separator reach, and what particle size of dry powder can it handle?

A1: Iron removal rate can reach over 99%; it fits all dry powder with particle size 0-3mm, both fine powder and coarse materials with strong magnetism.

Q2: What is the processing capacity range of CTB series dry magnetic separator, and what general technical parameters are included?

A2: Single machine processing capacity 10-280t/h; general parameters: drum diameter, drum length, drum surface magnetic induction intensity, processing capacity, motor power, drum rotation speed.

Q3: What site and assembly requirements are there for machine installation? What items are covered in daily maintenance?

A3: Install in dry & ventilated site with horizontal placement, fasten all joints to prevent leakage; maintenance includes dust cleaning, transmission lubrication, magnetic force test for permanent magnets, coil & electric circuit inspection for electromagnetic model.

Q4: What are the three core competitive advantages of this magnetic separator?

A4: 1. High-efficiency iron removal rate over 99%; 2. Strong material adaptability to precisely separate all dry powder; 3. Stable low-failure operation reduces shutdown and material loss to cut production cost.

Q5: What magnetic separation equipment can your company produce, and which processing industries does this machine serve?

A5: We produce drawer grille magnets, rotary grille magnets, dry/slurry electromagnetic separators, drum separators and eddy current separators; it applies to abrasives, refractory materials, non-metallic mineral separation, carbon black, grain & feed, chemical, quartz sand, ceramic & glass processing industries.
