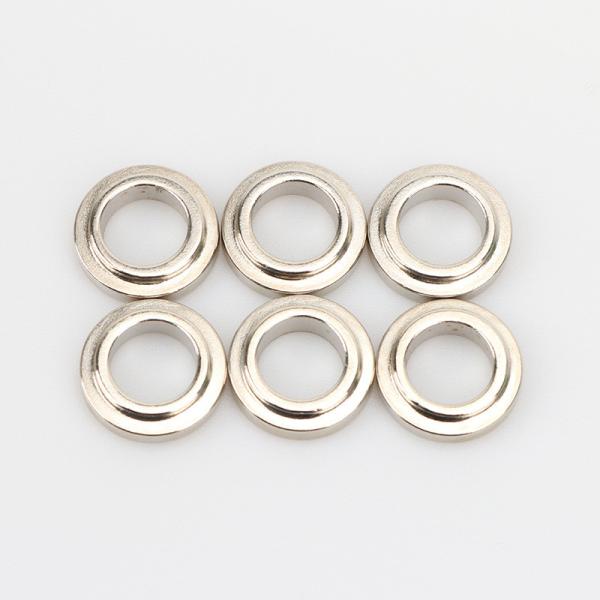

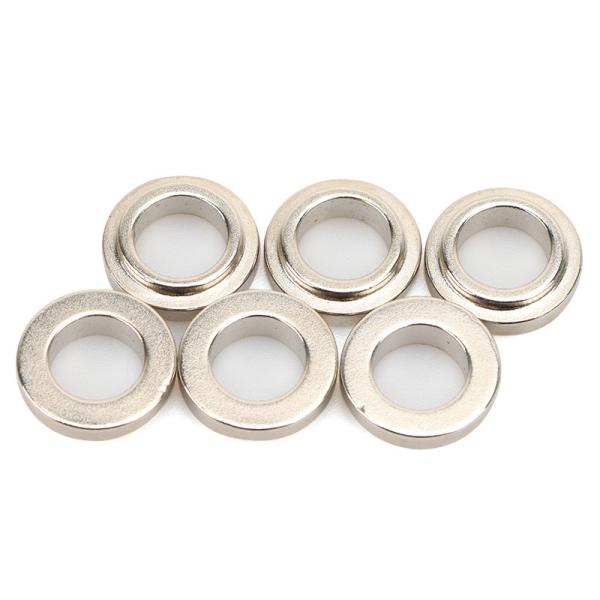

Nickel Coated NdFeB Magnet With Axial Direction Bending Service Rare Earth Magnet Recycling
Nickel Coated NdFeB Magnet With Axial Direction Bending Service Rare Earth Magnet Recycling
Nickel Coated NdFeB Magnet With Axial Direction Bending Service Rare Earth Magnet Recycling
Nickel Coated NdFeB Magnet With Axial Direction Bending Service Rare Earth Magnet Recycling
Specifications
Brand Name :
JN
Model Number :
JN-ND-22
Place of Origin :
CHINA
Certification :
ISO9001
MOQ :
1000PCS
Price :
Negotiable
Packaging Details :
By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time :
21 Days
Payment Terms :
L/C,T/T
Supply Ability :
1 000K PCS/Month
Working Temp :
80-220 Centigrade
Tolerance :
+/- 0.05mm - +/- 0.1mm
Processing Service :
Bending
Type Of Magnet :
NdFeB Magnets
Grand Available :
N35-N52
Salt Spray Test (SST) :
>24 hrs
Coating :
Ni-Cu-Ni
Odm :
Acceptable
Category :
Neodymium Magnets
Description

Nickel Coated NdFeB Magnet with Axial Magnetism Direction and Bending Service

Product Description:

NdFeB Magnet, also known as Neodymium Iron Boron Magnet, is a type of rare earth magnet that is widely used in various industries for its super strong magnetic properties. With a maximum energy product of up to 52 MGOe, NdFeB magnets are considered to be the strongest permanent magnets available in the market.

Product Overview

The NdFeB Magnet is a powerful magnetic material made of Neodymium (Nd), Iron (Fe), and Boron (B). It is highly resistant to demagnetization, making it suitable for a wide range of applications, especially those that require high temperature resistance. The following are some of the key features of this product:

  • Working Temperature: NdFeB magnets have a high working temperature range of 80-220℃, which makes them suitable for use in environments with extreme heat conditions.
  • Processing Service: These magnets can be easily bent, allowing for flexibility in design and application.
  • Grade Available: NdFeB magnets come in different grades, ranging from N35 to N52, with N52 being the strongest and most commonly used grade.
  • Tolerance: The tolerance level of NdFeB magnets is between +/- 0.05mm to +/- 0.1mm, ensuring precision in manufacturing and consistent performance.
  • Curie Temperature: The Curie temperature of NdFeB magnets is between 310-400°C, which is the temperature at which the magnetic properties start to weaken.
Applications

The super strong magnetic properties and high temperature resistance of NdFeB magnets make them suitable for a wide range of applications, including:

  • Motors and generators in the automotive industry
  • Electrical and electronic devices
  • Magnetic separators and filters
  • Magnetic therapy products
  • Sensors and actuators
  • Wind turbines
Magnetic Properties
Grade Remanence Intrinsic Coercivity Max Magnetic Energy Product Temperature Coefficient Max Working Temperture Density
Br Hcj (BH)max α Br β Hcj Tw ρ
T kGs kA/m kOe KJ/m3 MGOe %/℃ %/℃ ℃ g/cm3
N55 ≥1.45 ≥14.5 ≥955 ≥12 406-437 51-55 -0.12 -0.8 80 ≥7.5
N54 ≥1.44 ≥14.4 ≥955 ≥12 398-437 50-55 -0.12 -0.8 80 ≥7.5
N52 1.42-1.44 14.2-14.4 ≥955 ≥12 390-422 49-53 -0.12 -0.8 80 ≥7.5
N50 1.4-1.42 14-14.2 ≥955 ≥12 374-406 47-51 -0.12 -0.8 80 ≥7.5
N48 1.37-1.4 13.7-14 ≥955 ≥12 366-390 46-49 -0.12 -0.8 80 ≥7.5
N45 1.32-1.37 13.2-13.7 ≥955 ≥12 342-366 43-46 -0.12 -0.8 80 ≥7.5
54M ≥1.44 ≥14.4 ≥1114 ≥14 398-422 50-53 -0.12 -0.8 100 ≥7.5
52M 1.42-1.44 14.2-14.4 ≥1114 ≥14 390-422 49-53 -0.12 -0.8 100 ≥7.5
50M 1.4-1.42 14-14.2 ≥1114 ≥14 374-406 47-51 -0.12 -0.8 100 ≥7.5
48M 1.37-1.4 13.7-14 ≥1114 ≥14 366-390 46-49 -0.12 -0.8 100 ≥7.5
45M 1.32-1.37 13.2-13.7 ≥1114 ≥14 342-366 43-46 -0.12 -0.8 100 ≥7.5
42M 1.28-1.32 12.8-13.2 ≥1114 ≥14 318-342 40-43 -0.12 -0.8 100 ≥7.5
54H ≥1.44 ≥14.4 ≥1353 ≥17 398-422 50-53 -0.12 -0.7 120 ≥7.5
52H 1.42-1.44 14.2-14.4 ≥1353 ≥17 390-422 49-53 -0.12 -0.7 120 ≥7.5
50H 1.4-1.42 14-14.2 ≥1353 ≥17 374-406 47-51 -0.12 -0.7 120 ≥7.5
48H 1.37-1.4 13.7-14 ≥1353 ≥17 366-390 46-49 -0.12 -0.7 120 ≥7.5
45H 1.32-1.37 13.2-13.7 ≥1353 ≥17 342-366 43-46 -0.12 -0.7 120 ≥7.5
42H 1.28-1.32 12.8-13.2 ≥1353 ≥17 318-342 40-43 -0.12 -0.7 120 ≥7.5
40H 1.26-1.28 12.6-12.8 ≥1353 ≥17 302-326 38-41 -0.12 -0.7 120 ≥7.5
52SH 1.42-1.44 14.2-14.4 ≥1592 ≥20 390-422 49-53 -0.12 -0.6 150 ≥7.5
50SH 1.4-1.42 14-14.2 ≥1592 ≥20 374-406 47-51 -0.12 -0.6 150 ≥7.5
48SH 1.37-1.4 13.7-14 ≥1592 ≥20 366-390 46-49 -0.12 -0.6 150 ≥7.5
45SH 1.32-1.37 13.2-13.7 ≥1592 ≥20 342-366 43-46 -0.12 -0.6 150 ≥7.5
42SH 1.28-1.32 12.8-13.2 ≥1592 ≥20 318-342 40-43 -0.12 -0.6 150 ≥7.5
40SH 1.26-1.28 12.6-12.8 ≥1592 ≥20 302-326 38-41 -0.12 -0.6 150 ≥7.5
38SH 1.22-1.26 12.2-12.6 ≥1592 ≥20 287-310 36-39 -0.12 -0.6 150 ≥7.5
35SH 1.17-1.22 11.7-12.2 ≥1592 ≥20 263-287 33-36 -0.12 -0.6 150 ≥7.5
33SH 1.13-1.17 11.3-11.7 ≥1592 ≥20 247-271 31-34 -0.12 -0.6 150 ≥7.5
30SH 1.08-1.13 10.8-11.3 ≥1592 ≥20 223-254 28-32 -0.12 -0.6 150 ≥7.5
48UH 1.36-1.4 13.6-14 ≥1990 ≥25 366-390 46-49 -0.12 -0.6 180 ≥7.5
45UH 1.32-1.37 13.2-13.7 ≥1990 ≥25 342-366 43-46 -0.12 -0.6 180 ≥7.5
42UH 1.28-1.32 12.8-13.2 ≥1990 ≥25 318-342 40-43 -0.12 -0.6 180 ≥7.5
40UH 1.26-1.28 12.6-12.8 ≥1990 ≥25 302-326 38-41 -0.12 -0.6 180 ≥7.5
38UH 1.22-1.26 12.2-12.6 ≥1990 ≥25 287-310 36-39 -0.12 -0.6 180 ≥7.5
35UH 1.17-1.22 11.7-12.2 ≥1990 ≥25 263-287 33-36 -0.12 -0.6 180 ≥7.5
33UH 1.13-1.17 11.3-11.7 ≥1990 ≥25 247-271 31-34 -0.12 -0.6 180 ≥7.5
30UH 1.08-1.13 10.8-11.3 ≥1990 ≥25 223-255 28-32 -0.12 -0.51 180 ≥7.5
28UH 1.02-1.08 10.2-10.8 ≥1990 ≥25 207-231 26-29 -0.12 -0.51 180 ≥7.5
42EH 1.28-1.32 12.8-13.2 ≥2388 ≥30 318-342 40-43 -0.12 -0.5 200 ≥7.5
40EH 1.25-1.28 12.5-12.8 ≥2388 ≥30 302-326 38-41 -0.12 -0.5 200 ≥7.5
38EH 1.22-1.26 12.2-12.6 ≥2388 ≥30 287-310 36-39 -0.12 -0.5 200 ≥7.5
35EH 1.17-1.22 11.7-12.2 ≥2388 ≥30 263-287 33-36 -0.12 -0.5 200 ≥7.5
33EH 1.13-1.17 11.3-11.7 ≥2388 ≥30 247-271 31-34 -0.12 -0.5 200 ≥7.5
30EH 1.08-1.13 10.8-11.3 ≥2388 ≥30 223-255 28-32 -0.12 -0.51 200 ≥7.5
28EH 1.02-1.08 10.2-10.8 ≥2388 ≥30 207-231 26-29 -0.12 -0.51 200 ≥7.5
40AH 1.25-1.28 12.5-12.8 ≥2786 ≥35 302-326 38-41 -0.12 -0.51 220 ≥7.5
38AH 1.22-1.26 12.2-12.6 ≥2786 ≥35 287-310 36-39 -0.12 -0.51 220 ≥7.5
35AH 1.17-1.22 11.7-12.2 ≥2786 ≥35 263-287 33-36 -0.12 -0.51 220 ≥7.5
33AH 1.13-1.17 11.3-11.7 ≥2786 ≥35 247-271 31-34 -0.12 -0.51 220 ≥7.5
30AH 1.08-1.13 10.8-11.3 ≥2786 ≥35 223-255 28-32 -0.12 -0.51 220 ≥7.5
28AH 1.02-1.08 10.2-10.8 ≥2786 ≥35 199-231 25-29 -0.12 -0.51 220 ≥7.5

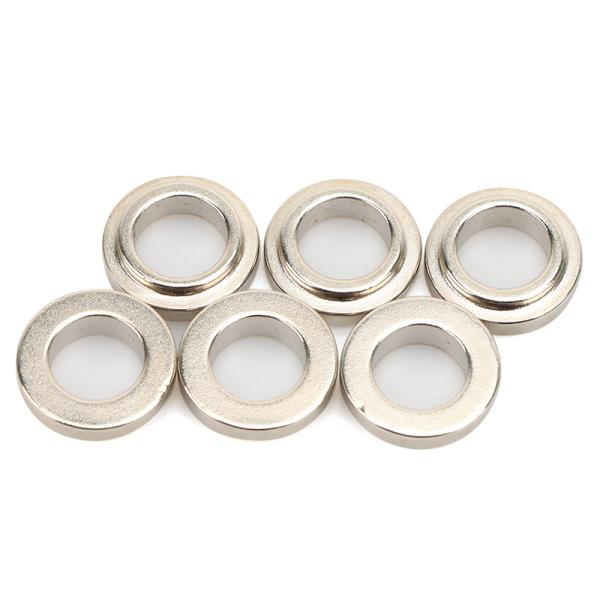

Nickel Coated NdFeB Magnet With Axial Direction Bending Service Rare Earth Magnet Recycling
