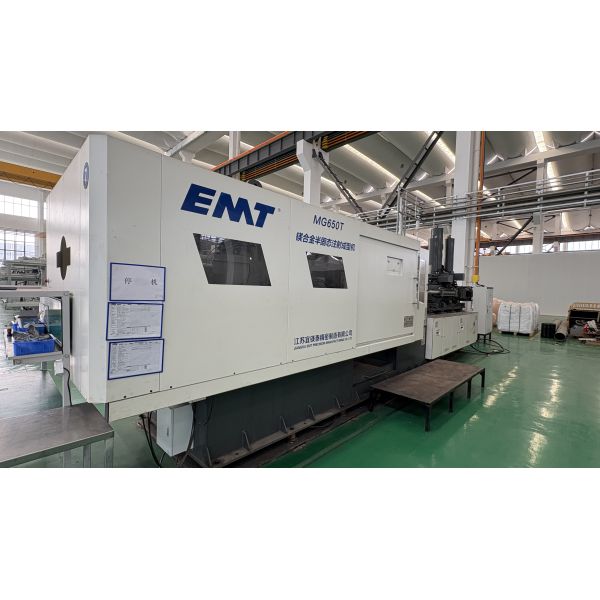

EMT MG-650 6500kN Magnesium Alloy Thixomolding Machine
EMT MG-650 6500kN Magnesium Alloy Thixomolding Machine
Specifications
Brand Name :
EMT
Model Number :
MG-650
Certification :
ISO9001,IATF 16949
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Total Electric Capacity :
140 kW
Material Compatibility :
Magnesium Alloys
Casting Method :
Die Casting
Locking Force :
6500kN
Ejector Stroke :
150 mm
Product Type :
Die Casting Machine
Machine Type :
Thixomolding Machine
Mold Thickness :
350-900mm
Forming Process :
thixoforming
Min. Die Height :
150 mm
Injection Stroke :
300 mm
Application :
Die Casting
Weight :
35500kg
Control System :
PLC + HMI
Oem :
Yes
Production Capacity :
high
Injection Pressure :
120 MPa
Operate :
simple
Description

Innovative EMT MG-650 Magnesium Alloy Die Casting Machine for Precision 3C Electronics Manufacturing

No. DESCRIPTION UNIT MG650
1 Mold Locking Force kN 6500
2 Way Of Mold Installation - T-groove way
3 Screw Diameter mm 84
4 Injection Nozzle Inlet mm 75
5 Injection Nozzle Contact Force kN 330
6 Systematic Operating Pressure MPa 16
7 Melting Servo Motor Power kW 42
8 Machine’s Overall Dimension (L×W×H) m 9.5×2.3×3.3
The EMT MG-650 Magnesium Alloy Semi - Solid Injection Molding Machine is a high - performance core equipment independently developed by EMT. Precisely designed for the magnesium alloy semi - solid injection molding process, it is widely suitable for the production needs of high - precision and high - quality magnesium alloy products such as key automotive components, high - end electronic product casings, and aerospace precision components.
EMT MG-650 6500kN Magnesium Alloy Thixomolding Machine

Integrating cutting - edge technology and innovative design concepts, this equipment is based on safety and stability, and also has significant advantages such as environmental protection and low consumption, high - efficiency output, and precision molding. It provides customers with reliable production solutions from research and development to mass production, helping to enhance product competitiveness.

Service industry:

  • 3C Electronics: laptop casing, game console casing, mouse, keyboard, etc.

EMT MG-650 6500kN Magnesium Alloy Thixomolding Machine

  • New energy vehicles: steering wheel, seat frame, cup holder, armrest bracket, central control instrument panel, battery pack housing, etc.

EMT MG-650 6500kN Magnesium Alloy Thixomolding Machine

  • Outdoor equipment: bicycle frame, electric bicycle shell, photography equipment shell, night vision device shell, fishing wheel, etc.

EMT MG-650 6500kN Magnesium Alloy Thixomolding Machine

  • Medical field: surgical instruments, medical equipment, etc.

EMT MG-650 6500kN Magnesium Alloy Thixomolding Machine

  • Other fields: Other magnesium alloy lightweight products besides the four major fields mentioned above.
