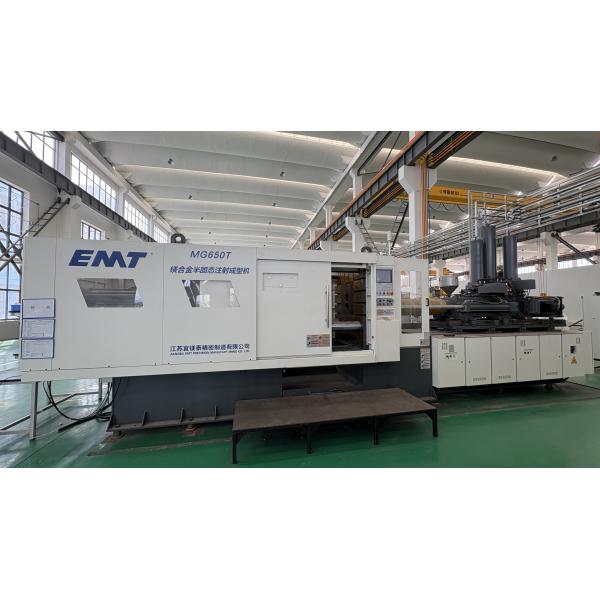

6500KN Thixomolding Machine MG-650 Magnesium Alloy Semi Solid Forming
6500KN Thixomolding Machine MG-650 Magnesium Alloy Semi Solid Forming
Specifications
Brand Name :
EMT
Certification :
TS16949、IOS9001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
50000PCS /Month
Delivery Time :
7-15 work days
Packaging Details :
According to customer needs
Model Number :
MG-650
Locking force :
6500
Material :
Magnesium alloy
Forming process :
Semi-solid thixoforming
Dimensions :
Customer Required
Energy saving :
Yes
Injection speed :
quick
Description

6500KN Thixomolding Machine MG-650 Magnesium Alloy

No. DESCRIPTION UNIT MG650
I. Mold locking
1 Mold Locking Force kN 6500
2 Mold Lock Stroke mm 720
3 Mold Thickness (Minimum To Maximum) mm 350-900
4 Clamping Plate Dimension (Horizontal × Vertical) mm 1300×1300
5 Column Spacing (Horizontal × Vertical) mm 810×810
6 Way Of Mold Installation - T-groove way
II. Injection
1 Screw Diameter mm 84
2 Injection Pressure MPa 120
3 Theoretical Injection Volume cm³ 1662
4 Theoretical Injection Mass g 2426
5 Theoretical Injection Rate cm³∕s 25491
6 Maximum Injection Speed Of Screw m∕s 5
7 Rotation Speed Of Screw r∕min 10-300
8 Injection Stroke mm 300
9 Injection Nozzle Dimension mm φ18×R35
10 Injection Nozzle Inlet mm 75
11 Injection Nozzle Contact Force kN 330
12 Injection Device Position mm 0,-175

Our team is one of the first teams in China to be exposed to thixomolding technology for magnesium alloys. Through more than ten years of arduous research and development, they have mastered the world's leading thixomolding core technology for magnesium alloys, breaking foreign monopolies.

6500KN Thixomolding Machine MG-650 Magnesium Alloy Semi Solid Forming

Product Service:

①. Before-sale service

1. Investment budget.

2. Plant planning.

3. Equipment overhaul.

②. In-sale service

1. Peripheral information.

2. Machine foundation.

3. Production assistance.

4. Machine installation.

5. Personnel support.

6. Training support.

③. After-sale service

1. Available within 48 hours.

2. Trial service.

3. Machine maintenance.

4. Regular visit.

5. Technical support.

6. Maintenance support.

6500KN Thixomolding Machine MG-650 Magnesium Alloy Semi Solid Forming

6500KN Thixomolding Machine MG-650 Magnesium Alloy Semi Solid Forming

6500KN Thixomolding Machine MG-650 Magnesium Alloy Semi Solid Forming

Advantage:

6500KN Thixomolding Machine MG-650 Magnesium Alloy Semi Solid Forming
