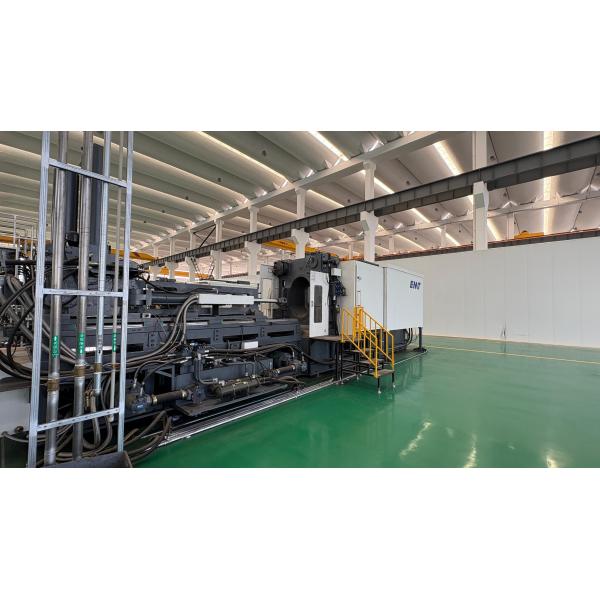

25000kN High-Performance Thixomolding Machine For Diversified Production Needs EMT Magnesium Alloy Equipment
25000kN High-Performance Thixomolding Machine For Diversified Production Needs EMT Magnesium Alloy Equipment
Specifications
Brand Name :
EMT
Model Number :
MG-2500
Certification :
ISO9001，IATF16949
Place of Origin :
China
MOQ :
1
Control System :
PLC
Forming Process :
Thixoforming
Warranty :
1 Year
Weight :
150000kg
Power Supply :
380V/50Hz
Product Type :
Die Casting Machine
Production Capacity :
high
Forming Way :
semi-solid
Power Source :
Electric
Operational :
safety
Casting Method :
Die Casting
Mold Locking Force :
25000KN
Operate :
simple
Injection Pressure :
100 MPa
Application :
Manufacturing of lightweight and high-strength metal components
Description

25000kN High-Performance Thixomolding Machine for Diversified Production Needs EMT Magnesium Alloy Equipment.

No. DESCRIPTION UNIT MG2500
1 Mold Locking Force kN 25000
2 Clamping Plate Dimension (Horizontal × Vertical) mm 2350×2350
3 Screw Diameter mm 150
4 Maximum Injection Speed Of Screw m∕s 5
5 Rotation Speed Of Screw r∕min 10-285
6 Systematic Operating Pressure MPa 16
7 Electric Motor Power kW 75×2
8 Machine’s Overall Dimension (L×W×H) m 16.3×6.7×5

Full range of thixomolding equipment for magnesium alloys: covering multiple scene requirements:

The magnesium alloy thixomolding equipment independently developed by EMT has a complete tonnage matrix (300T, 650T, 800T, 1500T, 2500T, 4000T), which meets the diversified production needs from small precision parts (3C electronics, medical precision parts) to large structural parts (new energy vehicles, aerospace, industrial equipment). It can form magnesium alloy products ranging from 0.01-20kg, and provide selection services according to the customer's magnesium alloy product situation.

25000kN High-Performance Thixomolding Machine For Diversified Production Needs EMT Magnesium Alloy Equipment

Service industry:

  • 3C Electronics: laptop casing, game console casing, mouse, keyboard, etc.

25000kN High-Performance Thixomolding Machine For Diversified Production Needs EMT Magnesium Alloy Equipment

  • New energy vehicles: steering wheel, seat frame, cup holder, armrest bracket, central control instrument panel, battery pack housing, etc.

25000kN High-Performance Thixomolding Machine For Diversified Production Needs EMT Magnesium Alloy Equipment

  • Outdoor equipment: bicycle frame, electric bicycle shell, photography equipment shell, night vision device shell, fishing wheel, etc.

25000kN High-Performance Thixomolding Machine For Diversified Production Needs EMT Magnesium Alloy Equipment

  • Medical field: surgical instruments, medical equipment, etc.

25000kN High-Performance Thixomolding Machine For Diversified Production Needs EMT Magnesium Alloy Equipment

  • Other fields: Other magnesium alloy lightweight products besides the four major fields mentioned above.
