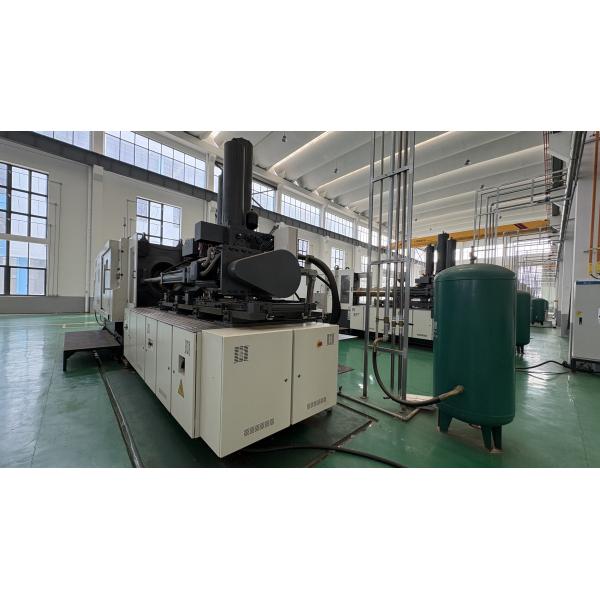

6500kN EMT Thixomolding Machine For Magnesium Alloy Products Perfect 3C Electronics And Aerospace Industry
6500kN EMT Thixomolding Machine For Magnesium Alloy Products Perfect 3C Electronics And Aerospace Industry
Specifications
Brand Name :
EMT
Model Number :
MG-650
Certification :
ISO9001,IATF 16949
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Control System :
PLC Control
Injection Stroke :
300 mm
Mold Thickness :
350-900mm
Total Electric Capacity :
140 kW
Material Compatibility :
Magnesium Alloys
Casting Method :
Die Casting
Locking Force :
6500kN
Ejector Stroke :
150 mm
Forming Process :
thixoforming
Forming Way :
semi-solid
Product Type :
Die Casting Machine
Machine Type :
Thixomolding Machine
Description

EMT Thixomolding Machine for Magnesium Alloy Products Perfect for 3C Electronics and Aerospace Industry.

No. DESCRIPTION UNIT MG650
1 Mold Locking Force kN 6500
2 Clamping Plate Dimension (Horizontal × Vertical) mm 1300×1300
3 Screw Diameter mm 84
4 Maximum Injection Speed Of Screw m∕s 5
5 Rotation Speed Of Screw r∕min 10-300
6 Systematic Operating Pressure MPa 16
7 Electric Motor Power kW 45
8 Machine’s Overall Dimension (L×W×H) m 9.5×2.3×3.3

Full range of thixomolding equipment for magnesium alloys: covering multiple scene requirements:

The magnesium alloy thixomolding equipment independently developed by EMT has a complete tonnage matrix (300T, 650T, 800T, 1500T, 2500T, 4000T), which meets the diversified production needs from small precision parts (3C electronics, medical precision parts) to large structural parts (new energy vehicles, aerospace, industrial equipment). It can form magnesium alloy products ranging from 0.01-20kg, and provide selection services according to the customer's magnesium alloy product situation.

6500kN EMT Thixomolding Machine For Magnesium Alloy Products Perfect 3C Electronics And Aerospace Industry

Service industry:

  • 3C Electronics: laptop casing, game console casing, mouse, keyboard, etc.

6500kN EMT Thixomolding Machine For Magnesium Alloy Products Perfect 3C Electronics And Aerospace Industry

  • New energy vehicles: steering wheel, seat frame, cup holder, armrest bracket, central control instrument panel, battery pack housing, etc.

6500kN EMT Thixomolding Machine For Magnesium Alloy Products Perfect 3C Electronics And Aerospace Industry

  • Outdoor equipment: bicycle frame, electric bicycle shell, photography equipment shell, night vision device shell, fishing wheel, etc.

6500kN EMT Thixomolding Machine For Magnesium Alloy Products Perfect 3C Electronics And Aerospace Industry

  • Medical field: surgical instruments, medical equipment, etc.

6500kN EMT Thixomolding Machine For Magnesium Alloy Products Perfect 3C Electronics And Aerospace Industry

  • Other fields: Other magnesium alloy lightweight products besides the four major fields mentioned above.
