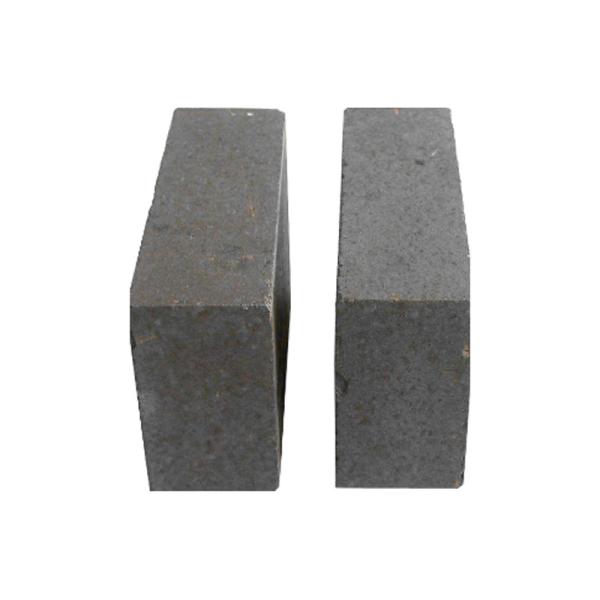

Furnace Anti Slag Erosion Refractory Alumina Carbon Brick
Furnace Anti Slag Erosion Refractory Alumina Carbon Brick
Furnace Anti Slag Erosion Refractory Alumina Carbon Brick
Furnace Anti Slag Erosion Refractory Alumina Carbon Brick
Specifications
Brand Name :
XINYU
Model Number :
XY-WCB
Certification :
GB/T19001-2016/ISO9001:2005
Place of Origin :
ZHENGZHOUGONGYI
MOQ :
2T
Payment Terms :
L/C, , T/T, D/P, Western Union, MoneyGram
Supply Ability :
500T/25D
Delivery Time :
5-8work
Packaging Details :
packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages
AL2O3 content(%)≥ :
55/60/65
Fe2O3 content(%)≤ :
1.5
Refractoriness (℃，≥） :
1700/1750/1790
Refractoriness under load，0.2MPa，℃（≥） :
1600/1650/1700
Apparent porosity，≤ :
16/17/18
Crushing strength/ MPa,≥ :
50/60/70
C content(%)≥ :
9/11/20
Description

Anti Slag Erosion Blast Furnace Refractory Material Alumina Carbon Brick Series

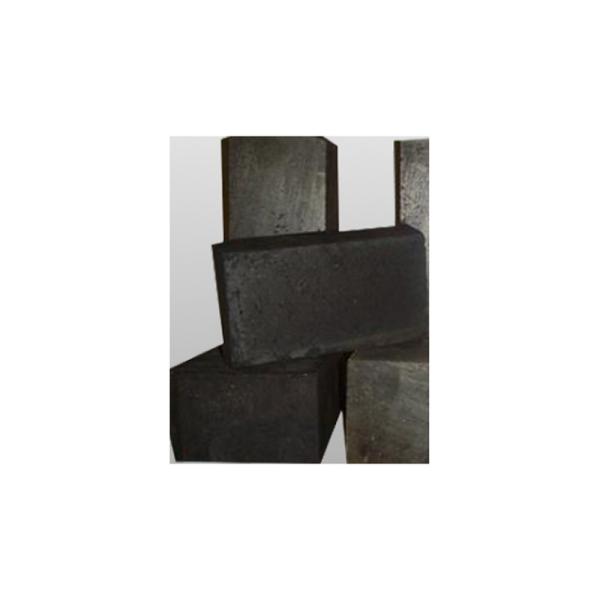

Magnesia Carbon Bricks Product description:

Magnesia carbon bricks are made of high melting point oxide Magnesium Oxide and hard carbon materials with high melting point of slag infiltration as raw material, add a variety of non oxide additives. No charcoal composite refractories with carbon bonded together. Magnesia carbon brick is mainly used for converter, AC arc furnace, DC arc furnace lining, ladle slag line and other parts.


Magnesia Carbon Bricks Physical and chemical indicators:


Brand

 XY-MT8A XY-MT8B XY-MT8C XY-MT10A XY-MT10B XY-MT10C XY-MT12A XY-MT12B XY-MT14A XY-MT14B
MgO 82 82 78 80 78 76 78 76 78 76
C 8 8 8 10 10 10 12 12 14 14

/ %,≤

Apparent porosity

 5 6 7 4 5 6 4 5 4 5

/ g﹒cm-3,≥

Bulk density

 3.0 2.95 2.95 3.0 2.95 2.95 2.98 2.96 2.98 2.96

/ MPa,≥

Crushing strength

 45 40 35 40 40 35 40 40 40 40

(1450℃)/ MPa,≥

Hot modulus of rupture

 6 5 4 8 7 6 8 7 12 10

Brand

 XY-MT12A XY-MT12B XY-MT12C XY-MT14A XY-MT14B XY-MT14C

/ %,≥

Chemical composition

 MgO 78 76 74 78 76 74
C 12 12 12 14 14 14

/ %,≤

Apparent porosity

 4 5 6 4 5 6

/ g﹒cm-3,≥

Bulk density

 2.98 2.96 2.95 2.98 2.96 2.95

/ MPa ,≥

Crushing strength

 40 40 35 40 40 35

(1450℃)/ MPa,≥

Hot modulus of rupture

 8 7 6 12 10 8

Magnesia Carbon Bricks Advantage

The directly bonded magnesia-chrome brick has high temperature resistance, good corrosion resistance, thermal shock resistance and bulk stability under high temperature etc .

Furnace Anti Slag Erosion Refractory Alumina Carbon Brick


Packa
Comp
