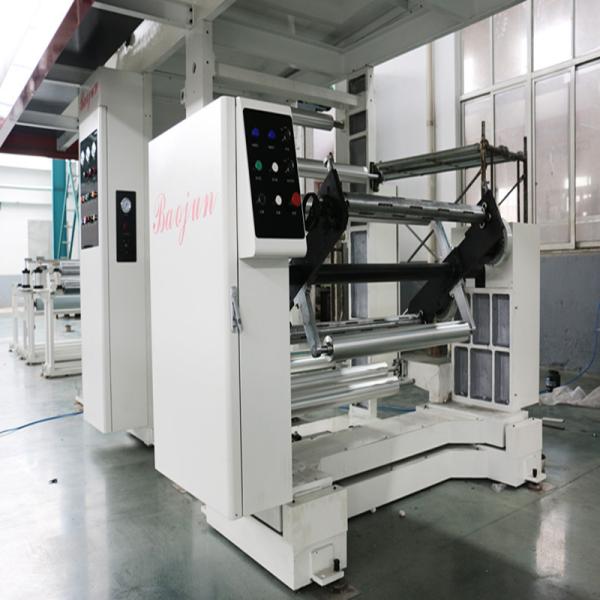

BJ-1050 high speed dry machine is referred to overseas technical designs and integrated ourselves superiority of science technology. It is suitable for all kinds of rolling material( such as :BOPP,PET,CPP,NY,Aluminum Foil,Paper ect) lamination to form all kinds of good packing materials . It is widely used in Foods,Medicine,Chemical and Packing ect .

Main technical parameter:

●Laminating width : 550-1500 mm

●Laminating direction : From right to left

●Machinery speed : 150m/min

●Lamination speed: 180m/min

●The first unwind roll max dia : Φ600mm

●The second unwind roll max dia. : Φ600mm

●Rewind roll max dia. Φ600mm

●The dia. of roll paper core Φ76mm(inner) xΦ92(outer)

●The dia.of coating glue roller Φ165mm

●Coating glue roller net: 80~180 line/inch (can be make to order)

●Solvent : Ethyl Acetate etc.

●Coating pressure: 350 kg

●Solidify content : 20~30﹪

●Tension scope: 3~30 kg

● Tension controlling precision : ±0.2kg

●Dryness method: electric heating or stream heating (select by buyer)

●Oven length: 8000mm

●Oven temperature: 80-100℃(environment temperature 20℃)

●Laminating temperature: 50-60℃

●Laminating pressure: 2100kg

●Electricity consumption when electric heating: 108kw

●Total power: 90kw (electric heating):

●Machine size : 9000×3500×3800mm

● Machine Weight : 8000 kg

Base material and laminating material:

Cello: 20-30μ OPP: 20-60μ PET: 12-60μ BOPP: 18-60 μ

PE: 30-100μ CPP: 20-60μ NY: 12-50μ

Combined film: 15-60μ Aluminum Foil: 10-40μ Paper: 30-80g/m²

And other film materials which have the same nature as the above.
