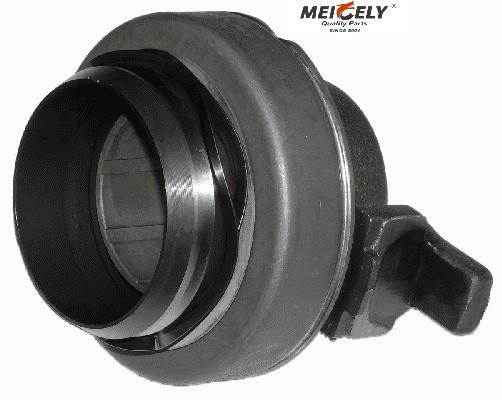

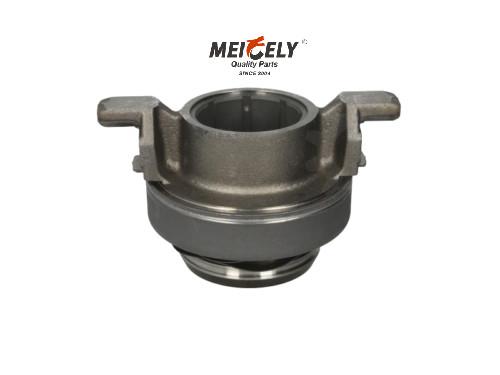

92.5mm Length Sachs Clutch Release Bearing 3151 000 157
92.5mm Length Sachs Clutch Release Bearing 3151 000 157
92.5mm Length Sachs Clutch Release Bearing 3151 000 157
92.5mm Length Sachs Clutch Release Bearing 3151 000 157
Specifications
Brand Name :
Meicely
Model Number :
3151 000 157
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
10-45 days
Packaging Details :
Carton Packing
OE No. :
3151 000 157
Category :
Clutch Release Bearing
Material :
Iron
Length :
92.5mm
Weight :
2.827kgs
Parameter :
KZIZ-5
ASIN :
B00DQGCS78
Stent Diameter :
127.9mm
Inner Diameter :
60.4mm
Max Length :
107mm
Warranty :
12 Months
HS Code :
8482102000
Description

Sachs Clutch Release Bearing 3151 000 157

Specification

Specification As Follows
OE No. 3151 000 157
Category Clutch Release Bearing
Material Iron
Length 92.5mm
Weight 2.827kgs
Parameter KZIZ-5
Stroke 4 Stroke
Normal Width 120mm
Stent Diameter 127.9mm
Inner Diameter 60.4mm
ASIN B00DQGCS78
HS Code 8482102000
Certificate ISO 9001
Warranty 12 Months

Description

Clutch release bearings are used in the part that transfers or shuts off the driving force.
When the driving force is shut off, the clutch release bearing is affected by a strong force from the high-speed rotating diaphragm spring, and starts to rotate suddenly. If there is a significant gap between the rotation centers of the diaphragm spring and the clutch release bearing, the contact surfaces are likely to generate heat and wear, and this greatly impacts the clutch function. Self-aligning clutch release bearings in particular can prevent this abnormal heat generation and wear.

If there is a significant gap between the rotation centers of the diaphragm spring and the clutch release bearing, self-aligning clutch release bearings prevent abnormal heat and wear. The centering mechanism between the sleeve and bearing absorbs the gap in the rotation center of the diaphragm spring at the start of the clutch release bearing's rotation, and after that, the rotation centers of both of them are aligned to suppress abnormal heat generation and wear on the contact surfaces.

Clutch release bearings that use steel plate presses for their bearing rings decrease the overall vehicle weight and contribute to lower fuel consumption.

Item OEM manufacturer auto clutch release bearing 3151 000 157
Parameter
  • Weight: 2.827kg
  • Max Length: 107mm
  • Length: 92.5mm
  • Parameter: KZIZ-5
  • Nominal Width: 120mm
  • Inner Diameter: 60.4mm
  • Stent Diameter: 127.9mm
ABS Sensor Non Integral Number of Splines
Package 1,barreled package+outer carton+pallets
2,plastic bag+single box+outer carton+pallets
3,tube package+middle box+outer carton+pallets
4, According to your's requirement
Quality Control We have a complete process for production and quality assurance to make sure our products can meet your requirement.
1.Assembly
2.Windage test
3.Cleaning
4.Rotary test
5.Greasing and gland
6.Noise inspection
7.Appearance inspection
8.Rust prevention
Other OE No.
Other OE No. As Follows
OE Number Other OE No.
3151 000 157 Clutch Release Bearing 1664358
3151 000 157 Clutch Release Bearing 3151273531
