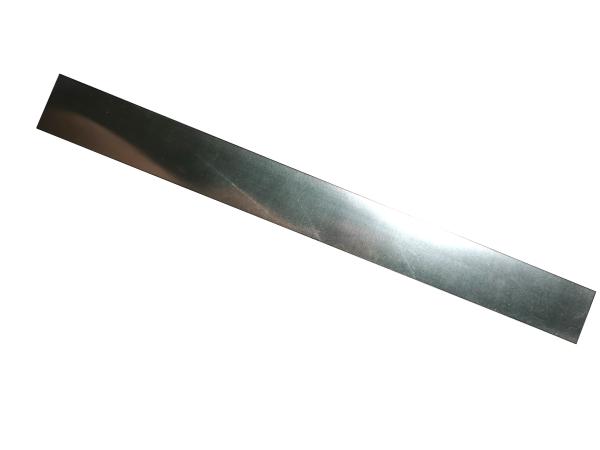

99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick
99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick
99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick
99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick
99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick
99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick
99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick
99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick
99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick
99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick
99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick
99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick
Specifications
Brand Name :
Achemetal
Model Number :
Mo1,TZM,MLa
Certification :
ISO, SGS
Place of Origin :
Luo yang，China
MOQ :
1Kg
Price :
55-85$
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000kg/per week
Delivery Time :
8work days
Packaging Details :
The carton packaging or Vaccum sealed in PE bag or Put in plywood case with polyfoam cushioning.
Shape: :
sheet/plate, sheet
Melting point: :
2610℃
type: :
molybdneum sheet price per kg
Purity: :
99.95% min
Application: :
Heating elements
Surface: :
chemical cleaned
Use temperature: :
1600-1800℃
Standard: :
ASTM B386-03,GB/T3876-83
application: :
molybdenum sheet for heat shield
Description

99.9% High Purity Molybdenum Alloy And Factory Price For Heat Shield Molybdenum Sheet

Overview

Quick Details

Place of Origin: Shaanxi, China Brand Name: Achemetal
Model Number: Mo1,TZM,MLa Application: Heating elements
Shape: sheet/plate, sheet Material: molybdenum
Chemical Composition: 99.95%Min Surface: chemical cleaned
Use temperature: 1600-1800℃ Melting point: 2610℃
Density: 10.2g/cm3 type: molybdneum sheet price per kg
Standard: ASTMB386-03,GB/T3876-83 Purity: 99.95% min
application: molybdenum sheet for heat shield key products: Molybdenum Sheet Price per kg for heat shield

Supply Ability

Packaging details:

1. The first layer: Wrap in kraft paper and waterproof paper

2.The second layer: Packed in standard export cartons and wooden boxes lined with high quality foam.
Port Beijing-Shanghai-Tianjin-Qingdao-etc

Quantity(kilograms)

1 – 100 101 – 300 301 – 500 >500Est

Time(days)

20 25 30 To be negotiated

Molybdenum Sheet Price per kg for heat shield

Product Name Molybdenum Sheet Price per kg for heat shield
Tensile strength 610 Mpa
Purity ≥99.95%
Size Thick 0.1mm min,Width 680mm max,Length3000mm max
Use temperature 1600°C
Highest temperature 1800°C
Quantitative analysis
Element Ni Mg Fe Pb Al Bi Si Cd Ca P
Concentration(%) 0.003 0.002 0.005 0.0001 0.002 0.0001 0.002 0.0001 0.002 0.001
Element C O N Sb Sn
Concentration(%) 0.01 0.003 0.003 0.0005 0.0001
Thickness(mm) tolerances(mm) width(mm) tolerances(mm) length(mm) tolerances(mm) flatness(%)
0.1mm ±0.01 600mm ±1mm 2000mm ±5mm < 2%
0.2mm ±0.02 600mm ±1mm 2000mm ±5mm < 2%
0.3mm ±0.02 600mm ±1mm 2000mm ±5mm < 2%
0.4mm ±0.03 600mm ±1mm 2000mm ±5mm < 2%
0.5mm ±0.03 600mm ±1mm 2000mm ±5mm < 2%
0.8mm ±0.05 600mm ±1mm 2000mm ±5mm < 2%
1mm ±0.06 600mm ±1mm 2000mm ±5mm < 2%
1.5mm ±0.06 600mm ±1mm 2000mm ±5mm < 2%
2mm ±0.06 600mm ±1mm 2000mm ±5mm < 2%
3mm ±0.2 500 ±1mm 500 ±2mm < 2%
4mm ±0.2 500 ±1mm 500 ±2mm < 2%

Applications:

Molybdenum sheet for heating elements and radiation shields and working racks for LED,Sapphire growing furnace,Electrodes for glass fiber,Insulation panels in high-temperature furnace.

Mo has a unique property of which it's melting point can reach 2610 in tungsten crucible is widely applied in high temperature vacuum furnace melting environment such as sapphire growing furnace, quartz glass melting furnace, and rare earth melting furnace. The working temperature of Mo sheet is above 1500. For sapphire crystal growing furnace, high purity, high density, no crack tungsten crucible with other features of exact measurement and smooth surface has decisive influence on the success of crystal growth, quality control of pulling crystal, discharging and service life during sapphire growing process.

We can produce many varieties of tungsten and molybdenum crucibles for single crystal growing process as a high temperature durability container in this application with its best properties.

Superiority:

-long term sock for your ready choice

-bright and chemically cleaned surface with quality

-uniform grain with densified microstructure ensures longer use time

-precise machining tolerance

-professional after -sales service

Production Flow

99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick
99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick

Texting equipment

99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick

Packing & Delivery

99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick

99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick

99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick

99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick

Company Profile

99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick

99.9% Purity Heat Shield Molybdenum Alloy Sheet 0.1mm-4mm Thick

FAQ

Q: What information should I let you know if i want to get a quotation?
A: The required material dimension (Thickness*Width*Length, diameter*length; if possible, please kindly supply us drawings).
The required items more information, such as Surface Condition, Tolerance Request, The Quantity, and other mechanical and technical details.

If it is possible, please also provide the application of products, we will recommend the most suitable products with details for confirmation.

Q: Do you inspect the finished products?
A: Yes. Each step of production and finished products will be carried out inspection by QC department before storing in the finished goods warehouse. NG goods are not allowed in the completed goods warehouse.

Q: Can you guarantee the prompt delivery?
A: Yes, Per our experience, when we get your inquiries, not only we will evaluate the more competitive price, but also we can get the most reasonable delivery time. So the prompt delivery can be guaranteed.

Q: What is the shipping cost?
A: The shipping cost is determained by the destination port, weight, packing size, total CBM of the products, we will try best to get the most reasonable shipping cost from the forwarders or express couriers to help you save more money.

Q: How about your payment terms?
A: We have flexible payment terms such as L/C; T/T; Western Union; D/P(Document Against Payment)
