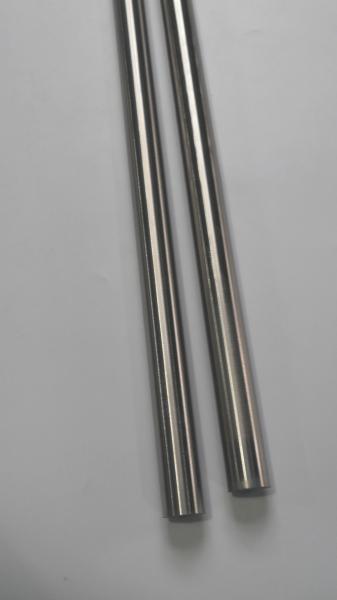

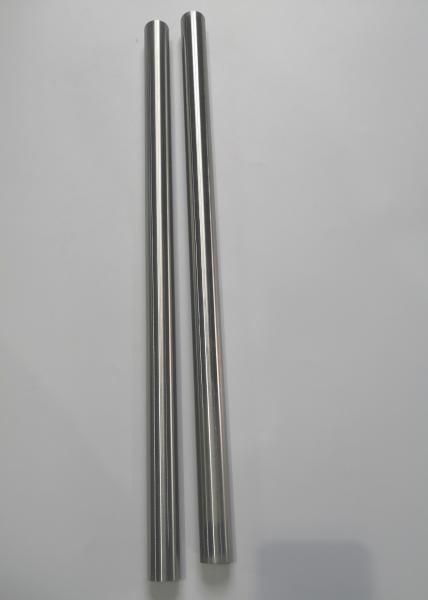

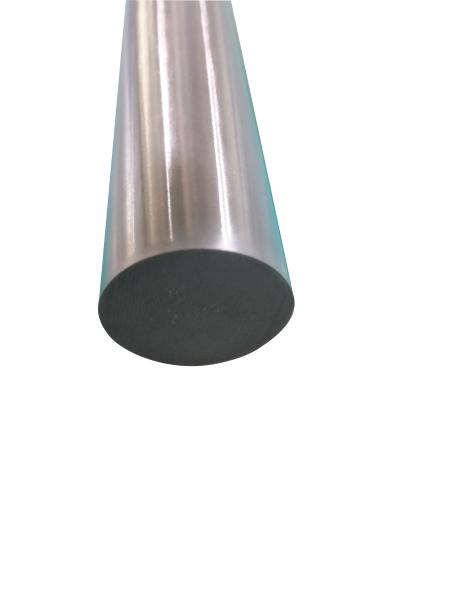

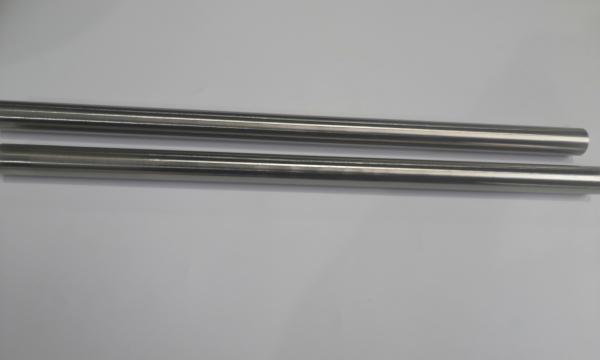

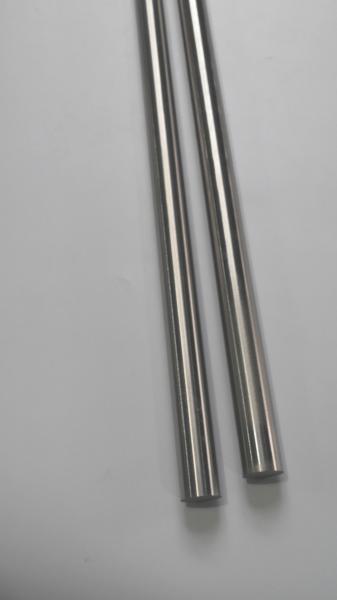

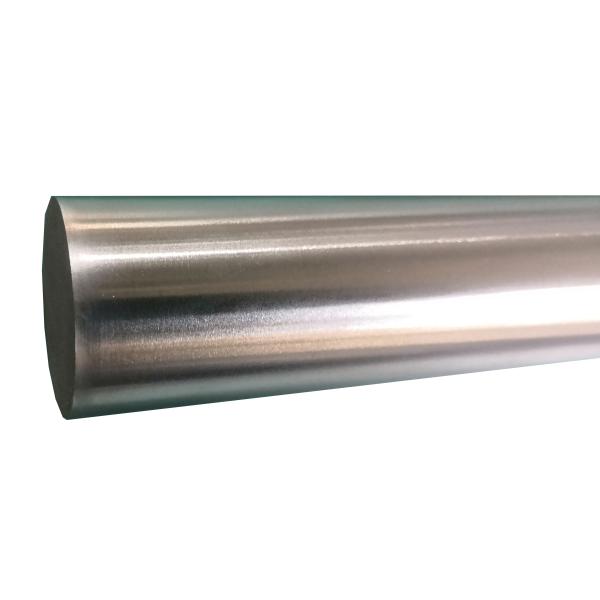

Purity 99.95% Tungsten Rod For Tungsten Products In Stock

Description

The forged products of Achemetal Tungsten & Molybdenum Co., Ltd. include tungsten, tungsten-lanthanum, tungsten-aluminum, tungsten-rhenium and other metals of which all the raw materials are high-purity powder,featuring less impurity content in bar blanks, high sintering density and large deformation of the forged finished products.We lay emphasis on the control over forging technologies in the machining process,

which is supplemented by an HIP process as necessary, to ensure the characteristics of high density, fine crystal grains and easy deep processing of products.Tungsten-molybdenum alloy forged products with high-density fine crystal grains have become a big feature of Achemetal products.According to different machining processes, tungsten bars have the conventional process density of 18.5 g/cm³ and the process density of more than 19.0 g/cm³ after HIP.

Classification

^A When specified by the purchaser, other hardness testing methods may be employed.

B For mechancially worked or aged material, the hardness can be as high as R_c46.

A ^{Determine with an extensometer accurate to 0.5% elongation or class.}

^{B Nonmagnetic composition to Classes 1,2and 3 shall be 94 ksi(648 MPa) miinimum ultimate tensile strength . Minimum alongation shall be 2% on Classes 1 and 2 and 1% on Class 3.}

Product specification

Product Application

The tungsten forged products are widely applied to the following fields through post processing:

• Tungsten electrodes,tungsten stirring bars and tungsten head pieces in the industries of quartz, glass smelting, aluminum silicate wool and rear earth smelting;
• Tungsten heavy hammers, tungsten connecting rods, tungsten wire ropes, tungsten screws/bolts and other fastenersin the monocrystalline silicon industry;
• Tungsten support pillars and tungsten trays/tungsten vertical pillars for sapphire crystal furnaces and other vacuum furnaces
• Tungsten rod heater and tungsten mesh heater for sapphire crystal furnaces and other vacuum furnaces
• Tungsten electrodesfor welding and multi-element tungsten electrodesfor rear earth,EDM electrodes
• Radiation shielding containers and so on for the nuclear industry,parts for radiotherapy containers and so onfor military, aerospace and medical treatment

Packaging and shipping Details:

1.inner packing: plastic foam bag;

2.outer packing: plywood case with strips;

3.We ship worldwide by EMS ,DHL ,UPS ,FedEx ,TNT and so on;

4.We shall be boxed, crated, banded on skids or bundled in such a manner as to assure safe delivery to its destination;
