SGS Industrial Vacuum Furnace Molybdenum Tungsten Heat Shield
SGS Industrial Vacuum Furnace Molybdenum Tungsten Heat Shield
SGS Industrial Vacuum Furnace Molybdenum Tungsten Heat Shield
SGS Industrial Vacuum Furnace Molybdenum Tungsten Heat Shield
SGS Industrial Vacuum Furnace Molybdenum Tungsten Heat Shield
SGS Industrial Vacuum Furnace Molybdenum Tungsten Heat Shield
SGS Industrial Vacuum Furnace Molybdenum Tungsten Heat Shield
SGS Industrial Vacuum Furnace Molybdenum Tungsten Heat Shield
SGS Industrial Vacuum Furnace Molybdenum Tungsten Heat Shield
SGS Industrial Vacuum Furnace Molybdenum Tungsten Heat Shield
SGS Industrial Vacuum Furnace Molybdenum Tungsten Heat Shield
SGS Industrial Vacuum Furnace Molybdenum Tungsten Heat Shield
Specifications
Brand Name :
Achemetal
Model Number :
customized
Certification :
ISO9001: 2008,;SGS
Place of Origin :
Luo yang，China
MOQ :
10kg
Price :
1-200$
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000kg/per week
Delivery Time :
15work days
Packaging Details :
The carton packaging or Vaccum sealed in PE bag or Put in plywood case with polyfoam cushioning.
Chemical Composition: :
Mo1 99.95%min
Material: :
Molybdenum,Pure Mo
Dimension: :
As user's demand
Appearance: :
Metallic silver luster
Surface: :
Shiny
Quality: :
High quality
Description

Vacuum Furnace Molybdenum/tungsten Heat Shield

Product Details

Overview

Quick Details

Place of Origin: Henan, China Brand Name: Achemetal
Model Number: Mo1 Dimensions: As user's demand
Material: Molybdenum,Pure Mo Chemical Composition: Mo1 99.95%min.
Grade: Mo1 Appearance: Metallic silver luster
Dimension: As user's demand Surface: Shiny
Application: industry Quality: High quality

Supply Ability

Supply Ability 1000 Piece/Pieces per Month Molybdenum Boat

Packaging & Delivery

Packaging Details Standard wooden case or as per customer's requirements
(Mo1 molybdenum bar molybdenum round bar for high temperature parts)
Port
Xi'an/Beijing/Tianjin/Shanghai/Guangdong
Lead Time
Quantity(kilograms) 1 - 50 51 - 200 201 - 500 >500
Est. Time(days) 10 15 25 To be negotiated

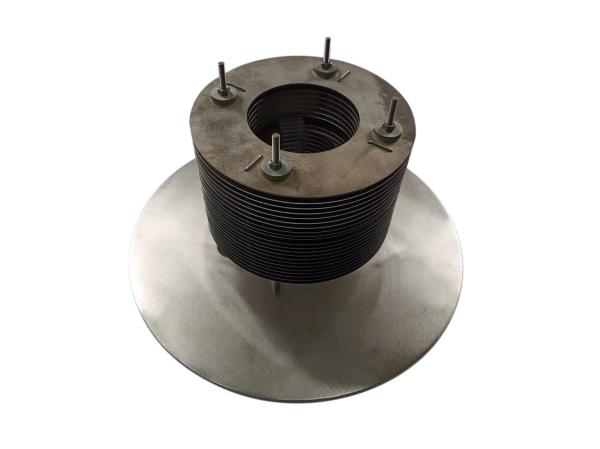

Molybdenum Heat Shield:

As thermal insulation components, molybdenum heat shield and molybdenum covers play a important role for heat blocking and reflecting in sapphire growth furnace. A high purity, precisely sized, smoothly clean, easy assembly and appropriately designed heat shield is significant for crystal pulling quality.

As the heat-shield parts in the sapphire growth furnace, the most decisive function of molybdenum reflection shield is to prevent and reflect the heat in the furnace. Heat-shield parts with high-density, exact-measurement, smooth-surface, convenient-assembly and reasonable-design has great significance in improving the crystal-pulling.

molybdenum heat shield Dimension (mm):

Molybdenum Cover Plates Molybdenum Heat Shield/ Single sheet
Sheet Thickness Dia (Max) Sheet Thickness Dia(Max) Height(Max)
2.0±0.1 660±0.2 2.0±0.1 450±2 660±1
1.0±0.08 660±0.2 1.0±0.08 610±2 660±1
0.5±0.04 660±0.2 0.5±0.04 700±2 660±1
0.3±0.03 660±0.2 0.3±0.03 700±2 660±1

molybdenum heat shield processes and quality control:

No. Processes Equipment Quality
1 Molybdenum sheet

1.Physical and chemical properties accordance with customer's specification

2.Correct size 3.Clean surface, no defect.
2 Inspection
3 Roll bending Asymmetric three-rollers plate bending machine Correct barrel height and diameter
4 Drilling and riveting CNC milling machine, bench driller Firmly riveting
5 Cleaning Surface clean and no defect
6 Inspection Correctly positioned assembly holes
7 Assembling Clean surface
8 Cleaning Correct barrel height and diameter
9 Inspection Firm assembly, no bond between layers
10 Packing Firm wooden case within quality certificate

tungsten Heat Shield,This is our tungsten Heat Shield,Chemical Composition consists of ninety nine point ninety five percent.As thermal insulation components, molybdenum heat shield and molybdenum covers play a important role for heat blocking and reflecting in sapphire growth furnace. A high purity, precisely sized, smoothly clean, easy assembly and appropriately designed heat shield is significant for crystal pulling quality.
