Weldable Tile Wear Resistant Alumina Ceramic Strips Lining
Weldable Tile Wear Resistant Alumina Ceramic Strips Lining
Weldable Tile Wear Resistant Alumina Ceramic Strips Lining
Weldable Tile Wear Resistant Alumina Ceramic Strips Lining
Weldable Tile Wear Resistant Alumina Ceramic Strips Lining
Weldable Tile Wear Resistant Alumina Ceramic Strips Lining
Weldable Tile Wear Resistant Alumina Ceramic Strips Lining
Weldable Tile Wear Resistant Alumina Ceramic Strips Lining
Specifications
Brand Name :
Mingrui
Model Number :
XF-593
Certification :
ISO2008, ROHS
Place of Origin :
Guangdong, China(mainland)
MOQ :
10PCS
Price :
USD3.13-21.06/PC
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000pcs per week
Delivery Time :
10-30 working days after receiving deposit
Packaging Details :
Packed in PP bag or sponge tray, then put in standard export carton packing, or OEM packing.
Product name :
Alumina Ceramic Strips
Material :
Alumina ceramic
Insulation breakdown strength :
15-18KV/mm, or customized
Highest application temperature :
2200 C, or customized
Bending strength :
300 MPA, or customized
Density :
3.9g/cm3 , or customized
Color :
White, yellow, or customized
Size :
Customized
Description


Alumina Strips Part 99% Alumina Weldable Tile Wear Resistant Ceramic Lining

Key words : Alumina Ceramic Strips

Alumina ceramic (Aluminum Oxide or Al2O3) is an excellent electrical insulator and one of the most widely used advanced ceramic materials. Additionally, it is extremely resistant to wear and corrosion. Alumina components are used in a wide range of applications such as electronics, pump components and automotive sensors.

Featurers

1. material: Alumina ceramic

2. method of moulding: thermal casting/drying press/extrusion

3. colour: white

4. sintering temperature: 1580℃

5. surface finish:Ra0.4 &SIM RA 0.8&mum etc, upon your requirement.

6. package: packing with carton and ship with wooden box.

7. we can produce them by your moulds or the drawings you require.

Weldable Tile Wear Resistant Alumina Ceramic Strips Lining


Properties sheet of alumina ceramic :

Properties Units 95 Alumina 99 Alumina
Density g / cm³ 3.65 3.92
Water absorption % 0 0
Coefficient of thermal expansion 10-6/K 7.9 8.5
Modulus of Elasticity Young's Mod GPa 280 340
Poisson's ratio / 0.21 0.22
HV Hardness HV MPa 1400 1650
Flexural Strength @ room temperature MPa 280 310
Flexural Strength @700°C MPa 220 230
Compressive Strength @ room temperature MPa 2000 2200
Fracture Toughness MPa *m 1/2 3.8 4.2
Heat conductivity @ room temperature W/ m*k 18-25 26-30
Electrical Resistivity @ room temperature Ω*mm2 /m >1015 >1016
Max use temperature °C 1500 1750
Resistance to acid alkaline / high high
Dielectric Constant / 9.5 9.8
Dielectric Strength KV/mm 16 22
Thermol Shock Resistance △ T ( °C ) 220 180-200
Tensile Strength @ 25 °C MPa 200 248

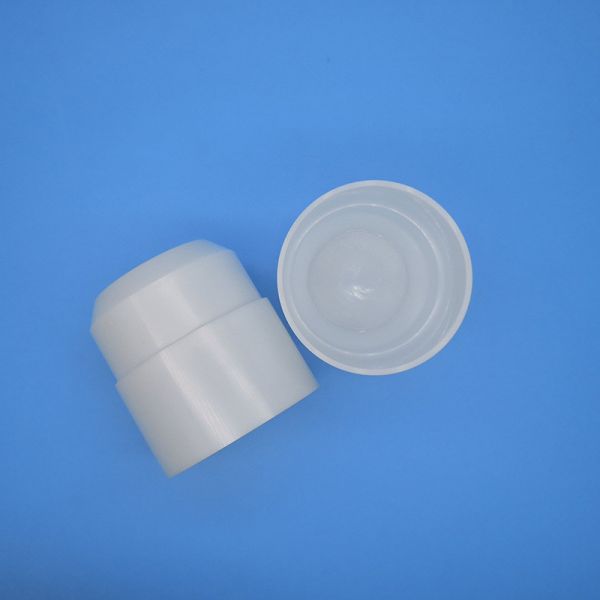

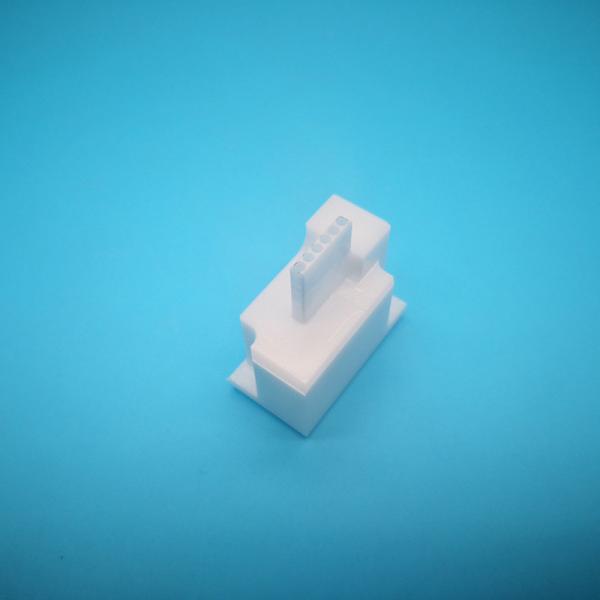

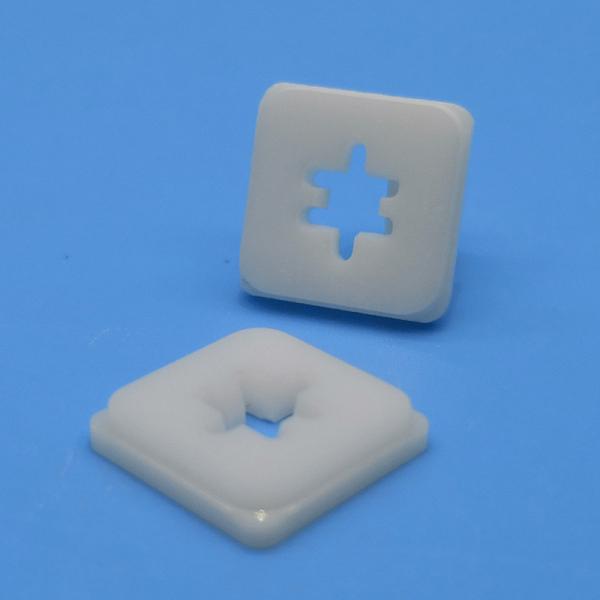

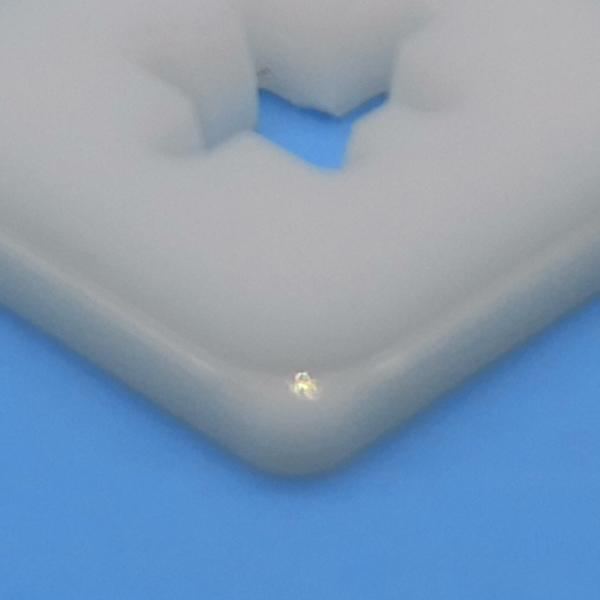

Product Photos Show


Weldable Tile Wear Resistant Alumina Ceramic Strips LiningWeldable Tile Wear Resistant Alumina Ceramic Strips LiningWeldable Tile Wear Resistant Alumina Ceramic Strips Lining

Packaging and Shipping

Packed in PP bag or sponge tray, then put in standard export carton packing, or OEM packing.
Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

Weldable Tile Wear Resistant Alumina Ceramic Strips Lining


Company information

Who Are We?

Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic parts.

What Do We Do?

We produce (OEM ) strengthened structure zirconia and alumina ceramic rod,tube, shaft, plate, sleeve, valve, plunger, bearing, nozzle and ceramic arm, they are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military, spaceflight and some other high-end fields.

All of our products with certificates, such as , CE, TUV, and so on.

Factory Show

Weldable Tile Wear Resistant Alumina Ceramic Strips LiningWeldable Tile Wear Resistant Alumina Ceramic Strips Lining

Production Process Show

Weldable Tile Wear Resistant Alumina Ceramic Strips Lining

Certificates Show

Weldable Tile Wear Resistant Alumina Ceramic Strips Lining
