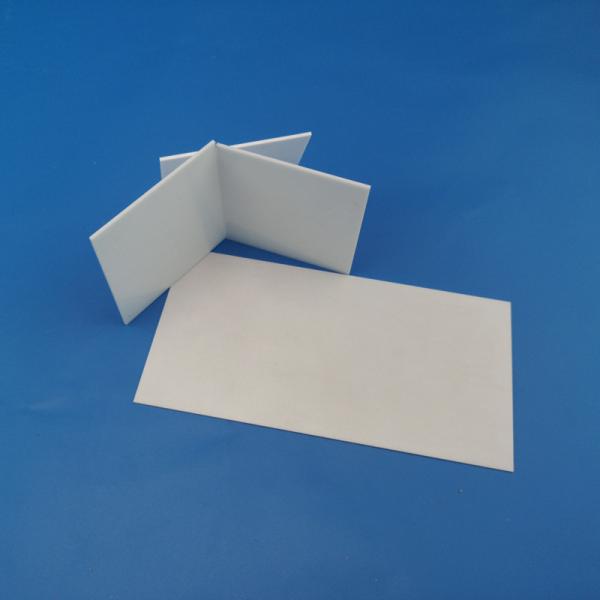

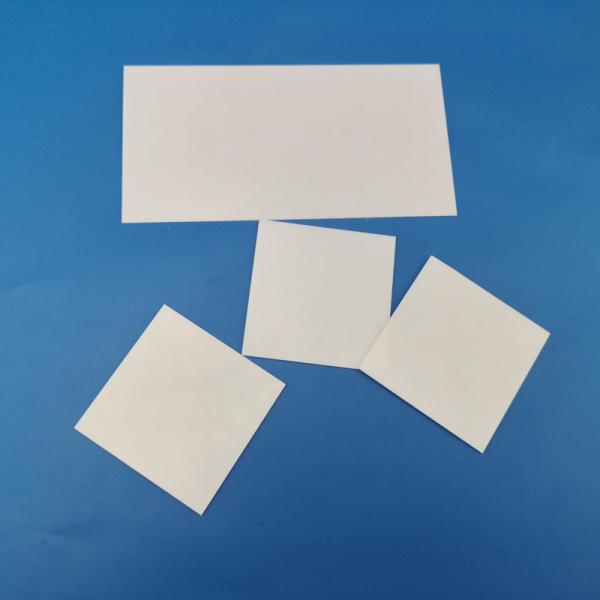

High Temperature Resistance Thermal Conductivity Alumina Ceramic Plate
High Temperature Resistance Thermal Conductivity Alumina Ceramic Plate
High Temperature Resistance Thermal Conductivity Alumina Ceramic Plate
High Temperature Resistance Thermal Conductivity Alumina Ceramic Plate
High Temperature Resistance Thermal Conductivity Alumina Ceramic Plate
High Temperature Resistance Thermal Conductivity Alumina Ceramic Plate
Specifications
Brand Name :
Mingrui
Model Number :
MR-IN-0674
Certification :
ISO9001
Place of Origin :
China
MOQ :
100 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
8000 pieces month
Delivery Time :
23 working days after the order confirmed
Packaging Details :
intertional carton box
Material :
alumina Ceramic
Surface :
Pulishing
Dimension :
according your request
technology :
machining
standard :
International Standard or as your request
MOQ :
5PCS
warranty :
2 years
Shipping :
DHL EMS UPS FEDEX TNT
Item :
High Temperature Refractory Custom Ceramic Parts Medical Equipment
OEM :
yes and
Description

Thermal Conductivity Mechanical Plate High Temperature Resistance Alumina Ceramic Plate

Alumina Ceramic (Aluminum Oxide or Al2O3) is an excellent electrical insulator and one of the most widely used advanced ceramic materials. Additionally, it is extremely resistant to wear and corrosion. Alumina components are used in a wide range of applications such as electronics, pump components and automotive sensors. us offers a variety of alumina compositions, including 92% Alumina, 95% Alumina, 96% Alumina, 99% Alumina, 99.5% Alumina and 99.8% Alumina, but the 95% Alumina and 99% are the most widely used materials. Alumina components can be formed by a variety of manufacturing techniques such as uniaxial pressing, isostatic pressing, injection molding and extrusion. Finishing can be accomplished by precision grinding and lapping, laser machining and a variety of other processes.

Feature:

  1. A variety of specifications available
  2. Satisfy various technical request
  3. Lower medium spoilage
  4. Good insulation performance and high temperature resistance
  5. Stiffness texture
  6. Used in all electric products, electric heating products and wear resistant machinery parts
Property Units
Al2O3 Content % 96 98 99.5 99.7
Density g / cm3 3.70 3.80 3.90 3.92
Color - White White Ivory Ivory
Compressive Strength @ 25 C Mpa 2229 2091 2512 2350
Tensile Strength @ 25 C MPa 200 200 248 252
Flexural Strength @ 25 C MPa 331 276 324 320
Elastic Modulus @ 25 C GPa 290 331 366 380
Hardness : Knoop Rockwell (Gpa) Kg/mm2
R45N		 (11.7) 1196
79		 (12.5) 1276
77		 (14) 1428
85		 (15) 1510 90
Thermal Conductivity @ 25 C W / m-Deg K 20.8 28.1

30.7

 31.6
Coefficient of Thermal Expansion @ 25-1000 C 1 X 10-6 /
Deg C		 7.9 8.5 8.1 8.0
Specific Heat @ 25 C cal / g / Deg C .184 .184 .182 .180
Maximum Working Temp. Deg C 1650 1650 1700 1700
VolumeResitivity @25C @700 C ohm-cm
ohm-cm		 1 X 10-13
1 X 10-8		 1X 10-13
2.2 X 10-9		 1 X 10-13
6 x 10-7		 1 X 10-13
6 x 10-7
Dielectric Strength
(@Thickness) 100Mils		 ac volts
per mil		 350
340		 335 330
Dielectric Constant 1Mhz
@25C		 e' / eo 8.6 9.4 9.7 10.0
Dissipation Factor 1 Mhz
@25C		 Tan Delta .0004

.0003

.0003

 .0002

High Temperature Resistance Thermal Conductivity Alumina Ceramic PlateHigh Temperature Resistance Thermal Conductivity Alumina Ceramic PlateHigh Temperature Resistance Thermal Conductivity Alumina Ceramic Plate

Company Introduction:
We ( Dongguan Mingrui Ceramic Technology Co., Ltd ) are a professional manufacturer specialized
in R&D, manufacturing and selling customized all kinds of high precision zirconia and alumina ceramic parts, ceramic thread tube . Our main products include ceramic rod , ceramic tube, ceramic plunger, ceramic valve, ceramic plate, ceramic shaft and bearing , ceramic nozzle etc , which are mainly used in industrial fields of Machinery, Petrochemical oil and gas, Valves, Automotive, Food Processing, Fluid Handling, Process Control, Thermal Processing, Aerospace, Defense, Eletronic and Electrical, Textile, Mechanical, Engineering, Mineral Processing, etc.
We have a full service include mold design and development , ceramic forming , precision machining
and precision detection technology. We have achieved great successes in particular requirements
which is based on cooperating with Tsinghua University and getting rich experience by our professional technical engineer teams . Our factory have an unique technical called mirror polishing which improve
our products more smooth , bright than other competitors.
High Temperature Resistance Thermal Conductivity Alumina Ceramic Plate

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng

Dongguan Mingrui Ceramic Tech. Co. Ltd.

Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,

Chang'an town, Dongguan city, Guangdong, China 523867

Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
