DIN 40680 Al2o3 Ceramic Plate 99.99% Alumina Ceramic Parts
DIN 40680 Al2o3 Ceramic Plate 99.99% Alumina Ceramic Parts
DIN 40680 Al2o3 Ceramic Plate 99.99% Alumina Ceramic Parts
DIN 40680 Al2o3 Ceramic Plate 99.99% Alumina Ceramic Parts
DIN 40680 Al2o3 Ceramic Plate 99.99% Alumina Ceramic Parts
DIN 40680 Al2o3 Ceramic Plate 99.99% Alumina Ceramic Parts
DIN 40680 Al2o3 Ceramic Plate 99.99% Alumina Ceramic Parts
DIN 40680 Al2o3 Ceramic Plate 99.99% Alumina Ceramic Parts
DIN 40680 Al2o3 Ceramic Plate 99.99% Alumina Ceramic Parts
DIN 40680 Al2o3 Ceramic Plate 99.99% Alumina Ceramic Parts
Specifications
Brand Name :
oem
Certification :
DIN43724/DIN43725/DIN40680
Place of Origin :
china
MOQ :
1 qty
Price :
dollar 2-6
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 per/month
Delivery Time :
5-8 working day
Packaging Details :
wooden box
Material :
95%-99.99% Alumina(Al2O3)
Features :
Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation...
Precision :
Ra 0.1um tolerance: 0.001mm... etc
Application :
Industrial Ceramic,Structure Ceramic,thermocouple protection tube,Wear resistant,Knitting Spare Part
Shape :
square,oval,rectangular,Round
Item :
Engineering ceramic parts,Alumina ceramic parts
Tolerance :
±0.05mm,can be polished,As customer's drawing
temperature :
Max 1800degree
Description

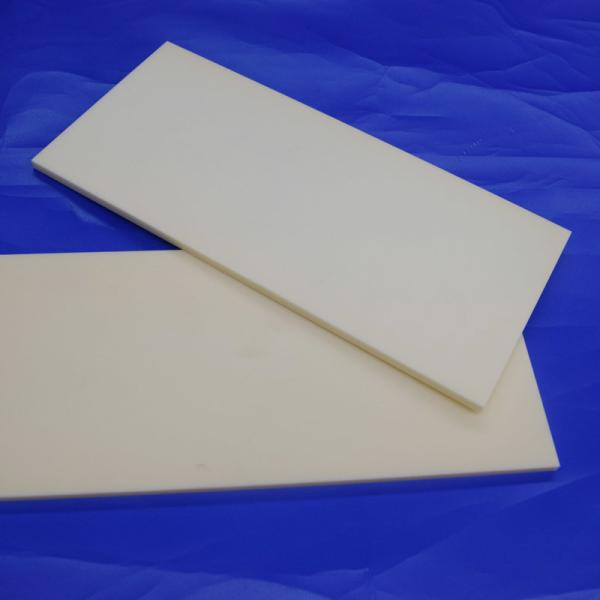

Alumina Ceramic Plate Max 1800degree High Temperature Resistance Heat Al2o3 Ceramic Plate Parts

zppd_Company_Profile-_Dongguan_Mingrui_Ceramic_1-a...

The high temperature ceramic have best heat properties for ceramic component parts.

Ceramic materials for ceramic components generally have high melting point (mostly above 1800℃) and excellent chemical stability and best insulation at high temperature.Ceramic thermal conductivity for ceramic parts is lower than metal materials, and a good thermal insulation material.At the same time, the linear expansion coefficient of ceramics is lower than that of metals. When the temperature changes, ceramics component parts have good dimensional stability.

DIN 40680 Al2o3 Ceramic Plate 99.99% Alumina Ceramic Parts

Do not find similar ceramic products on this page?

For more detail of ceramic products like price,shipping,samples...

Quick Free Quote . Our official E-mail: admin@cerampart.com(Mr admin).thanks

We are a ceramic plate parts manufacturer, we sales multi types of the high temperature ceramic plate parts. hot sizes in stock . and also can be customized for other szies and types.

Features

Alumina ceramic Screw advantages:
1. High purity:Good resistance of high temperature and abrasive.
2. Tight Tolerance. we can machine the alumina seal ring to make tight tolerance, good surface roughness and flatness.
3. Various processing methods, casting, preesing, grinding etc.
4. Competitive prices
5. Inspection: each single alumina ring will be checked before shipping.
6. Low transportation cost : We have long time cooperated shipping agency, which can provide very low prices.
If you need Alumina ceramic Screw, please let me know!


Item
Test the condition		 Unit 99 porcelain 95 porcelain 92 porcelain 75 porcelain

Material		 99%AL2O3 95%AL2O3 92%AL2O3 75%AL2O3
Physical property Density Normal atmospheric temperature g/cm3 4.02 3.7 3.4-3.7 3.2-3.4
Water Absorption Normal atmospheric temperature % 0 0 <0.5 <1

Refractoriness		 °C 1750 1650 1580 1360
Mechanical performance Rockwell hardness Normal atmospheric temperature Mohs 12 10 12 10
Flexural Strength Normal atmospheric temperature Mpa 330 300 290 380
Compression strength Normal atmospheric temperature Mpa 2800-3000 2500-2800 2500 2000
Hot performance Maximum Use Temperature °C 1700 1500 1500 1300
Heat resistant shaking 20O°C-1100O°C 10Num Pass Pass Pass Pass
Thermal Expansion Coefficient 20O°C-80O°C ×10-6mm/°C 6.4-8.2 5.5-7.5 7.0-7.6 7.3
Heat-conduction rate 25°C

300°C		 W/m.k 31.4 21.8 15-20 6-7
W/m.k 15.9 12.6

DIN 40680 Al2o3 Ceramic Plate 99.99% Alumina Ceramic PartsDIN 40680 Al2o3 Ceramic Plate 99.99% Alumina Ceramic PartsDIN 40680 Al2o3 Ceramic Plate 99.99% Alumina Ceramic Parts

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com


CEO: Admin deng
Dongguan Mingrui Ceramic Tech. Co. Ltd.
Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
Chang'an town, Dongguan city, Guangdong, China 523867
Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
